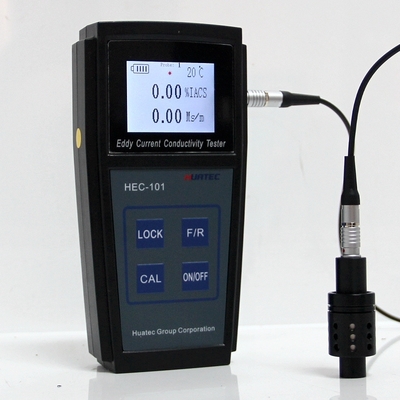

Eddy current testing equipment is a powerful tool for eddy current non-destructive testing (NDT). It is used for the detection of surface or near-surface defects in metal and non-metal materials. The eddy current testing equipment utilizes a high-pass filter of 0-500 Hz and a low-pass filter of 10-10000 Hz, with a digital range of 1-100. Its impedance display mode supports point, line, and auto modes. The real-time strip chart, impedance plane, and tube sheet display provide a comprehensive view of the test results. With a gain range of 0-90 dB in 0.5 dB steps, and gain ratio of 0.1-10, eddy current testing equipment is an ideal choice for eddy current instruments and portable eddy current flaw detectors.
| Parameter | Value |
|---|---|
| Calibration | Calibration on known flaws and automatic generation of calibration curve. Calibration data can be saved and simply called up when needed. |
| Operating Temperature | -20℃ to 55℃ |
| Screen Display | Real-time strip chart, impedance plane ,tube sheet display. |
| Phase | 0-359 in 0.1steps |
| Background Coordinate | Rectangular coordinate, polar coordinate |
| Machine size | 290mm x 210mm x 42.5mm |
| Drive Voltage Level | 1-8 levels |
| Probe Type | Differential, absolute, DP, encircling coil, pencil, flat, sector, array etc. |
| Machine weight | 2.0kg |
| Gain | 0-90 DB in 0.5 DB steps. |
Brand Name: HUATEC
Model Number: HEF-C35RFT
Place of Origin: China
Certification: CE
Minimum Order Quantity: 1pc
Packaging Details: Standard carton
Delivery Time: 5 days
Payment Terms: T/T L/C
Supply Ability: 100pcs per month
Alarm Output: One Hardware Alarm Output With Triode OC Gate
Gain Ratio (Y/: 0.1-10
Operating Temperature: -20℃ To 55℃
Gain: 0-90 DB In O.5 DB Steps
Standards: ASTM,JB/T4730.6-2005,DLT 883-2004 Etc.
HUATEC's eddy current machine is an advanced eddy current flaw detector for industrial applications. This portable eddy current flaw detector has a wide range of features, such as one hardware alarm output with triode OC gate, gain ratio (Y/X) 0.1 to 10, gain 0 to 90 dB in 0.5 dB steps, operating temperature -20°C to 55°C, and many more. Additionally, it meets various standards like ASTM, JB/T4730.6-2005, DLT 883-2004 etc.
We provide technical support and service for our Eddy Current Testing Equipment. Our team of experienced engineers and technicians can assist you with any questions or issues you may have, such as:
We also offer training and certification programs to help you learn how to use and maintain your Eddy Current Testing Equipment. Contact us today for more information.
The Eddy Current Testing Equipment is safely shipped in a box that is wrapped in bubble wrap for protection. The box also includes a foam insert to protect the equipment from damage. All of the equipment is securely fastened to the box with cables or straps to ensure that it does not move during shipping. The box is then placed in a larger box with protective packaging material such as Styrofoam, and is sealed with packing tape.
The box is labeled with the correct shipping address, the sender's address, and a brief description of the contents. It is also marked with the appropriate shipping code so that it can be tracked and traced during transit. Once the package is ready, it is placed in the appropriate shipping container and handed off to the shipping carrier.
