Eddy Current Testing Equipment is a reliable eddy current flaw detector and inspection equipment that is designed for accurate and efficient eddy current testing. It is equipped with advanced eddy current test technology, advanced impedance display mode, and adjustable gain settings, making it an ideal choice for a variety of applications.
The eddy current testing equipment is an easy-to-use system that features tube sheet mapping that draws according to real tube layout, and testing result is marked in different colors. The wide range of probe types includes differential, absolute, DP, encircling coil, pencil, flat, sector, and array. It also has a machine size of 290mm x 210mm x 42.5mm and adjustable gain settings from 0-90 DB in 0.5 DB steps.
The eddy current testing equipment is an ideal choice for applications such as non-destructive testing, aerospace, automotive, and other industrial applications. It is also suitable for tests of thin walled tubes, pipes, and other materials. It can be used to detect a wide range of defects, including surface, subsurface, and transverse defects.
With its advanced features, reliable performance, and efficient operation, the eddy current testing equipment is the perfect solution for any eddy current testing needs. It is a great choice for non-destructive testing and other industrial applications, allowing users to accurately and efficiently detect defects and improve the quality of their products.
| Product Name | Eddy Current Testing Equipment |
|---|---|
| Probe Type | Differential, Absolute,DP, Encircling Coil, Pencil,flat,sector, Array Etc |
| Report | Automatic Generation Of Report In Different Format |
| Phase | 0-359 In 0.1steps |
| Standards | ASTM,JB/T4730.6-2005,DLT 883-2004 Etc. |
| Drive Voltage Level | 1-8 Levels |
| Machine weight | 2.0kg |
| Operating Temperature | -20℃ To 55℃ |
| Background Coordinate | Rectangular Coordinate, Polar Coordinate |
| Impedance Display Mode | Point, Line, Auto |

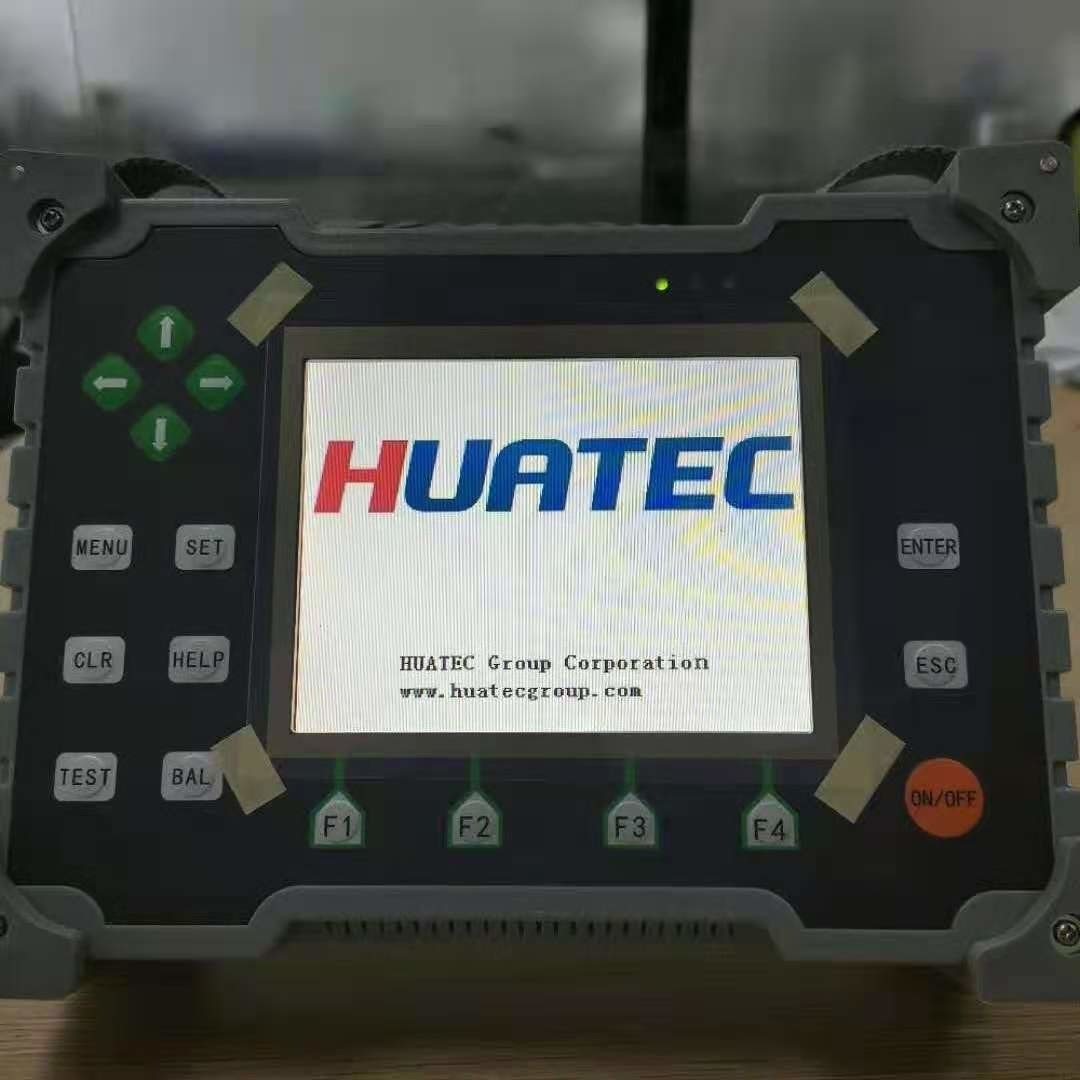

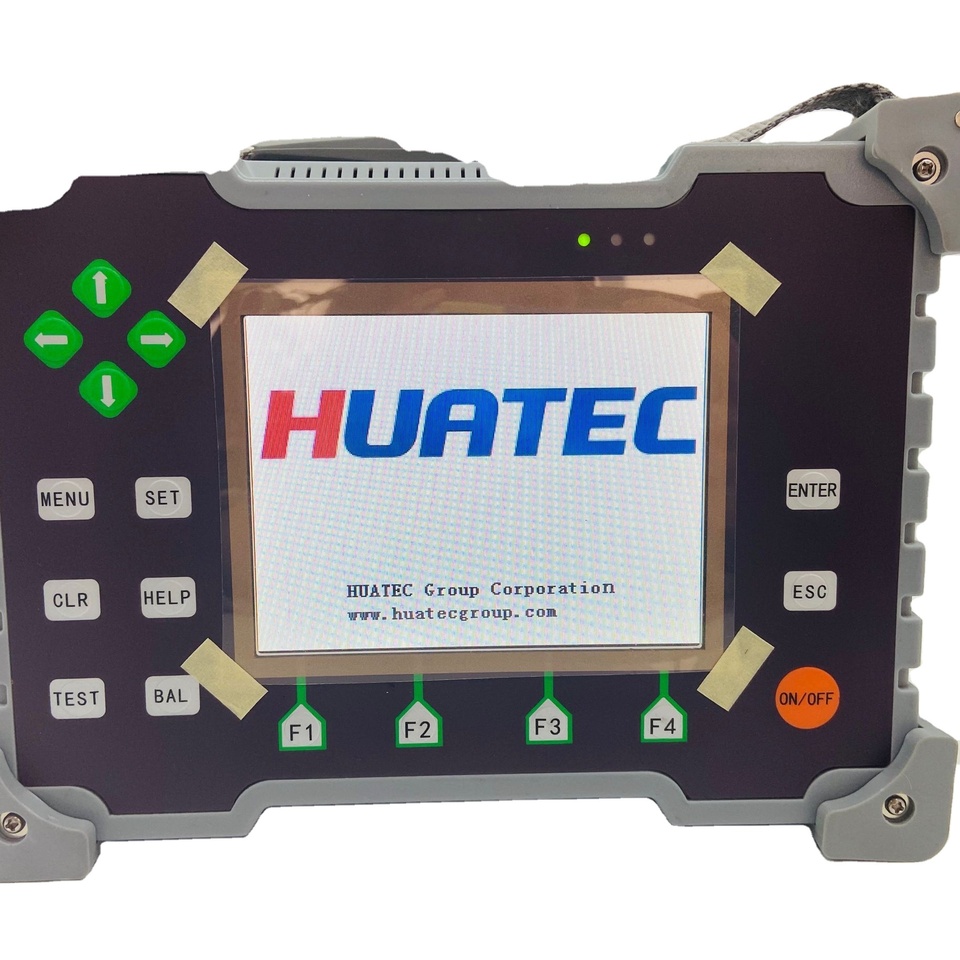

HUATEC HEF-C35RFT Eddy Current Testing Equipment is a professional device for non-destructive testing. It is widely used in aviation, aerospace, automobile, chemical, energy, and other industries for eddy current testing. It features high accuracy, fast balance, wide frequency range, a rectangular coordinate system and polar coordinate system, and more. The device offers 0-90 DB in 0.5 DB steps gain with fast digital/analog electronic balance. It is CE certified and can be purchased in minimum quantity of 1pc with standard carton packaging. The delivery time is 5 days and payment terms are T/T or L/C. The supply ability is 100pcs per month and the operating temperature range is -20℃ to 55℃. This Eddy Current Testing Equipment from HUATEC is the perfect choice for reliable eddy current testing, flaw detection, and other related applications.
This portable eddy current flaw detector is ideal for industrial applications such as industrial machinery, automotive components, aerospace components, and more. It provides reliable and accurate eddy current testing results in the most challenging environments. It is easy to use and features a highly intuitive user interface. The device can be used to detect flaws, corrosion, cracks, or other anomalies in a variety of materials such as metals, plastics, and composites. It is suitable for a wide range of applications such as nondestructive testing, material sorting, and weld inspection. This eddy current machine is an excellent choice for eddy current instruments and other eddy current testing requirements.
Brand Name: HUATEC
Model Number: HEF-C35RFT
Place of Origin: China
Certification: CE
Minimum Order Quantity: 1pc
Packaging Details: Standard carton
Delivery Time: 5 days
Payment Terms: T/T L/C
Supply Ability: 100pcs per month
Frequency: 2 Frequencies Per Channel With 64Hz-5MHz For ECT,5Hz-5KHz For RFT
Filter: High Pass:0-500Hz Low Pass:10-10000 Hz Digital1-100
Operating Temperature: -20℃ To 55℃
Battery: Built-in Lithium Battery (14.8V,5.7AH),long Working Time Of 10 Hours After One Time Charge
Mixing Unit: Mixing Unit To Suppress Noise Signal At A Constant Frequency
HUATEC's eddy current testing equipment is ideal for eddy current ndt, eddy current test, portable eddy current flaw detector, eddy current flaw detector and eddy current testing.
We provide comprehensive technical support and service for our Eddy Current Testing Equipment. Our team of experienced technical staff is available to answer any questions you may have, provide advice on product selection, and help troubleshoot any issues you may be having. We also offer a variety of training programs to ensure that you have the skills and knowledge you need to get the most out of our products.
We keep a comprehensive inventory of replacement parts and supplies on hand, so if you experience any issues with your Eddy Current Testing Equipment, we can quickly provide you with the parts you need to get it back up and running. We also offer maintenance and repair services to ensure that your equipment is always in top condition.
Our commitment to customer service doesn't end when you purchase our products. We are here to help you every step of the way, from installation to use and beyond.
