Eddy Current Metal Testing Equipment Fully Automatic Instrument Simple Operation

1pcs
MOQ
Eddy Current Metal Testing Equipment Fully Automatic Instrument Simple Operation
Features Gallery Product Description Request A Quote
Features
Specifications
Measurement Technology: Eddy Current
Measuring Range: Resistivity:0.01µΩ•m~2.5µΩ•m,Conductivity:0.4MS/m~100MS/m 0.69%IACS~172%IACS,Resistance:0.1µΩ~150Ω
Display: Liquid Crystal Big Screen, Back-light Designed
Size: 285(W)*158(H)*120(D) Mm
Weight: Host:2.2kg Portable Measuring Fixture:1kg
Memory: 1000 Groups
Display Unit: µΩ•m, µΩ And %IACS
Battery: 7Ah/7.4V Lithium Ion Battery Of 2200mA/h
Interface Port: RS 232 Interface
High Light:

eddy current testing machine

,

magnetic flaw detector

Basic Infomation
Place of Origin: Beijing
Brand Name: HUATEC
Certification: ISO, CE, GOST
Model Number: HEC-106
Payment & Shipping Terms
Packaging Details: Standard export package
Delivery Time: 1-4days
Payment Terms: T/T, Paypal, Western Union
Supply Ability: 500pcs per month
Product Description

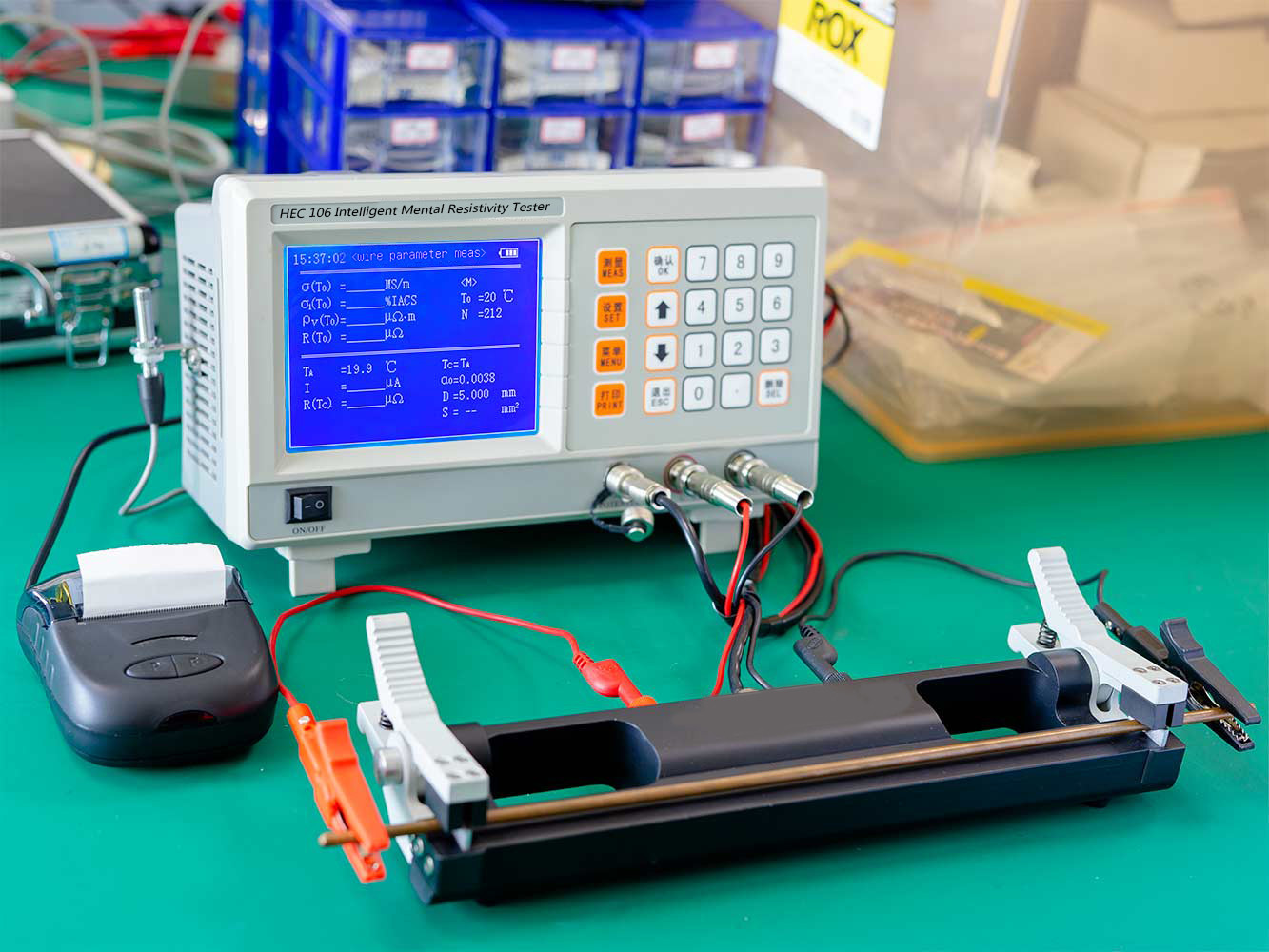

Intelligent Metal Foil Resistivity & Resistance and Conductivity Measuring Instrument



1. Overview

HEC-106, A intelligent metal foil resistivity measuring meter is a patented product of our company. It is the only portable and fully automatic instrument in the world, for measuring resistivity and conductivity of metal foil and thin metal belt. The design of the high-tech products adopts current-voltage four-terminal measuring method, advanced electronic techniques, singlechip technique and automatic detection technology. The performances completely accord with the technical requirements of GB/T22638.6-2016. It can be widely applied in the fields of metal foil, thin metal belt, new energy fields such as battery tab, electricity electrician, electrical motor, colleagues and research institutes, etc.

2. Main features of the instrument

Used for measuring the resistivity of metal foil, thin metal belt, room temperature DC resistance at standard size.

  • Combining advanced electronic, singlechip and automatic measurement techniques in one instrument, with superior automatic functions and simple operation.
  • All measured numerical values can be obtained by just one press on the key without any calculation. The instrument is adequate for continuous, fast and accurate measurements.
  • Battery power supply has small size thus easy to carry, suitable for indoor and open-field use.
  • With large screen and font. Can display measured values and auxiliary parameters at the same time, including resistivity, room temperature DC resistance at standard size, resistance, temperature, measuring current and temperature compensation coefficient.
  • One instrument has multiple applications, and has two measurement interfaces: metal foil room resistivity measurement interface and DC resistance measurement interface.
  • The functions of automatic constant current selection, automatic current reversal, automatic zero point correction and overcome the error caused by thermal voltage to line resistance and ensure the accuracy of each measurement.

▶ The instrument comes with the temperature sensor of the environment and the temperature coefficient of various materials, and the temperature is automatically compensated.



▶ Optional series of calibration resistor, with related software, to realize automatic calibration of the instrument.



  • Special portable four-terminal measuring fixture is suitable for fast measurements of different foil and belt material.
  • The build-in data accumulator can record and save 1000 groups of measuring data and parameters. Connecting it to the host computer, the complete report can be generated.

3. HEC-106 Main Parameters

Parameter

Item

Resistivity Conductivity Resistance
Measuring range 0.01µΩ·m~2.5µΩ·m

0.4MS/m~100MS/m

0.69%IACS~172%IACS

0.1µΩ~150Ω
Resolution 104~106µΩ·m 0.01~0.001%IACS 0.1µΩ(I=1A)
Precision ±0.25% ±0.25% 100µΩ~150Ω:±0.15%
Temperature measurement -10℃~+55℃ Precision ±0.2℃(0℃~+40℃)
Internal constant current of the instrument 16µA level~1A level(automatic selection according to the measuring requirement)
measuring fixture with HJ-300(300mm) portable testing fixture for Dia.0.1mm-10mm wire or rod.measure strip-type metal foil and thin metal belt
Automatic temperature compensation The measured value will be automatically compensated to the value at 20℃.
measuring items room temperature DC resistance at standard size R’(T0),resistivity ρv,room temperature resistance R(T0),resistance R
Printout data Date, time, temperature correction coefficient α and various measurements values of metal foil
Normal working environment Temperature: 0℃~+40℃; relative humidity: 0~80%
Display Large LCD screen with backlight, can display multiple measuring parameters at the same time.

Power supply



7Ah/7.4V chargeable lithium battery; battery power supply only, average working hour over 15 hours
Internal memory Can save 1000 groups of measured data.
PC communication mode RS232 serial port
Weight Host:2.2kg Portable measuring fixture:1kg
Host size 285(W)*158(H)*120(D)
Host shell Shock-resistance engineering plastic
Packaging and protection Containing the host, measuring fixture HJ-300 (300mm, Dia.0.1mm-10mm wire or rod), charger, communication cable, calibration resistor, operation manual and mini-printer.



































































































Optional accessories:

Calibration standard resistance:1mΩ, 10mΩ, 100mΩ, 1Ω, 1mΩ, 10Ω, 100Ω
