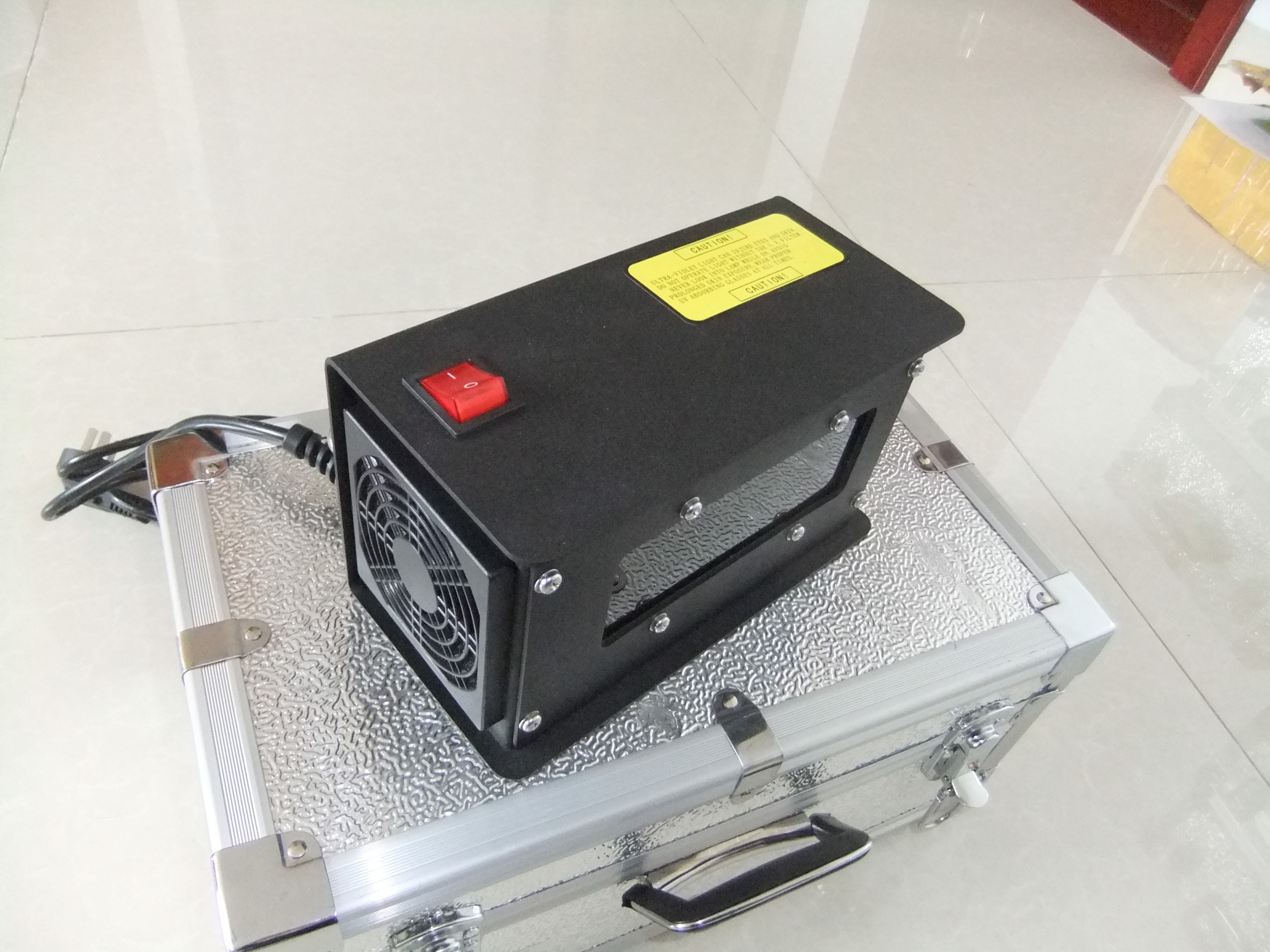

Suspension Ultraviolet Lamp Flaw Detector Magnetic Particle Testing DG - 24W
Characteristic
Big area UV light source, Irradiance>6000uw/cm2
temperature rises less than 8℃
Light source life 30000H
Feature:
24VA power saving of power consumption
30000H life expectancy of light source
UV-A Irradiance>6000uw/cm2
White light Irradiance<22LUX
Chip is original import
0 UV-B/UV-C contained
Small size, Convenient to install
Continuous operation and external surface temperature rises less than 8 celsius
No need to preheat,instant to reach 100% power
UV irradiance intensity distribution diagram 380mm location
Dimension: (mm)
Technical Parameters
| Itme | parameter |
| Style | Suspension |
|
UV-FLUX Indoor temperature 25℃ 380mm location |
>6000uW/cm2 |
| wave length |
Indoor temperature 25℃ 365nm±3nm(UVA) |
| White light content | <22Lux |
| FLUX error | 0-40℃ ±10% |
| Grading feature | Centre grading |
| Power supply | AC220-240V 50/60Hz |
| Power | UV LED -24 VA |
| Outline dimension | 220mm(W)*120mm(D)*140mm(H) |
| Weight | 3.6kgs |
Standard accessories:
1.Main unit 1pc
2.Carrying case 1pc
3.Calibration certificate 1pc
4.Manual 1pc
