Black Handheld Ultraviolet Lamp , LED UV Light handheld uv light liquid penetrant testing equipment

1pcs
MOQ
Black Handheld Ultraviolet Lamp , LED UV Light handheld uv light liquid penetrant testing equipment
Features Gallery Product Description Request A Quote
Features
Specifications
Color: Black
High Light:

magnetic flaw detector

,

magnetic strenght meter

Basic Infomation
Place of Origin: Beijing
Brand Name: HUATEC
Certification: ISO, CE, GOST
Model Number: DG-9W
Payment & Shipping Terms
Packaging Details: Standard export package
Delivery Time: 1-4days
Payment Terms: T/T, Paypal, Western Union
Supply Ability: 500pcs per month
Product Description

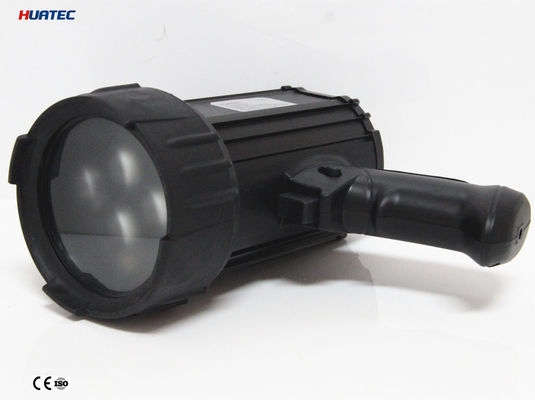

Black Handheld Ultraviolet Lamp , LED UV Light handheld uv light liquid penetrant testing equipment



UV LIGHT Magnetic Strength Meter Lightweight Portable

Handheld Ultraviolet Lamp Magnetic Flaw Detector Testing LED Charging UV Light DG-9W



Characteristic

Irradiance>7000uw/cm2

Internal batteries

Pre-alert and protection of low power

Light source life 30000H



Feature:

9av power saving of power consumption

30000H life expectancy of light source

Imported light source UVLED

0 UV-B contained

Battery endurance 5-6hrs

Pre-alert and protection of low power

Weight 1kg only including batteries

Build in battery,no wiring outside

Three minute delay(power saving)//constand lighting,mode can be switched

Quartz and optical glass module, not PMMA material,excellent weather resistance

Continuous operation and external surface temperature rises less than 5 celsius

No need to preheat,instant to reach 100% power

With UV and white light dual function,one hand switch.



UV irradiance intensity distribution diagram



Black Handheld Ultraviolet Lamp , LED UV Light handheld uv light liquid penetrant testing equipment 0

Dimension: (mm)



Black Handheld Ultraviolet Lamp , LED UV Light handheld uv light liquid penetrant testing equipment 1



Technical Parameters

Itme parameter
Style handheld

UV(Light)-FLUX

Indoor temperature 25℃

UV-MAX7000uW/cm2 Light-MAX1500LUX
Grading feature Centre grading
Power supply AC100-240V 50/60Hz
power UV LED-9VA Light-3VA
wave length

Indoor temperature 25℃

365nm±3nm(UVA)

Outline dimension 203mm(W)*110MM(D)*220mm(H)
Weight 1kgs
battery capacity 5800mA/H 12.6V
Charging time 4-5H
Battery cumulative time UV LED 5-6H or Light 16H





Black Handheld Ultraviolet Lamp , LED UV Light handheld uv light liquid penetrant testing equipment 2Black Handheld Ultraviolet Lamp , LED UV Light handheld uv light liquid penetrant testing equipment 3



Standard accessories:

1.Main unit 1pc

2.Carrying case 1pc

3.Calibration certificate 1pc

4.Manual 1pc

5.Rechargeable battery with adapter
