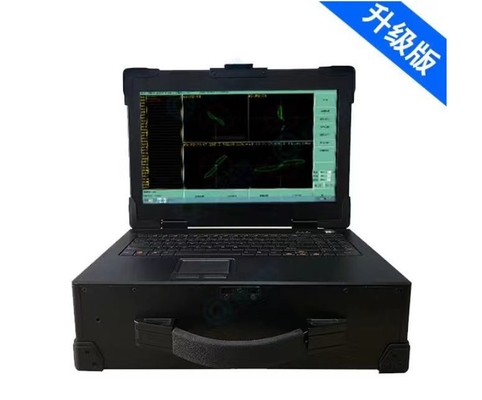

HEF-24ET Multi-Frequency Eddy Current Flaw Detector for Boiler Tubes & Heat Exchangers

The HEF-24ET is an intelligent multi-frequency eddy current detector representing the latest generation of nondestructive testing equipment. Incorporating advanced digital electronics, multi-frequency eddy current technology, and microprocessor technology, it enables real-time detection of inner and outer wall cracks in both ferromagnetic and non-ferromagnetic metal pipes.

This comprehensive eddy current testing system combines regular frequency and multi-channel capabilities into a high-performance, multi-purpose intelligent system. With multiple independent test channels, it captures both absolute and differential eddy current signals across a broad frequency range (50Hz to 10MHz).

• Multiple independent testing channels (up to four frequency mixing units)
• Advanced signal processing with weak signal amplification and strong anti-interference capability
• Through-type probe design for high sensitivity detection of pipe wall defects
• Automatic detection with high sensitivity and stable performance
• Multiple testing procedures and multi-window display modes
• Fully digital design with standardized testing procedures
• Supports both English and Chinese operation with online help
• Compatible with various probe types (through-type, interpolation, flat, point, rotating)
• Mass storage for test procedures and data
• Optional data analysis system

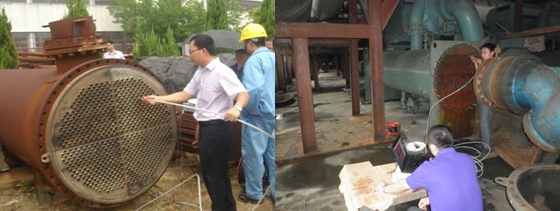

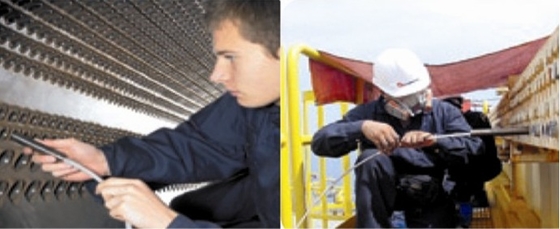

Ideal for nuclear energy, power generation, petrochemical, aerospace, and aviation industries. Suitable for in-service testing of copper, titanium, aluminum, zirconium pipes and various metal components. Effective for flaw detection and wall thickness measurement in ferromagnetic pipelines including:

• Boiler tubes

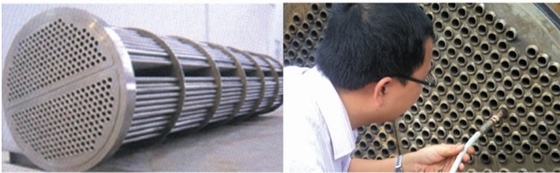

• Heat exchanger tube bundles
• Underground pipes
• Cast iron pipes

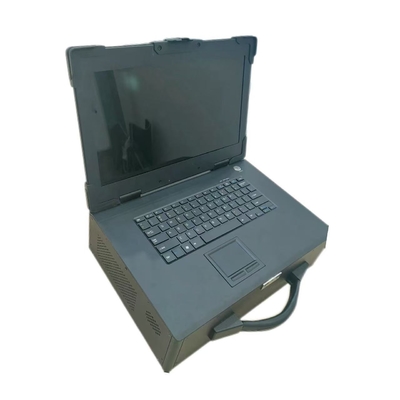

• Main unit HEF-24ET
• Bobbin probe with 2 meters cable
• Battery charger
• English operation manual
• HUATEC calibration certificate

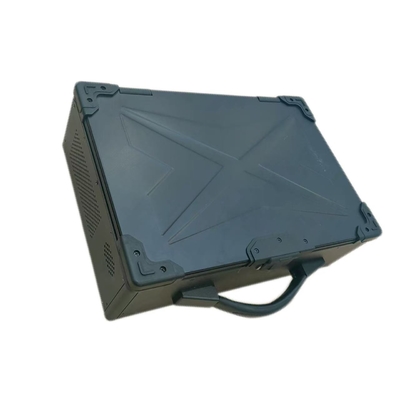

• Carrying case

• Bobbin ECT-standard probes in various sizes (Ø9mm, Ø10.8mm, Ø15mm, Ø21mm)
• Calibration blocks in carbon steel, stainless steel, copper etc.
• Custom-sized probes available upon request
