Overlap And Butt Weld Of Tank Bottom Leak Detection System Of Vacuum Box Weld

10pcs
MOQ
Overlap And Butt Weld Of Tank Bottom Leak Detection System Of Vacuum Box Weld
Features Gallery Product Description Request A Quote
Features
Specifications
Application: Circumferential Weld (fillet Weld)
Size: L660*W310*H380mm
Vacuum Degree: 20Hd
Weight: 8.95kgs
Weld Detection Length: 400mm
Tank Diameter: ≧5 Meter
Lighting System: LED
Product Name: Vacuum Box Tank Leakage Detector
High Light:

huatec leak detection system

,

vacuum box weld leak detection system

Basic Infomation
Place of Origin: Beijing
Brand Name: HUATEC
Certification: ISO, CE, GOST
Model Number: HC1400
Payment & Shipping Terms
Packaging Details: Standard export package
Delivery Time: 1-4days
Payment Terms: T/T, Paypal, Western Union
Supply Ability: 500pcs per month
Product Description

Overlap And Butt Weld Of Tank Bottom Leak Detection System Of Vacuum Box Weld



1, Product introduction



In order to improve the overall inspection of oil storage tank, our company has specially designed and developed a series of vacuum tank detection systems for the detection of leakage of welds on the bottom plate of oil storage tank.



The standard, portable vacuum tank detection system can detect the lap/butt weld on the bottom plate of any size of storage tank, and the circumferential weld (fillet weld) on the bottom plate of storage tank with a diameter of more than 5 meters. For the integrity evaluation of various welds, our vacuum box detection system is an efficient, fast and economical detection method, and the detection rate of penetrating corrosion/pinholes is not less than 95%.



2. Technical Parameter

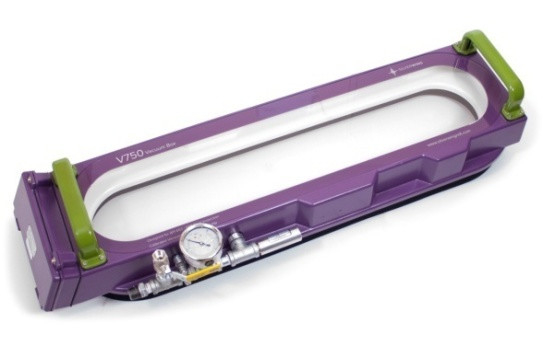

  HV1800F-LED Vacuum box HC1400-LED Vacuum box
Size L936*W318*H187mm L660*W310*H380mm
Weight 11kg 8.95Kg
vacuum degree 20inch Hg 20inch Hg
Weld detection length 750mm 400mm
Inspection weld type Overlap and butt weld of tank bottom

Circumferential weld (fillet weld)



Tank diameter Can be applied to tanks of all diameters ≧5 meter
Lighting system LED lighting system LED lighting system
Vacuum pump
Power Supply It can be connected to mains or powered by lithium battery
Cable length 10m
Robot system (optional)
Function The robot loads a vacuum pump, which can be powered by batteries



Overlap And Butt Weld Of Tank Bottom Leak Detection System Of Vacuum Box Weld 0

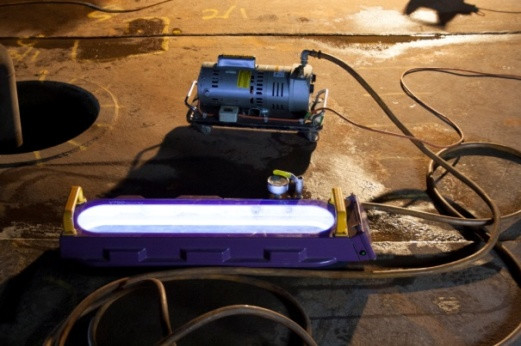

Vacuum pump photo
