Intelligent three angle 0.4Gs / 30min gloss meter HGM-BZ206085 for non - metalic coatings

1pcs
MOQ
Intelligent three angle 0.4Gs / 30min gloss meter HGM-BZ206085 for non - metalic coatings
Features Gallery Product Description Request A Quote
Features
Specifications
Material: ABS
Angles: 20,60,85 Degrees
High Light:

gloss measurement

,

digital gloss

Basic Infomation
Place of Origin: Beijing
Brand Name: HUATEC
Certification: ISO, CE, GOST
Model Number: HGM-BZ206085
Payment & Shipping Terms
Packaging Details: Standard export package
Delivery Time: 1-4days
Payment Terms: T/T, Paypal, Western Union
Supply Ability: 500pcs per month
Product Description

Gloss Meter Model HGM-BZ206085 Intelligent three angle gloss meter



Standard



International standard ISO2813, ASTM-D2457, DIN67530 and China standard GB9754, GB9966, GB8807.

The technical parameters follows China metrology standard JJG696-2002.



Application


1.Measurement  of  the  gloss  of  all  kinds  of  non-metalic  coatings.
2.Measurement  of  the  surface  gloss  of  the  non-metallic  decorative  material.
Monolithic integrated circuit control circuit, new pressed key operation, dexterous portable, only needs a calibration, the intelligent record calibration value, cuts the angle not to need directly to calibrate.

Features


1. Small and light, real easy to be carried and used.
2. One 1.5 mignon alkaline Battery can be used for almost 60 hours and 10000 reading.
3. High stability
4. Long-term stable light source needs no replacing for ever.
5. Quartz crystal standard board, no excursion.

Parameter


The technical parameters up to JJG 696 (First-level standar).
1, test swpe:0.0-300.0(Gs)
2, test accuracy:<1.2(Gs)
3, stability:0.4Gs/30min
4, test caliber:16×48(mm2)
5, size:138×36×82 (mm3)
6, power:4.8V (Rechargeable battery inside)

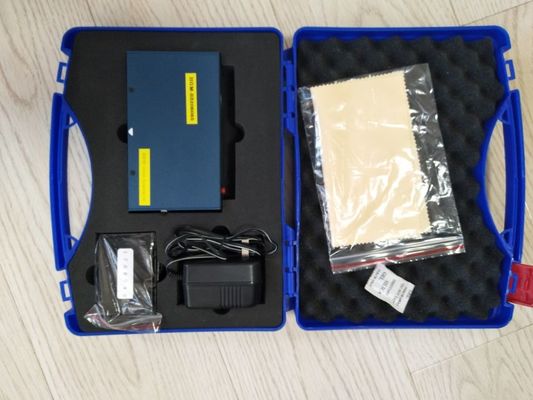

Standard Delivery:
Gloss meter
Instrument case
Standard board
Battery charger
Instruction booklet
Certificate
Maintenance list
