3000mt N/S Polarity Display Display Unit MT/Gs DC Magnetic Field Digital Tesla Magnetometer
Applications:
Magnetometers used to detect residual magnetism after demagnetising,offers highly accurate measurement of residual leakage fields
General introduction:

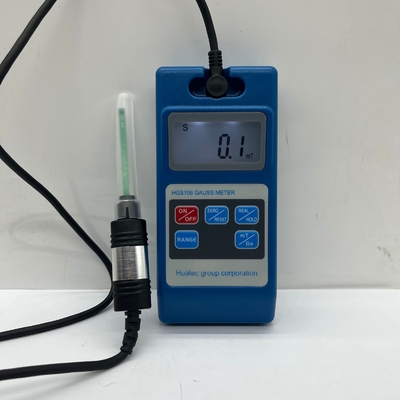

HGS-106 is a handheld digital gauss meter controlled by single chip microcomputer, which can be used to measure the magnetic induction intensity of dc magnetic field, radiation magnetic field and other magnetic fields. The instrument can be carried around, with a wide range, easy operation and clear LCD display. It has many functions, such as measuring/peak maintaining, MT/GS unit conversion, automatic zero adjustment by push button, 300MT/3000MT range conversion, etc.
Main technical indicators
1. Measuring range: 0~300mT~ 3000mt
2. Frequency range: 10Hz~200Hz
3. Accuracy: 0~100mT 1%, 2% above 100mT (measured in uniform magnetic field)
4. Resolution: DC×1:0.00 ~ 300.00mT. 0.01mT, DC× 10:0.0 ~ 3000.0mt 0.1mt
5. Measured magnetic field: dc magnetic field (static magnetic field)
6. Function description: peak maintenance function
Gs (gauss) /mT (millitesla) can be switched freely
7. N/S polarity display during dc measurement. N for positive and S for negative
8. Display button fast automatic zero
9. Ambient temperature: 5℃~40℃
10. Relative humidity: 20%~80% (no condensation)

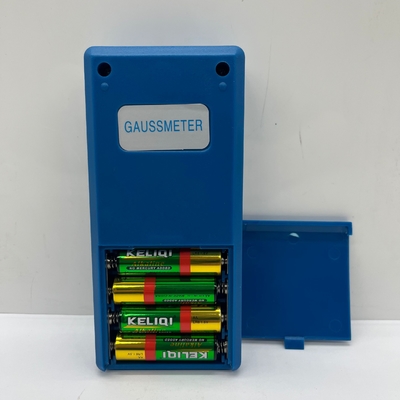

11. Power supply: four no.5 batteries are externally connected with voltage stabilizing power
12. External size: 150mm (L) ×70mm (W) ×30mm (H)
13. Instrument weight: 450g
14. Display mode: 41/2 LCD
15. Display unit: mT/Gs
