Measure Undercut Depth Fillet Cam Type Huatec Weld Gauge Series Taper Stainless Steel 7 Pcs Per Kit
Measure undercut depth, measure crown height, measure weld length etc.
In order to ensure the quality requirements of welding products, welding work on quantitative inspection of the data and results to prove that the work of qualified, welding inspection ruler test is a test weld appearance quality of the most simple and effective method, its content is carried out on the weld residual high, width, quantity of the wrong side, leg height, thickness of fillet weld, bite edge depth, Angle and clearance. measurement
HUATEC welding gauge KIT-1, 7pcs per kit as photo below:

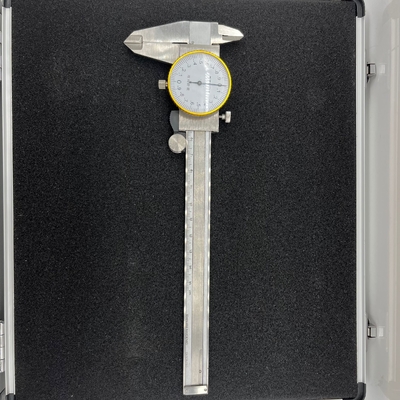

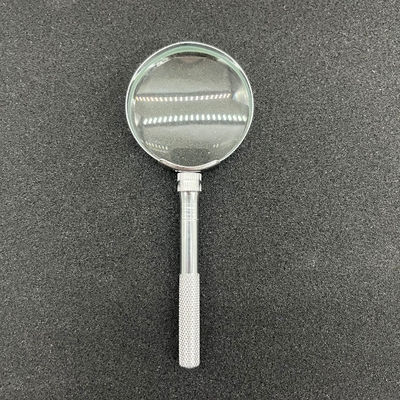

Including:: 1-15mm taper gage: 0-150mm vernier caliper 0-15mm caliper 6X magnifier V-WAC edge biting gage AWS gage MG-11
HUATEC KIT-2, 5pcs per kit as photo below:
Including: Light torch V-WAC edge biting gage 15-30mm taper gage Inspection mirror Hi-Lo gage

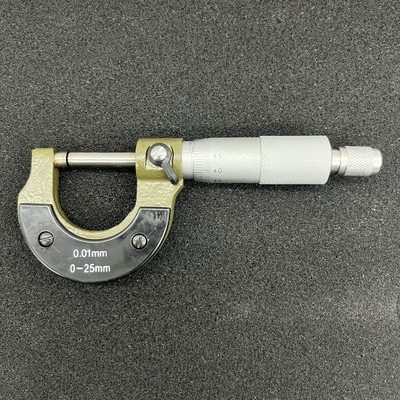

And also 13pcs kit available
WELDING GAUGE SERIES

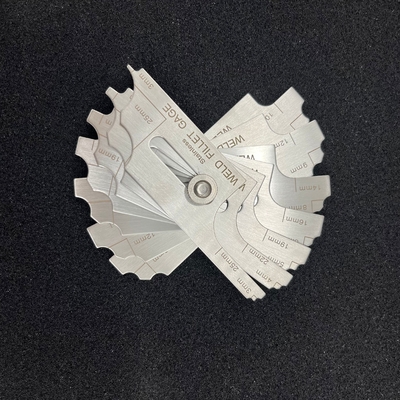

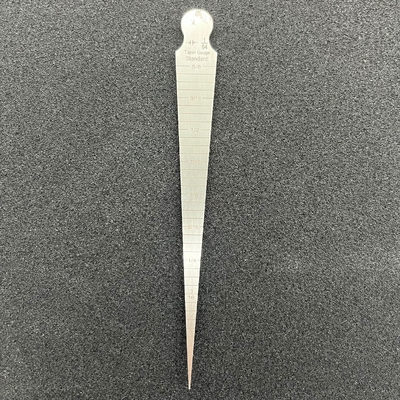

Wide-seat square Taper gauge
spec:63*40-630*400mm
180°malleable iron square MG-11(metric system)
G.A.L. HI-LO Welding Gauge Measures internal Alignments G.A.L ECONOMY Single Purpose HI-LO Welding Gauge

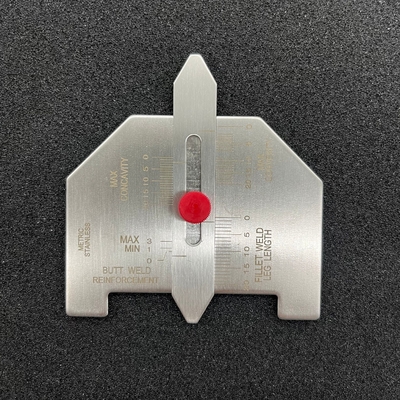

Automatic Weld Size Weld Gauge FAN-SHAPED Gauge

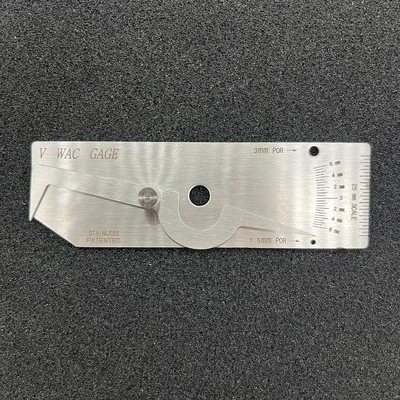

BITING EDGE GAUGE
MG-8 Cam Type Weld Gauge MG-11 Cam Type Weld Gauge
|
Measurement Items |
Range |
Parameters |
Tools |
|
Width |
0—20mm |
0.2 |
0.02 vernier caliper |
|
Height |
0—12mm |
Plug gauge, tabulate gauge |
|
|
Width of Fillet Weld |
0—20mm |
||
|
Movable Bevel Angle |
20°, 30°, |
±2° |
±30' angle gauge |
|
Single-side Bevel Angle |
117.5—122.5 |
±30' |
±10″universal gauge |
|
Bevel Angle |
45°, 55°, |
±30' |
±10″universal gauge |
|
Gap Size |
0.5-3.5mm |
0.1 |
0.02 vernier caliper |
Welding Gauge Model HJ30
The gauge consists of main scale, slide gauge and bevel gauge and is specially used for the measurement of the bevel angle of welding, the width and height of weld seam, and the weld gap.
It is made of stainless steel and is characterized by portable and compact structure, easy operation, wide application and accurate measurement
Welding Gauge ModelHJC60/40
The gauge consists of main scale, height gauge, undercut depthgauge and multiple-purpose gauge and is specially used for the measurement of the bevel angle, height, width, gap and undercut depth of weldment, suitable for the detection of boilers, bridges, ships, pressure vessels and oil pipes.
It is made of stainless steel and is characterized by portable and compact structure, easy operation, wide application.
Welding Gauge ModelHJC60
|
Measurement Items |
Range |
Tolerance of Indicating Value |
|
|
Height |
Surface Height |
0—15 |
0.2 |
|
Height of Fillet Weld |
0.2 |
||
|
Thickness of Fillet Weld |
0.2 |
||
|
Width |
0—60 |
0.3 |
|
|
Undercut Depth of Welding Seam |
0—5 |
0.1 |
|
|
Bevel Angle of Welding |
80—160 |
30 |
|
|
Gap Size |
0.5—6 |
0.1 |
|
Welding Gauge ModelHJC40
|
Measurement Items |
Range |
Tolerance of Indicating Value |
|
|
Height |
Surface Height |
|
0.2 |
|
Height of Fillet Weld |
0—12 |
0.2 |
|
|
Thickness of Fillet Weld |
0—15 |
0.2 |
|
|
Width |
0—40 |
0.3 |
|
|
Undercut Depth of Welding Seam |
0—5 |
0.1 |
|
|
Bevel Angle of Welding |
≤150 |
30 |
|
|
Gap Size |
0.5—5 |
0.1 |
|

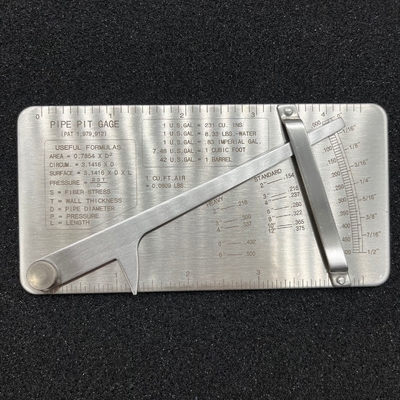

Pipe pit gauge
Inspection mirror
