HUATEC 1770mm Tube Voltage 150KV X - Ray Pipeline Crawlers Ndt Pipeline ndt crawler

1pcs
MOQ
HUATEC 1770mm Tube Voltage 150KV X - Ray Pipeline Crawlers Ndt Pipeline ndt crawler
Features Gallery Product Description Request A Quote
Features
Specifications
Pipe Diameter: Φ219—Φ510mm
Crawler Length: 1770mm
Creeping Speed: >15M/min
Creeping Distance: 5KM
Max.output Voltage: 150KV
Radiation Angle: 360°x40°
Focus Spot: 1.0×2.0mm
High Light:

x-ray crawler

,

pipeline crawler

Basic Infomation
Place of Origin: Beijing
Brand Name: HUATEC
Certification: ISO, CE, GOST
Model Number: HXPC-100D
Payment & Shipping Terms
Packaging Details: Standard export package
Delivery Time: 1-4days
Payment Terms: T/T, Paypal, Western Union
Supply Ability: 500pcs per month
Product Description

HUATEC 1770mm 120V X - ray Pipeline Crawlers HXPC-100D

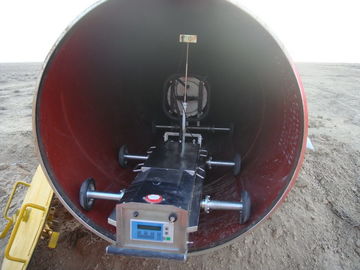

The X-ray pipeline crawlers include the special part that can detect the welding line of long pipeline. The X-ray pipeline crawlers have the advantages of high radiographic quality, high imaging sensitivity, low failure rate and high work efficiency. The X-ray pipeline crawlers have differential driving and vibration absorbers. The chassis of the X-ray pipeline crawlers can be moved in the pipeline steadily without off center running and overturning. The X-ray pipeline crawlers can be moved in the pipeline with great efficiency because it is controlled by PLC with protecting it from blocking and under voltage. The X-ray pipeline crawler is easy to be separated into several parts and then to be put together, so it is easy to carry. You can change the exposure parameter and make the X-ray pipeline crawler move, stop and have an exposure with the exterior controlling source. The X-ray pipeline crawlers are easy to operate.

Specification of X Ray Pipeline Crawler


          Model

Specification

HXPC-100D

Pipe diameter detecting range

Φ219—Φ510mm

Total weight

70KG

Crawler length

1770mm

Size for generator

Φ200×570

Creeping speed

>15M/min

Creeping distance

>5Km

Locating error

±5mm

Max.output voltage

150Kv

Max.outout current

3mA

Climbing ability

22°

Radiation angle

360°*40°

Focus spot

1.0×2.0mm

Batteryenergy

22Ah/120V

Motor power

150W

Exposure time

1s~9h continues adjustable

Delay time before exposure

24s

Humidity

90%

Max.Penetrate thickness

12mm

Operation temperature

-30°~ 70°



The crawler include below parts as standard accessories:

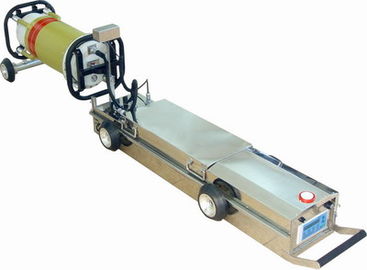

 Main vehicle

Lead acid pile: 110V(22Ah)

X-ray machine: 150KV/3mA

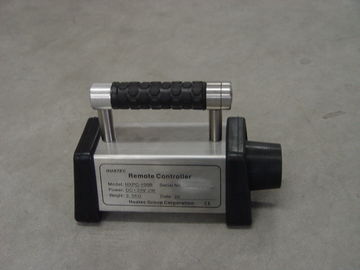

Remote controller (Electro magnetic induction type, no source)
