Amorphous Silicon Sensors Flat Panel Detector Lightweight Suitable For High Energy Detection 15MV
H1613HSA-BG It is a flat panel detector based on amorphous silicon sensors, lightweight and small, suitable for high energy detection up to 15MV.
Sensor
Receptor Type a-Si
Scintillator CsI:TI/GOS
Active Area 128x 160 mm
Resolution 1024 x 1280
Pixel Pitch 125 μm
Power Supply & Battery
Adapter In AC 100-240V,50-60Hz
Adapter Out DC 24V,2.7A
Power Dissipation <16 W
Enviromental
Temperature 10-35°C (operating)；-10~50°C (storage)
Humidity 30-70% RH (non-condensing)
Image Quality
Limiting Resolution 4.0 LP/mm
Energy Range 40-160KV / 40-15MV (OEM)
Electricals and interface
A/D Conversion 16 bits
Data Interface Gigabit Ethernet
Acquire Time wired: 1s
Exposure Control Software/Outer/AED
Mechanical

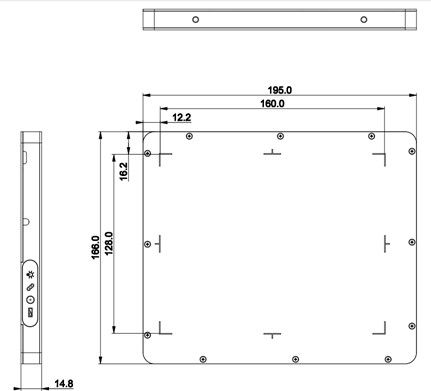

Dimension 195×166×14.8 mm
Weight 0.75kg
Material Aluminum and magnesium alloys
Front Panel Carbon fiber
