Digital Display Compact Portable Convenient Operation High Accuracy Stability Blue Ray Irradiometer Light Meter

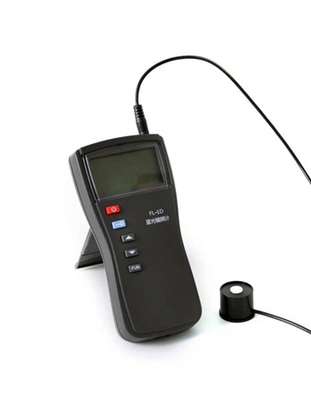

FL-1D blue ray irradiometer is suitable for measuring blue ray irradiance when phototherapy is used for neonatal hyperbilirubinemia. The instrument is characterized by digital display, compact, portable, convenient operation, high accuracy and stability.
Characteristics :
1. Spectral and angular characteristics are strictly corrected
2. Digital LCD display with backlight
3. Manual/automatic range switch
4. Digital output interface (USB, redundant power supply)
5. Low battery warning
6. Automatic delay shutdown
7. There are numbers to keep
8. Contact button operation, buzzer prompt
Main technical indicators
1.Wavelength range and peak wavelength:γ: 400~550nm; γp= 460 nm
2.Irradiance measurement range:(0. 1~199. 9x10) μW/c㎡
3. Out-of-band stray light:Less than 0. 2%
4. Relative value error:±6%(relative to NIM standards)
5. Cosine characteristic error:F2 4% or less
6. Response time:1 second
7. Size and weight:160mmx78mmx43mm; 0. 2kg
8. Power supply: conventional use 6F22 9V laminated battery
9. You can also use data line to connect USB interface, 5V power adapter power supply
10. The machine power consumption:< 0. 1 va
Maintain
Please store the instrument in a clean environment, temperature (0～40)℃ and humidity <85%RH to avoid any damage.
Warranty
We can repair or change it during one year freely if there is any problems which is not caused by improper use and maintain.
