365nm 420um Illuminance Meter Uv Black Light Meter And Visible White Light Meter

1pcs
MOQ
365nm 420um Illuminance Meter Uv Black Light Meter And Visible White Light Meter
Features Gallery Product Description Request A Quote
Features
Specifications
Material: ABS
Application: Measurement Of Light Sources And Irradiation Systems, Transmission Measurements, UV Radiation Safety
Illumination Measurement Range: (0.1 ~ 199.9×103) Lx
Ultraviolet Wavelength Range And Peak Wavelength: Lambda P (315 ~ 400) Nm, Lambda P = 365nm
The Irradiance Measurement Range: Muw /cm2 (0.1 ~ 199.9×103)
Long Wave Response Error: <15%
Size And Weight: 180mm×80mm×36mm;0.2kg
Power: 9V Battery(6F22)1pc
Product Name: Black Light Meter And Visible White Light Meter
High Light:

365nm illuminance meter

,

420um illuminance meter

,

abs illuminance meter

Basic Infomation
Place of Origin: Beijing
Brand Name: HUATEC
Certification: ISO, CE, GOST
Model Number: LX1500
Payment & Shipping Terms
Packaging Details: Standard export package
Delivery Time: 1-4days
Payment Terms: T/T, Paypal, Western Union
Supply Ability: 500pcs per month
Product Description

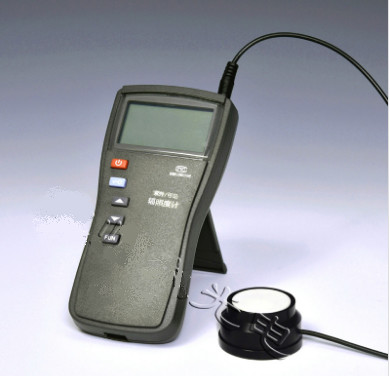

365nm And 420um UV Black Light Meter And Visible White Light Meter Illuminance Meter LX1500



Aplplication: Measuremen of light sources and irradiation systems, transmission measurements, UV radiation safety.

The instrument apply to different ultraviolet irradiation measurement field, such as photochemical, polymer materials aging, flaw detection, UV light source, plant cultivation and large scale integrated circuit



Product overview

Ultraviolet/visible (radial) illuminance meter adopts SMT patch technology, adopts high precision and low power consumption digital chip, the instrument shell is streamlined design, the detector after strict spectrum and Angle characteristics correction, stable performance, strong applicability. The instrument integrates two functions of ultraviolet irradiance measurement and illumination measurement, and is widely used in various fields such as photochemistry, polymer material aging, flaw detection, ultraviolet light source, plant cultivation, large-scale integrated circuit industry, agriculture, architecture, environment and scientific research.



Product features

Spectral and angular characteristics are strictly corrected

Digital liquid crystal display with backlight

Manual/automatic range switching

Digital output interface (USB, redundant power supply)

Low battery alert

Automatic delay shutdown

Number holding

Tap the button to operate, beeping prompt



Specifications

Illumination measurement range: (0.1 ~ 199.9×103) lx

Relative indication error: <± 4.0%

V (lambda) matching error: less than 6.0%

Cosine characteristic error: < 4.0%

Response time: <1 second

Ultraviolet wavelength range and peak wavelength: lambda P (315 ~ 400) nm, lambda P = 365nm

The irradiance measurement range: muw /cm2 (0.1 ~ 199.9×103)

Long wave response error: <15%

Relative indication error: <± 8% (relative to NIM standard)

Nonlinear error: <± 1.5%

Response time: <1 second

Zero value error: (full range FS) < ±1.0% of full range

Shift error: <±1.0%

Fatigue error: <3.0%

Ambient temperature: (0~40)℃; Humidity < 85% RH

Size and weight: 160mm×78mm×43mm; 0.2 kg

Power supply: 6F22 9V laminated battery (non-rechargeable battery)

Overall power consumption: < 0.1va



Maintain

Please store the instrument in a clean environment, temperature (0~40)℃ and humidity <85%RH to avoid any damage.



Warranty

We can repair or change it during one year freely if there is any problems which is not caused by improper use and maintain.
