Dose Rate Huatec Personal Dosimeter For X Ray Crawler

Dose Rate Huatec Personal Dosimeter For X Ray Crawler
Features Gallery Product Description Request A Quote
Measurement Range: Cumulative Dose Hp(10): 0.0mSv~10Sv;Dose Rate Hp (10): 1mSv/h~500mSv/h
Relative Error: <±10% (1mSv/h,Cs-137)
Energy Response: <±30%(50keV1.5MeV)
Alarm Method: Sound And Light Alarm And LCD Display Indicator
Appearance Size: Φ49㎜×16㎜ (not Including Wristband)
Response Linearity: <±20% (10Sv/h500mSv/h)
Overload Characteristics: >10Sv/h
Weight: 45g
Data Communication: Data Storage Is Transmitted To The Computer Wirelessly For System Management
Data Storage Function: When The Instrument Is Turned Off, The Measurement Data Will Be Stored Without Power Loss
High Light:

dose rate personal dosimeter


x ray crawler personal dosimeter


huatec personal dosimeter

Basic Infomation
Place of Origin: Beijing
Brand Name: HUATEC
Certification: ISO, CE, GOST
Model Number: HRD-3
Payment & Shipping Terms
Packaging Details: Standard export package
Delivery Time: 1-4days
Payment Terms: T/T, Paypal, Western Union
Supply Ability: 500pcs per month
Product Description

Watch Type Sound And Light Alarm HUATEC HRD-3 Dose Rate Personal Dosimeter


The HUATEC watch type personal dosimeter is mainly used for monitoring by X and gamma radiation. It caused by individual cumulative dose and dose equivalent rate, could stay wrist like a watch, is more suitable for interventional radiology treatment doses of radiation measurement and alarm, can display real-time data and alarm indication is given, and a data storage, alarm parameters setting, battery voltage detection, wireless charging and wireless data communications, and other functions. Alarm indication is given by Acousto-optic instructions. Its features are compact structure, waterproof and dustproof and can be systematically managed.



1) Measurement scope:

Cumulative dose Hp(10): 0.0mSv~10Sv;Dose rate Hp (10): 1mSv/h~500mSv/h


2) Alarm threshold:

Cumulative dose in 1mSv~10Sv Adjustable between; Dose rate in 1mSv/h~500mSv/h Adjustable between;

The alarm time is adjustable between 99 hours and 59 minutes.


3) Alarm method:

Sound and light alarm and LCD display indicator


4) Alarm type:

Cumulative dose or dose rate exceeding threshold, battery under voltage, working overtime, detector failure, etc., with settable cumulative dose increment flash prompt


5) LCD display range::Hp(10): 0.00mSv~9999mSv,Hp(10): 0.01mSv/h~1000mSv/h

6)Energy response: <±30%(50keV~1.5MeV)

7)Response linearity: <±20% (10mSv/h~500mSv/h)

8) Relative inherent error: <±10% (1mSv/h,Cs-137)

9) overload characteristics: >10Sv/h

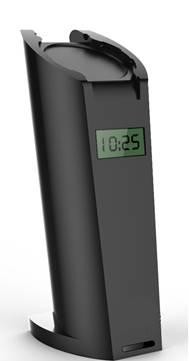

10)Power source: wireless charging mode, built-in rechargeable lithium battery(4.2V,100mAh),Continuous working time is more than 10 days. Additional charging and wireless communication seat (as shown in the figure)

11) Under voltage indication: The battery can still work for 8 hours after under voltage indication

12)Temperature characteristics: <±15%( -10℃~+40℃)

13 )Humidity characteristics: <±10%(40%~90%RH,35℃)

14) Weight: about 45g

15) feet inches: Φ49㎜×16㎜ (not including wristband)

16) Data storage function: When the instrument is turned off, the measurement data will be stored without power loss

17) Data communication: data storage is transmitted to the computer wirelessly for system management


Standard delivery

HRD-3 dosimeter

Wireless charger/wireless communication

Rechargeable lithium battery(4.2V,100mAh)

Instruction manual

Calibration certificate



Application field:

It is applicable to the protection and personal dose monitoring of workers in the fields of industrial nondestructive testing, isotope application, nuclear industry, hospital, railway, civil aviation, environmental protection and other radioactive applications
