HR-150PDX Touch Screen Portable Rockwell Hardness Tester Closed Loop High Accuracy
1pcs
MOQ
HR-150PDX Touch Screen Portable Rockwell Hardness Tester Closed Loop High Accuracy
Features Gallery Product Description Request A Quote
Features
Basic Infomation
Place of Origin: Beijing
Brand Name: HUATEC
Certification: ISO, CE, GOST
Model Number: HR-150/45H
High Light:

touchscreen portable rockwell hardness tester

,

closed loop portable rockwell hardness tester

,

touchscreen rockwell hardness testing machine

Payment & Shipping Terms
Packaging Details: Standard export package
Delivery Time: 1-4days
Payment Terms: T/T, Paypal, Western Union
Supply Ability: 500pcs per month
Specifications
Digital Screen: Touch Screen
Advanced Technology: Closed Loop Technology And Displacement Sensor Technology
One Key Operation: No Dead Weight, No Need Of Installation And Training
30 Scales: Test Rockwell, Superficial Rockwell 30 Scales
Software: Powerful Data Processing Software
USB Interface: USB Interface, Test Value Can Be Stored By U Disc At EXCEL File
Product Description

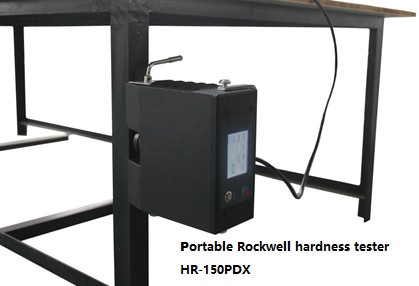

HR-150PDX Touch Screen Closed Loop High Accuracy Portable Rockwell Hardness Tester



Main Features:

  1. The tester can automatically test Rockwell(HR) scale.
  2. Applies electric loading, high-precision sensor and possesses unique close-circuit control system;
  3. Touch-screen interface; convenient operation; choose hardness scale directly; force value changes automatically in test parameter;
  4. Auto-correction of high, medium and low scales of rockwell hardness blocks according to standard blocks;
  5. Auto-correction of test force through standard dynamo-meter;
  6. Automatically exertion of initial and main test force;
  7. Strong data processing function including: HR multiple hardness scale conversion; setting of valid range; auto alarm when limit is exceeded; input name of tester, name of sample and other information;
  8. More sample and testing information; testing data can be saved automatically to excel format and saved on u-disk for convenience of editing and processing.

HR-150PDX Touch Screen Portable Rockwell Hardness Tester Closed Loop High Accuracy 0



Technical Specifications:

Model HR-150PDX
Initial test force 10kgf(98.07N)
Rockwell total test force 60kgf(588N) 100kgf(980N) 150kgf(1471N)
Rockwell test force 10, 62.5, 125, 187.5kgf
Rockwell hardness scale HRA,HRB,HRC,HRD,HRE,HRF,HRG,HRH,HRK, HRL,HRM,HRR,HRP,HRS,HRV
Brinell hardness scale HBW62.5/2.5, HBW187.5/2.5 (optional function)
Duration time 0-99s
Hardness resolution ratio 0.1HR
Test force deviation <0.5%
Data output LCD display
Data saving Measurement data saved in u-disk in excel format
Conversion scale Rockwell; (Brinell and Vickers are optional function)
Criteria met BSEN 6508, ISO 6508, ASTM E18,GB/T230, ASTM E10,ASTM E103
Specimen dimension

Plane surface: area≥160X100,thickness≥5mm;

Round stick(pipe): diameter over 250mm;

When between 60 to 250mm, fix v-shaped block and chain to the magnet to fasten sample.

Size 320×170×230mm
Weight 10.5kg
Voltage AC220+5%,50~60Hz


Standard Accessories

Item Quantity Item Quantity
Diamond rockwell indenter 1 Product certificate, warranty card 1
Hardness block(HRC high and low, HRB) 3 power source 1
Iron base 1 U disk, touch pen Each 1
Power cord 1 Manual 1
Product certificate, warranty card 1
