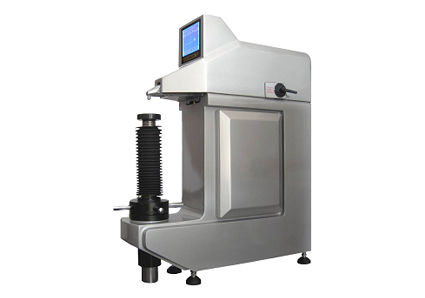

Horizontal protrudent Indenter Digital Rockwell Hardness Tester HR3000

1pcs
MOQ
Horizontal protrudent Indenter Digital Rockwell Hardness Tester HR3000
Features Gallery Product Description Request A Quote
Features
Specifications
High Light:

portable brinell hardness tester

,

rockwell superficial hardness tester

Basic Infomation
Place of Origin: Beijing
Brand Name: HUATEC
Certification: ISO, CE, GOST
Model Number: HR-3000
Payment & Shipping Terms
Packaging Details: Standard export package
Delivery Time: 1-4days
Payment Terms: T/T, Paypal, Western Union
Supply Ability: 500pcs per month
Product Description
  • Horizontal protrudent Indenter Design, suitable also for internal and external testing.
  • Testing on Surfaces difficult to reach. Testing internal surface of rings and tubes with diameters over 23mm.
  • Modern design with Titanium metallic Silver finish
  • Can be used directly to measure Rockwell hardness for metal and plastic material.
  • Provided with many features such as high measuring precision, wide measuring range with 15 Rockwell scales.
  • The tester is suitable for testing of carbon steel, alloy steel, cast iron, non ferrous metal, and engineering plastic etc.
  • Automatic load cycle. The loading, dwell, unloading process of the main test force are controlled exactly to meet standard.
  • Measuring results digitally displaying and can be printed, or transmitted to external computer automatically by USB or RS-232 data output port.
  • Test value can be transformed to the value of HB, HV, HLD, HK and σb value.
  • The tester meeting all the following standard such as ISO 6508-2, ASTM E18.



  • Preload:98.1N (10kgf)
  • Total test force:588.4N (60kgf), 980.7N (100kgf), 1471N (150kgf)
  • Scales:HRA, HRB, HRC, HRD, HRE, HRF, HRG, HRH, HRK,
  • HRL, HRM, HRP, HRR, HRS, HRV
  • Load dwell duration: 2~50s, can be set and stored
  • Resolution :0.1HR
  • Display:High definition backlight LCD
  • Operation:Menu selectable, Membrane keypad
  • Upper/lower limits setting & alarming
  • Data statistics: Avg., Max., Min., S, R available
  • Curved surface correcting automatically
  • Memory: Max 500 items of test results stored automatically
  • Data output: RS-232 to micro printer, USB port to external PC
  • Testing space:260mm in vertical, 150mm in horizontal
  • Dimensions: 710mm×210mm×830mm
  • Power supply: AC, 220V/110V, 50~60Hz, 4A
  • Net weight: 100kg



Standard configuration



Host machine

1



Standard hardness block for A scale

1



Standard hardness block for B scale

1



Standard hardness block for C scale

1



ball indenter (1/16″)

1



120°cone diamond indenter

1



Mounting screws for indenter

2



Flat anvil

1



“V ”shape anvil

1



Power supply wire

1



Screwdriver for indenter mounting

1



Dust cover

1

Optional accessories:



Short diamond indenter



Chisel diamond indenter



Slender diamond indenter



1/8″ball indenter and spare steel ball



1/4″ball indenter and spare steel ball



1/2″ball indenter and spare steel ball



φ225 anvil



φ150 anvil



Standard hardness block for other scales



Micro printer
