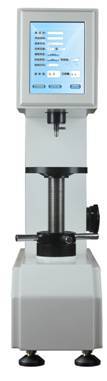

HR-150DT Rockwell Hardness Tester with 8-Inch Touch Screen, 150kgf Capacity

1pcs
MOQ
HR-150DT Rockwell Hardness Tester with 8-Inch Touch Screen, 150kgf Capacity
Features Gallery Product Description Request A Quote
Features
Specifications
Sensor: Electric Loading, High Precision Sensor
Touch Screen: Touch Screen 8 Inch
Value Correction: Automatic Correction
Data Procession: HR, HB, HV And Other Hardness System Conversion
Test Result: Test Results Can Be Stored, Processed And Printed Automatically
Initial Test Force: 10kgf(98.07N)
Total Test Force: 60kgf(588N) 100kgf(980N) 150kgf(1471N)
Rockwell Hardness Scale: HRA、HRB、HRC、HRD、HRE、HRF、HRG、HRH、HRK、 HRL、HRM、HRR、HRP、HRS、HRV
Measurement Range: HRA:20-88、HRB:20-100 、HRC:20-70 、HRD:40-77 、HRE:70-100 、HRF:60-100 、HRG:30-94、HRH:80-100、HRK:40-100、HRL:100-120 HRM:85-115、 HRR:114-125
Data Memory: Can Save 20 Different Kinds Of Results, Built-in Printer And RS-232
Max Height Of Specimen: 200mm
The Distance From Indenter Center To The Wall: 160mm
Machine Size: 560×200×800mm
Weight: 70kgs
Power: AC220+5%,50～60Hz
Highlight:

Rockwell Hardness Tester with touch screen

,

Rockwell Hardness Tester 150kgf capacity

,

8-inch touch screen Rockwell Hardness Tester
Basic Infomation
Place of Origin: Beijing
Brand Name: HUATEC
Certification: ISO, CE, GOST
Model Number: HR-150DT
Payment & Shipping Terms
Packaging Details: Standard export plywood package
Delivery Time: 4days
Payment Terms: T/T,Paypal,Western Union
Supply Ability: 500pcs per month
Product Description
Electric Loading Touch Screen Rockwell Hardness Tester HR-150DT
Professional Hardness Testing Solution

The HR-150DT is an advanced electric loading hardness tester featuring touch screen operation and closed-loop control system. Designed for precision hardness measurement across various materials and industrial applications.

Applications

Ideal for industrial production and quality control of ferrous/non-ferrous metals, hardened steel, tempered steel, annealed steel, carbide materials, powder metallurgy, and thermal spray coatings.

Key Features
  • Electric loading with weights and high precision sensor
  • User-friendly 8-inch touch screen interface
  • Automatic correction for high, medium and low hardness values
  • Built-in convex cylindrical surface hardness correction
  • Advanced data processing with HR/HB/HV conversion
  • Test result storage, processing and printing capabilities
  • Compliant with BSEN 6508, ISO 6508, ASTM E18, GB/T230 standards
Technical Specifications
Model HR-150DT
Initial Load 10kgf (98.07N)
Total Load 60kgf (588N), 100kgf (980N), 150kgf (1471N)
Rockwell Scales HRA, HRB, HRC, HRD, HRE, HRF, HRG, HRH, HRK, HRL, HRM, HRR, HRP, HRS, HRV
Hardness Range HRA:20-88, HRB:20-100, HRC:20-70, HRD:40-77, HRE:70-100, HRF:60-100, HRG:30-94, HRH:80-100, HRK:40-100, HRL:100-120, HRM:85-115, HRR:114-125
Dwell Time 0-99s
Resolution 0.1HR
Load Error <0.5%
Display LCD with 8-inch screen
Data Storage 60 test results, built-in printer, RS-232 interface, optional USB storage
Conversion Scales Superficial Rockwell, Brinell, Vickers
Max Specimen Height 200mm
Indenter to Wall Distance 160mm
Dimensions 560*200*800mm
Net Weight 70kg
Power Supply AC220 ±5%, 50-60Hz
Operation Interface
HR-150DT Rockwell Hardness Tester with 8-Inch Touch Screen, 150kgf Capacity 0
Touch screen interface with all 15 Rockwell scales
HR-150DT Rockwell Hardness Tester with 8-Inch Touch Screen, 150kgf Capacity 1 HR-150DT Rockwell Hardness Tester with 8-Inch Touch Screen, 150kgf Capacity 2
Automatic hardness value correction system
HR-150DT Rockwell Hardness Tester with 8-Inch Touch Screen, 150kgf Capacity 3
Precision load correction functionality
Standard Accessories
Name Quantity Name Quantity
Diamond Rockwell Indenter 1 1.5875mm Ball Indenter 1
Hardness block (HRC High Low 2, HRB 1) 3 Large, Medium, "V" shaped Testing Table 1 each
Weights (A,B,C) 1 each Dust bag 1
U disk, touch pen 1 each Regulating screw 4
Power line 1 2A fuse 1
Operation Manual 1 Calibration certificate 1
