Ac Dc Surface And Near Surface Cracks Magnetic Particle Test Equipment

1pcs
MOQ
Ac Dc Surface And Near Surface Cracks Magnetic Particle Test Equipment
Features Gallery Product Description Request A Quote
Features
Specifications
Power Supply:: AC 220V ± 10% 50HZ 5A
Output:: AC 38V 10A
Inspection Speed:: ≥6 M/min
Weight: About: 6.5Kg (main Unit)
Product Name: Portable Magnetic Particle Testing Flaw Detector
Application: Mainly Used To Detect Surface And Near Surface Cracks Of Ferromagnetic Workpiece.
Lifting Force:: AC≥5Kg DC≥18Kg (no Joints)
Pole Distance:: 50-200mm (adjustable)
Currrent: AC And DC Switchable
Controller Size: 95x45x75mm (L*W*H)
Carrying Case Size: 170x140x70mm (L*W*H)
High Light:

ac dc magnetic particle test equipment

,

huatec magnetic particle test equipment

,

ac dc ndt magnetic particle testing

Basic Infomation
Place of Origin: Beijing
Brand Name: HUATEC
Certification: ISO, CE, GOST
Model Number: HCDX-ISC
Payment & Shipping Terms
Packaging Details: Standard export package
Delivery Time: 1-4days
Payment Terms: T/T, Paypal, Western Union
Supply Ability: 500pcs per month
Product Description

AC And DC Surface And Near Surface Cracks Portable Multifunction Magnetic Particle Test Equipment



Introduction:

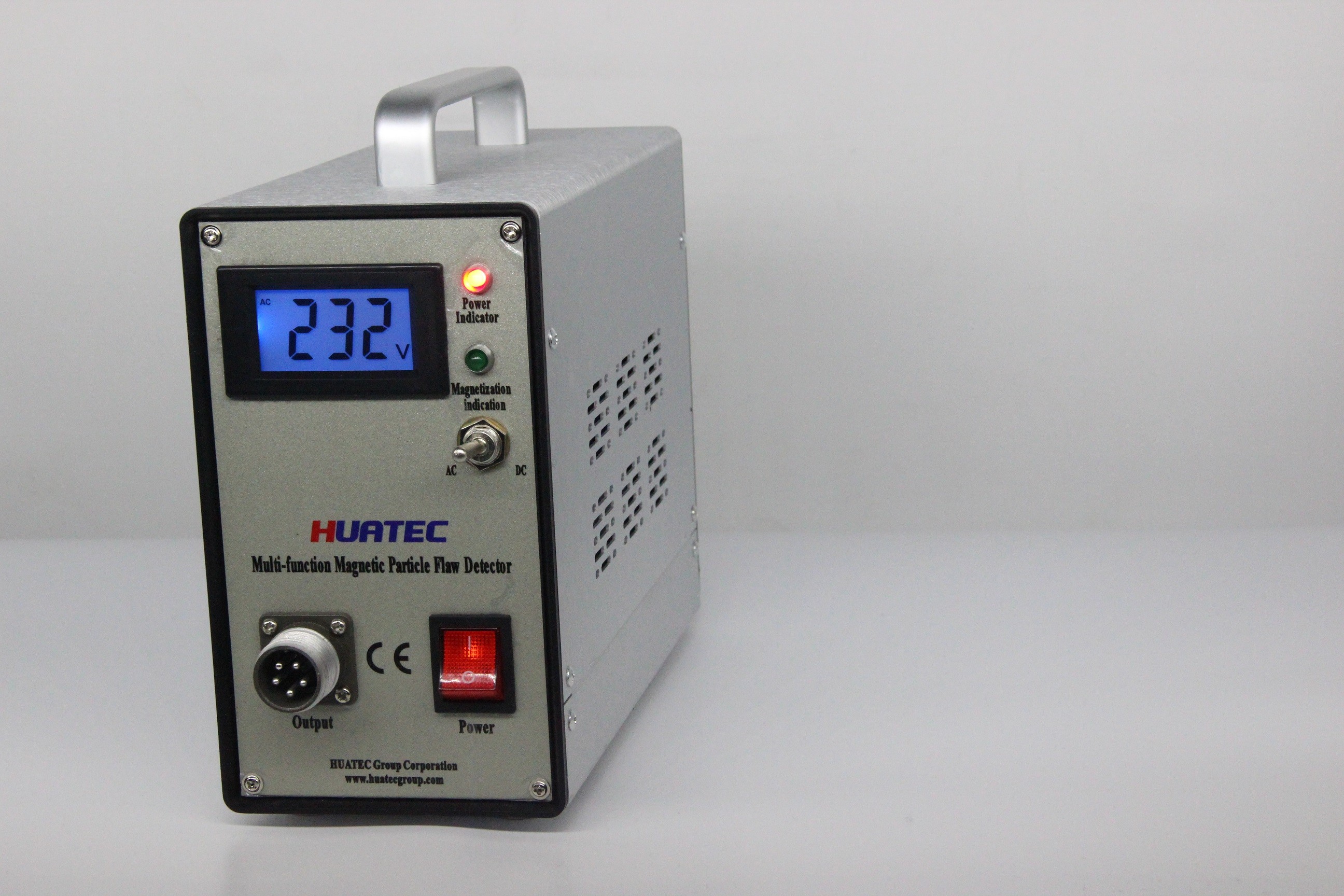

HCDX-ISC composite magnetic powder flaw detector adopts silicon controlled contactless switch, with low noise, strong magnetic force, long service life and simple operation, suitable for field and laboratory use. The instrument adopts combined configuration, and users can choose probe freely according to their needs. Type A, D, E, O probe can be configured according to user requirements.



AC and DC switchable for HCDX-ISC serial portable multifunction magnetic particle flaw detector.



HCDX-ISC serial portable multifunction magnetic particle flaw detector adopts 8-bit MCU as the controller (with the phase controlled circuit), In addition, the program of MCU can enjoy lifetime free upgrades, and type A, D, E, O probe can be configured according to user requirements.



Application:

Mainly used to detect surface and near surface cracks of ferromagnetic metal parts.

Boiler pressure vessel, steel structure, forgings, castings, welding parts, machined parts, etc.



Ac Dc Surface And Near Surface Cracks Magnetic Particle Test Equipment 0



The standard probes introduction for model HCDX-ISC:

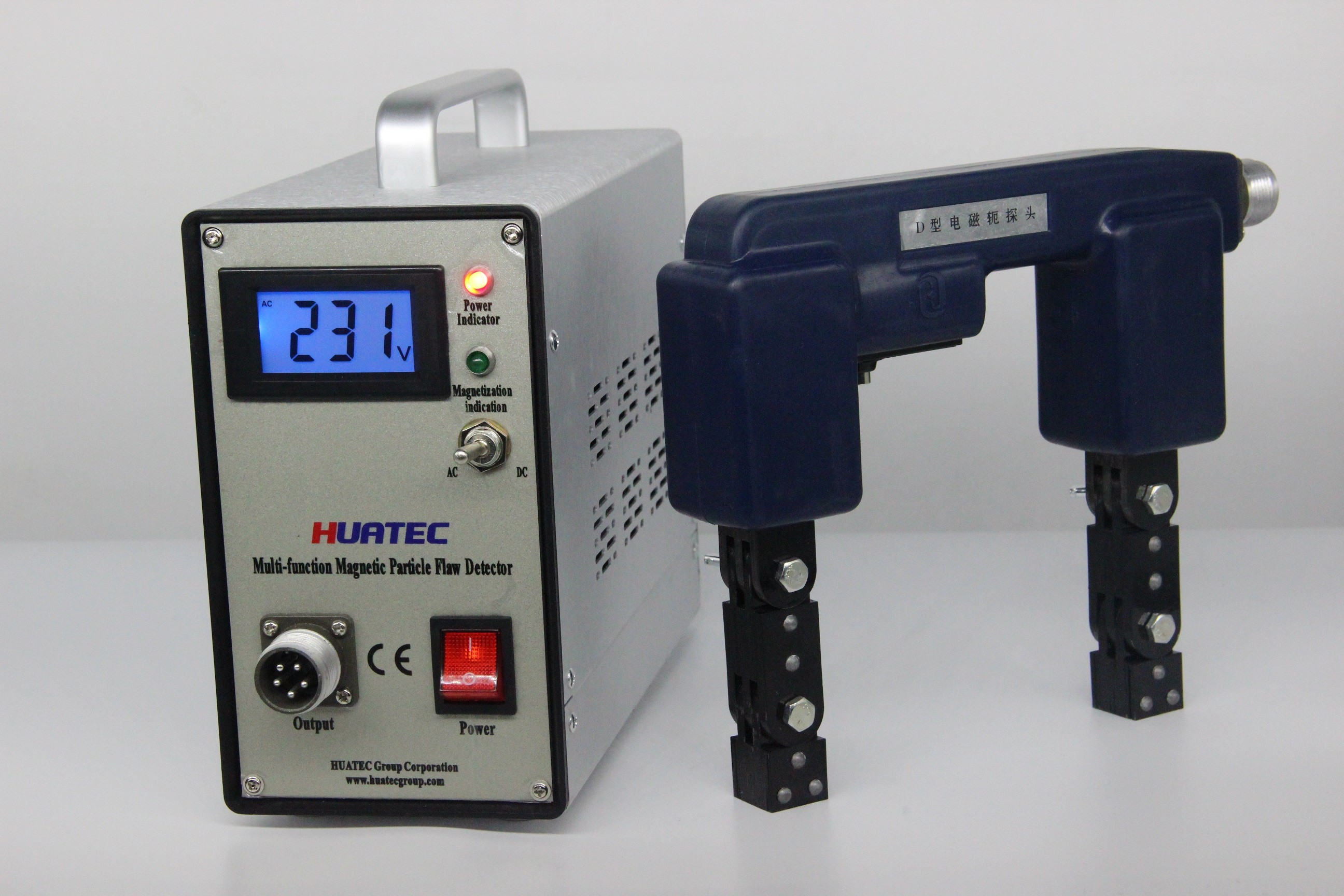

Type D probe (electromagnetic yoke probe): equipped with movable joints, can magnetize and detect the surface workpiece.

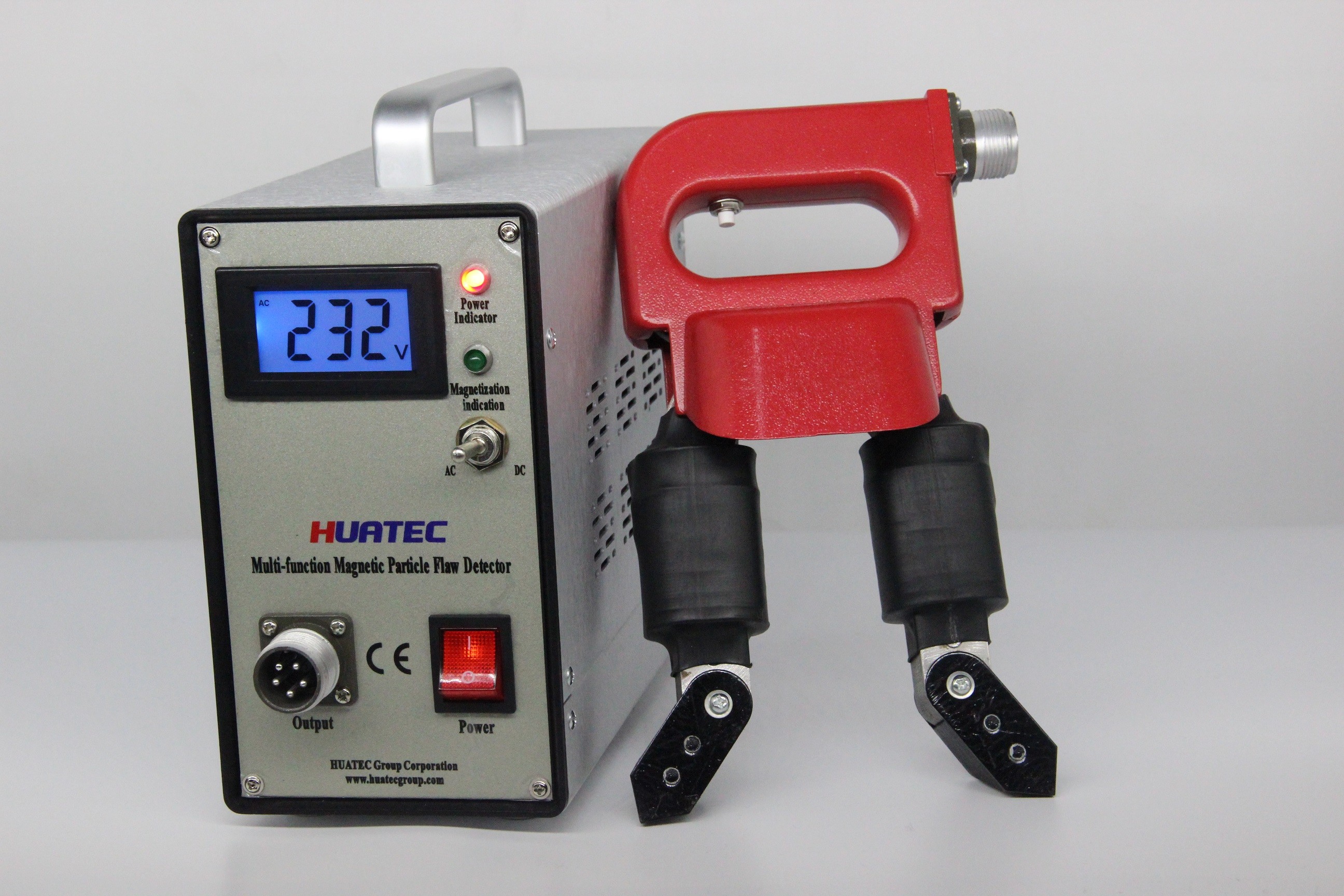

Type A probe (horseshoe probe): suitable for all kinds of fillet weld, large workpiece inside and outside corners of local magnetization inspection, equipped with working lights.



Technical parameters:

Power supply: AC 220V ± 10% 50HZ 5A

Output: AC 38V 10A

Type A.D.E.O probes are optional and available

Inspection speed: ≥6 m/min

Temperature rise of probe: ≤60℃

Working beat: it is recommended to work for a long period of continuous operation: magnetizing time ≤3 seconds, gap time ≥5 seconds

Weight: about 6.5Kg (main unit)

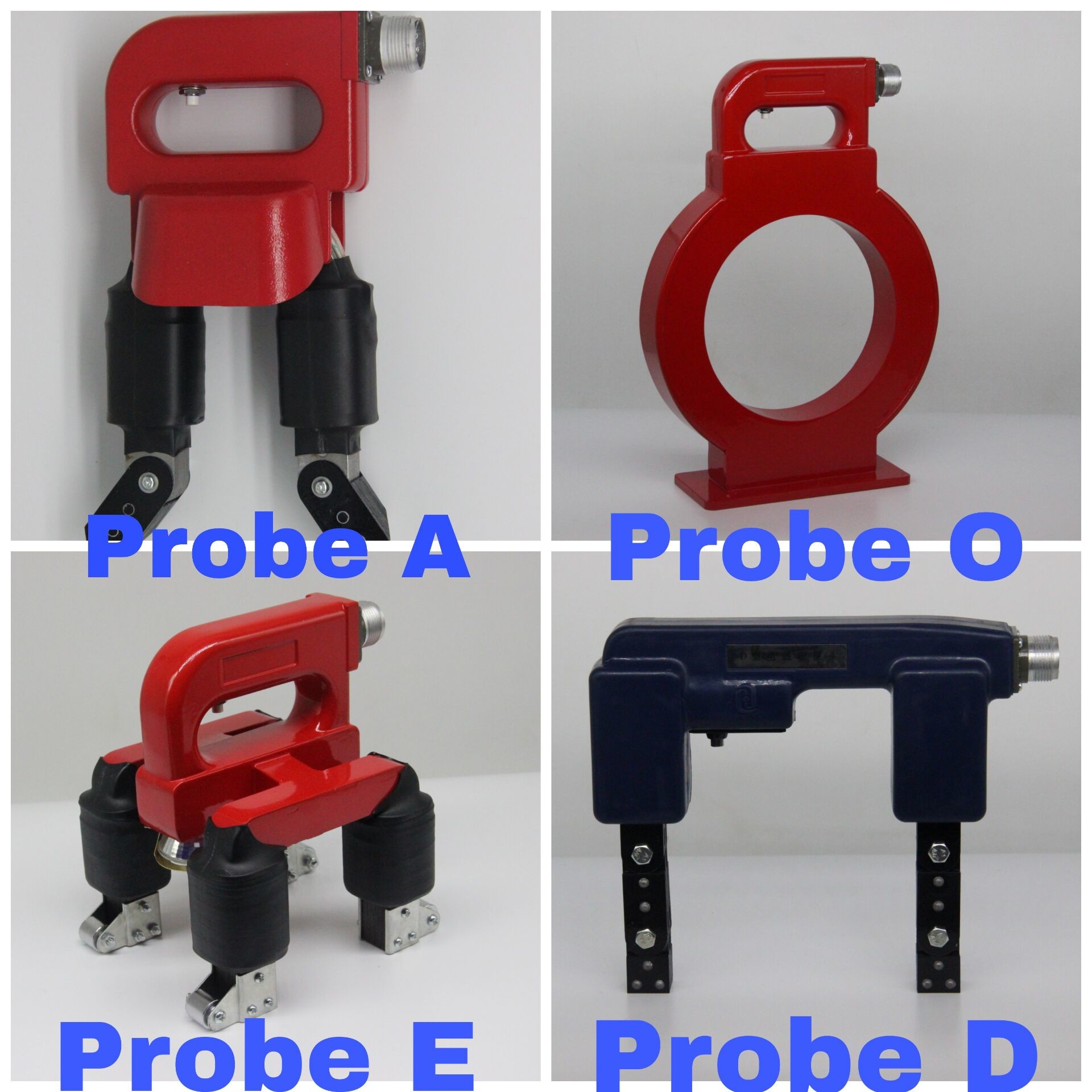

All optional probes parameters:

D type probe

Lifting force: AC≥5Kg DC≥18Kg (no joints)

Pole distance: 50-200mm (adjustable)

Operating current: ≥8A

Working voltage: AC=38V, DC=9V

Weight: 2.5 Kg

Atype probe

Lifting force: AC≥ 4.5kg DC≥18Kg

Pole distance: 20-160mm (adjustable)

Working voltage: AC=38V, DC=9V

Weight: 2.0 Kg

Otype probe

Central magnetic intensity: 180Oe

Working voltage: AC=38V

Inside diameter: 150 mm

Weight: 2.5 Kg

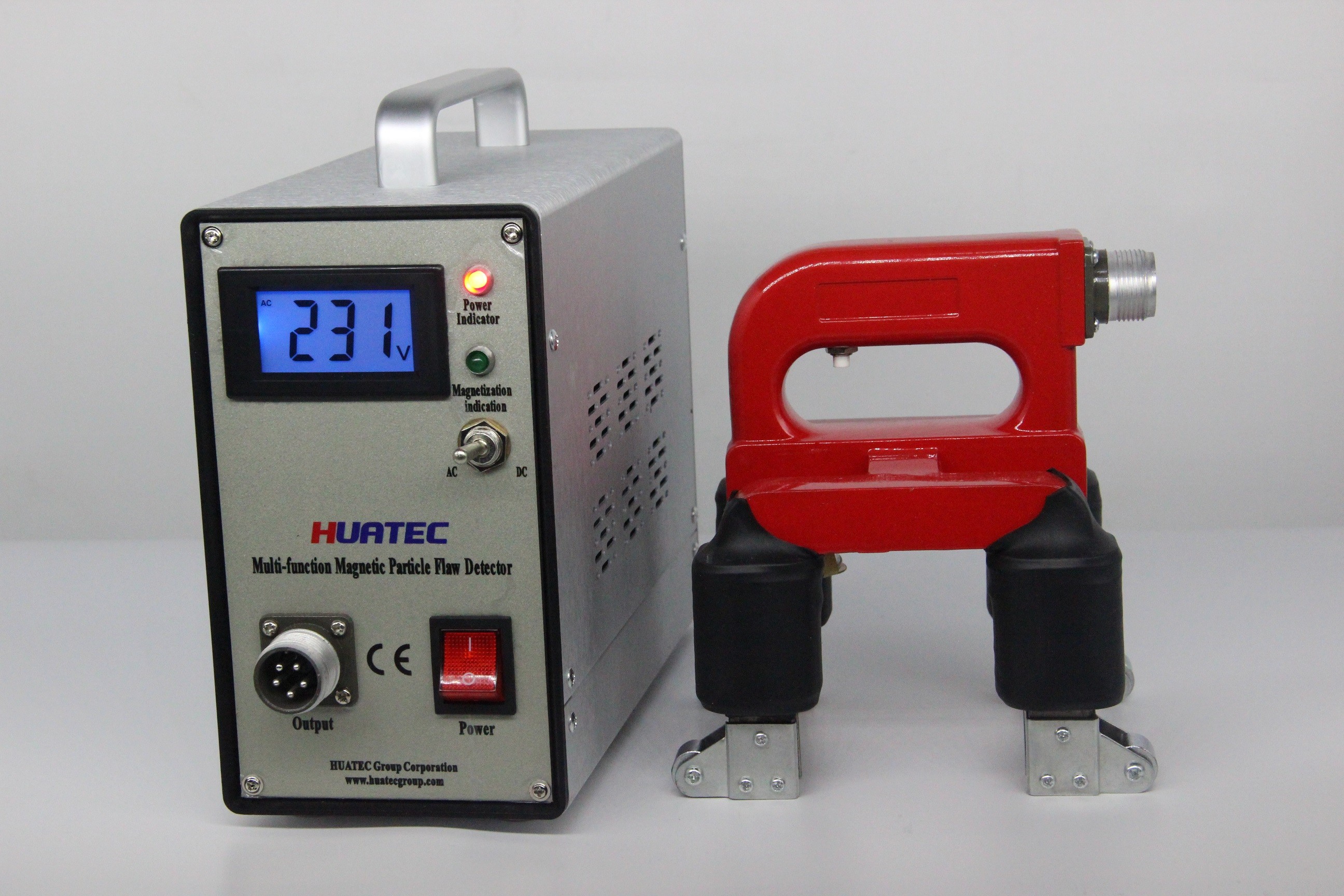

Etype probe

Lifting force: ≥12Kg

Distance: 110 mm

Operating current: ≥7A

Inspection speed: 6 m/min

Working voltage: 38 v left, 2

Weight: 3.0 Kg



Standard delivery:



Host HCDX-ISC 1

Type D yoke probe 1

Type A probe 1

The power line 1

The probe line 1

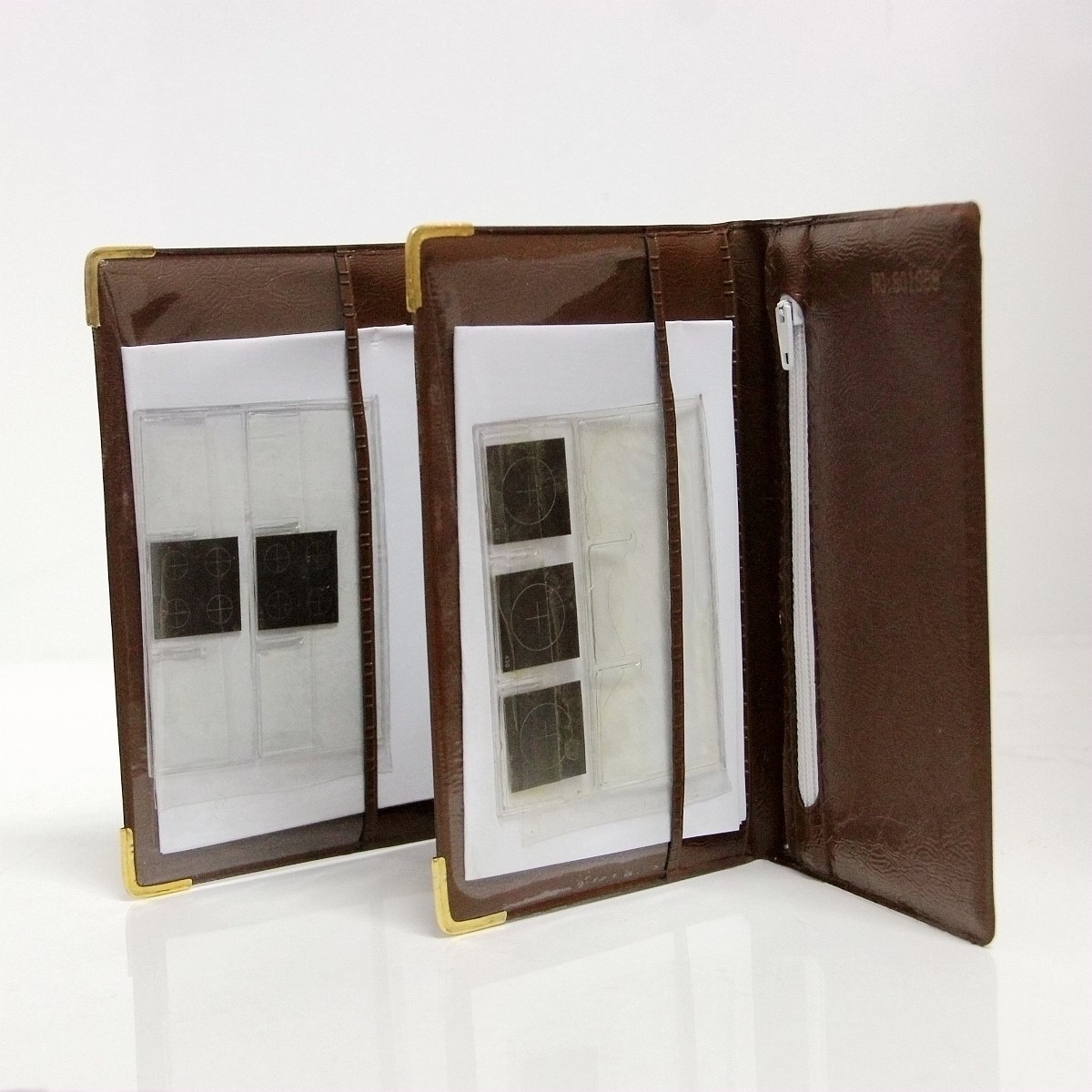

Standard specimen 1

Operation manual 1

Certificate 1



Optional accessories:

Type A probe

O the probe

E probe

D probe

Dead weight

Test specimen

UV light
