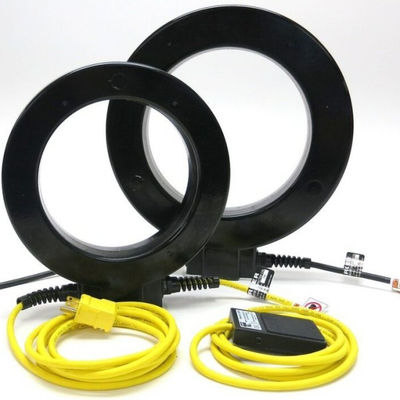

10" 12" 14" 16inch 220V 300Gs Magnetic Particle Testing Machine MPI Split Coil
Features:
Power supply: AC 220V 50Hz 60Hz
Coil inner diameter: Phi 200mm/250mm/300mm etc
No load center magnetic field: 250Gs/5800AT;300Gs/7100AT;350Gs/8300AT;
Temporary load rate: 30%
Power: 250Gs/3.3KW; 300Gs/4.8KW;350Gs/6.6KW or others
Longitudinal magnetization, easy use on site.
Coil type: Split coil
Brand:HUATEC
Parameter:
| Inner diameter (inch) | Central magnetic field strength (Gs) | Voltage | Whether with demagnetization |
| 10 | 200 | 220V | Optional |
| 12 | 250 | 220V | Optional |
| 14 | 300 | 220V | Optional |
| 16 | 300 | 220V | Optional |
Optional demagnetization function
Coil inner diameter can be customized

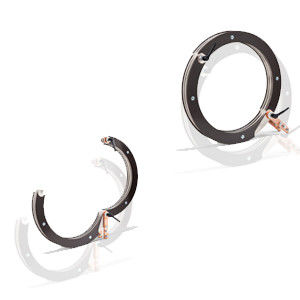

MPI fixed coil avaliable for any size:
