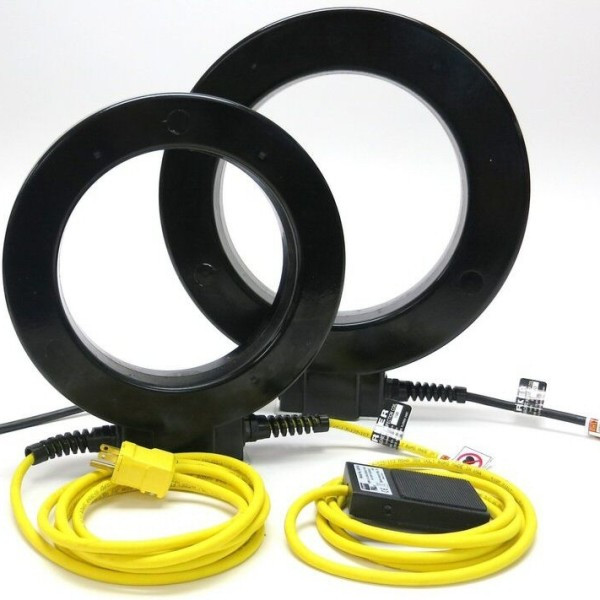

10" 12" 14" 220V 250Gs Magnetic Particle Testing Machine MPI Fixed Coil
Features:
Power supply: AC 220V 50HZ
Coil inner diameter: Phi 250mm.
No load center magnetic field: 250Gs/5800AT;
300Gs/7100AT;350Gs/8300AT;
Temporary load rate: 30%
Power: 250Gs/3.3KW; 300Gs/4.8KW;350Gs/6.6KW.
Longitudinal magnetization, easy use on site.
Coil type: Fixed
Parameter:
| Coil inner diameter | Central magnetic field strength Gs | Voltage | Whether with demagnetization |
| 200 mm | 200 Gs | 220V | Optional |
| 250 mm | 250 Gs | 220V | Optional |
| 300 mm | 300 Gs | 220V | Optional |
| 350 mm | 300 Gs | 220V | Optional |
Optional demagnetization function
Coil inner diameter can be customized
Split coil avaliable at any size:
