Surface And Near Surface Cracks Huatec Magnetic Particle Testing
1pcs
MOQ
Surface And Near Surface Cracks Huatec Magnetic Particle Testing
Features Gallery Product Description Request A Quote
Features
Basic Infomation
Place of Origin: Beijing
Brand Name: HUATEC
Certification: ISO, CE, GOST
Model Number: HCDX-A
High Light:

huatec magnetic particle testing

,

huatec magnetic particle inspection

,

Magnetic Particle Testing Huatec

Payment & Shipping Terms
Packaging Details: Standard export package
Delivery Time: 1-4days
Payment Terms: T/T, Paypal, Western Union
Supply Ability: 500pcs per month
Specifications
Power Supply:: AC 220V ± 10% 50HZ 5A
Output:: AC 38V 10A
Inspection Speed:: ≥6 M/min
Weight: About: 6.5Kg (main Unit)
Product Name: Portable Magnetic Particle Testing Flaw Detector
Application: Mainly Used To Detect Surface And Near Surface Cracks Of Ferromagnetic Workpiece.
Lifting Force:: AC≥ 4.5kg DC≥18Kg
Pole Distance:: 20-160mm (adjustable)
Product Description

Surface And Near Surface CracksPortable Multifunction Magnetic Particle Flaw Detector HCDX-A



Introduction:

HCDX-A composite magnetic powder flaw detector adopts silicon controlled contactless switch, with low noise, strong magnetic force, long service life and simple operation, suitable for field and laboratory use. The instrument adopts combined configuration, and users can choose probe freely according to their needs. Type A, D, E, O probe can be configured according to user requirements.



Application:

Mainly used to detect surface and near surface cracks of ferromagnetic workpiece.

Boiler pressure vessel, steel structure, forgings, castings, welding parts, machined parts, etc.



The standard probes introduction for model HCDX-A:



Type A probe (horseshoe probe): suitable for all kinds of fillet weld, large workpiece inside and outside corners of local magnetization inspection, equipped with working lights.



Technical parameters:

Power supply: AC 220V ± 10% 50HZ 5A

Output: AC 38V 10A

Type A.D.E.O probes are optional and available

Inspection speed: ≥6 m/min

Temperature rise of probe: ≤60℃

Working beat: it is recommended to work for a long period of continuous operation: magnetizing time ≤3 seconds, gap time ≥5 seconds

Weight: about 6.5Kg (main unit)



Surface And Near Surface Cracks Huatec Magnetic Particle Testing 0

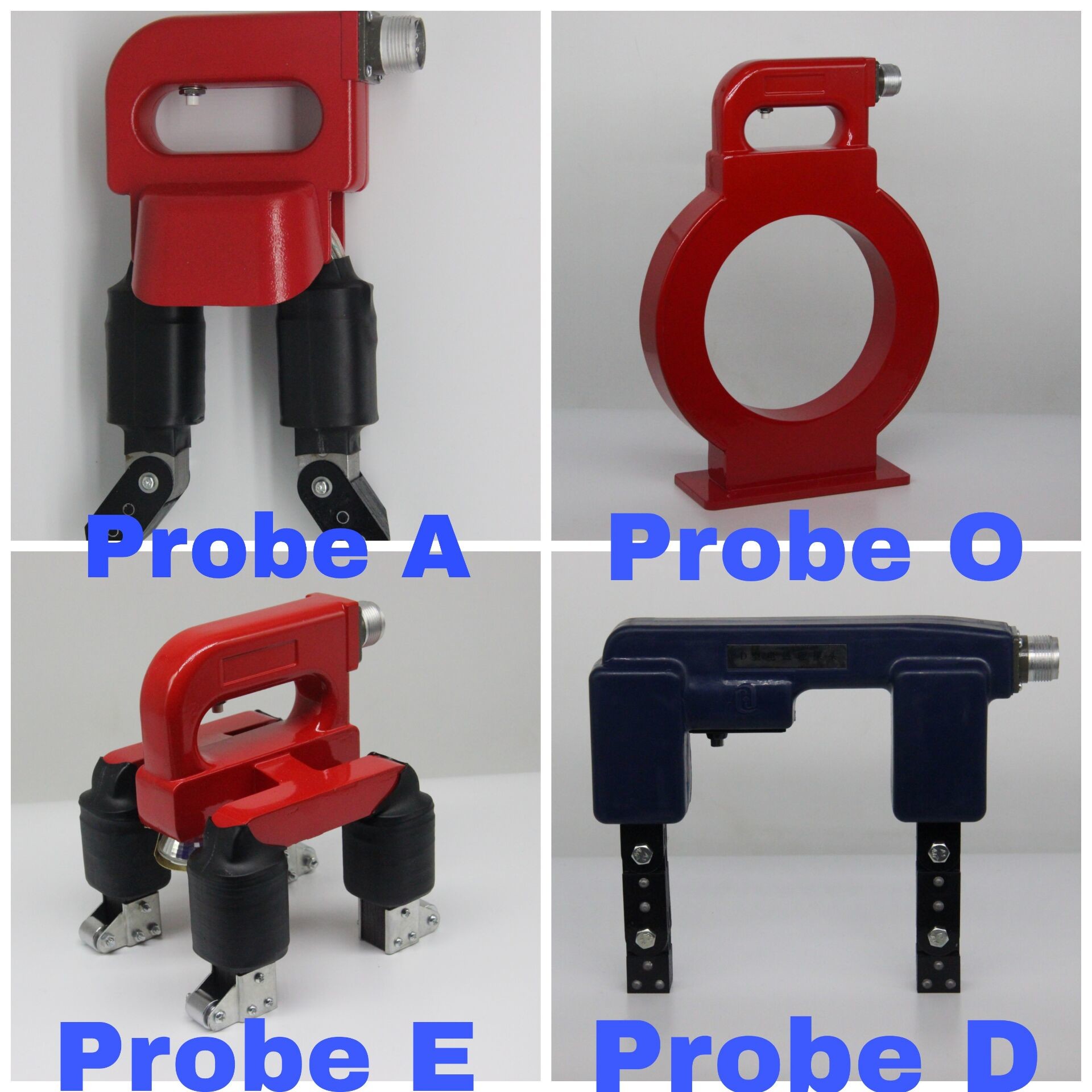

All optional probes parameters:

D type probe

Lifting force: AC≥5Kg DC≥18Kg (no joints)

Pole distance: 50-200mm (adjustable)

Operating current: ≥8A

Working voltage: AC=38V, DC=9V

Weight: 2.5 Kg

Atype probe

Lifting force: AC≥ 4.5kg DC≥18Kg

Pole distance: 20-160mm (adjustable)

Working voltage: AC=38V, DC=9V

Weight: 2.0 Kg

Otype probe

Central magnetic intensity: 180Oe

Working voltage: AC=38V

Inside diameter: 150 mm

Weight: 2.5 Kg

Etype probe

Lifting force: ≥12Kg

Distance: 110 mm

Operating current: ≥7A

Inspection speed: 6 m/min

Working voltage: 38 v left, 2

Weight: 3.0 Kg



Standard delivery:



Host HCDX-A   1

Type A probe   1

The power line 1

The probe line 1

Standard specimen 1

Operation manual   1

Certificate                1



Optional accessories:

Type A probe

O the probe

E probe

D probe

Dead weight

Test specimen

UV light



Surface And Near Surface Cracks Huatec Magnetic Particle Testing 1
