UV Radiometer UV-A Ultraviolet Irradiance Meter UV Light, Ultraviolet Illuminometer
1pcs
MOQ
UV Radiometer UV-A Ultraviolet Irradiance Meter UV Light, Ultraviolet Illuminometer
Features Gallery Product Description Request A Quote
Features
Basic Infomation
Place of Origin: Beijing
Brand Name: HUATEC
Certification: ISO, CE, GOST
Model Number: UV-A
High Light:

magnetic flaw detector

,

mt test specimen

Payment & Shipping Terms
Packaging Details: Standard export package
Delivery Time: 1-4days
Payment Terms: T/T, Paypal, Western Union
Supply Ability: 500pcs per month
Specifications
Material: ABS
Application: Measurement Of Light Sources And Irradiation Systems, Transmission Measurements, UV Radiation Safety
UV-365 Probe: λ:(320~400)nm;λP=365nm
UV-420 Probe: λ:(375~475)nm;λP=420nm
Measuring Range: (0.1~199.9×103)μW/cm2 Parasitic Light:UV365:less Than 0.02% UV420:less Than 0.02%
Accuracy: ±10%
Size And Weight: 180mm×80mm×36mm;0.2kg
Power: 9V Battery(6F22)1pc
Product Description

UV Radiometer UV-A Ultraviolet Irradiance Meter UV Light, Ultraviolet Illuminometer



Aplplication: Measuremen of light sources and irradiation systems, transmission measurements, UV radiation safety.

The instrument apply to different ultraviolet irradiation measurement field, such as photochemical, polymer materials aging, flaw detection, UV light source, plant cultivation and large scale integrated circuit



1.Features

(1)UV365 Probe:λ:(320~400)nm;λP=365nm

 (2)UV420 probe:λ:(375~475)nm;λP=420nm

Measuring range:(0.1~199.9×103)μW/cm2

Pparasitic light:UV365:less than 0.02%

              UV420:less than 0.02%

Cosine:According to China and international standard

Accuracy:±10%

Response time:1 second

Working environment:Temperature: (0~40)℃;Humidity<85%RH

Size and weight:180mm×80mm×36mm;0.2kg

Power:9V battery(6F22)1pc



UV Radiometer UV-A Ultraviolet Irradiance Meter UV Light, Ultraviolet Illuminometer 0





2, Structure

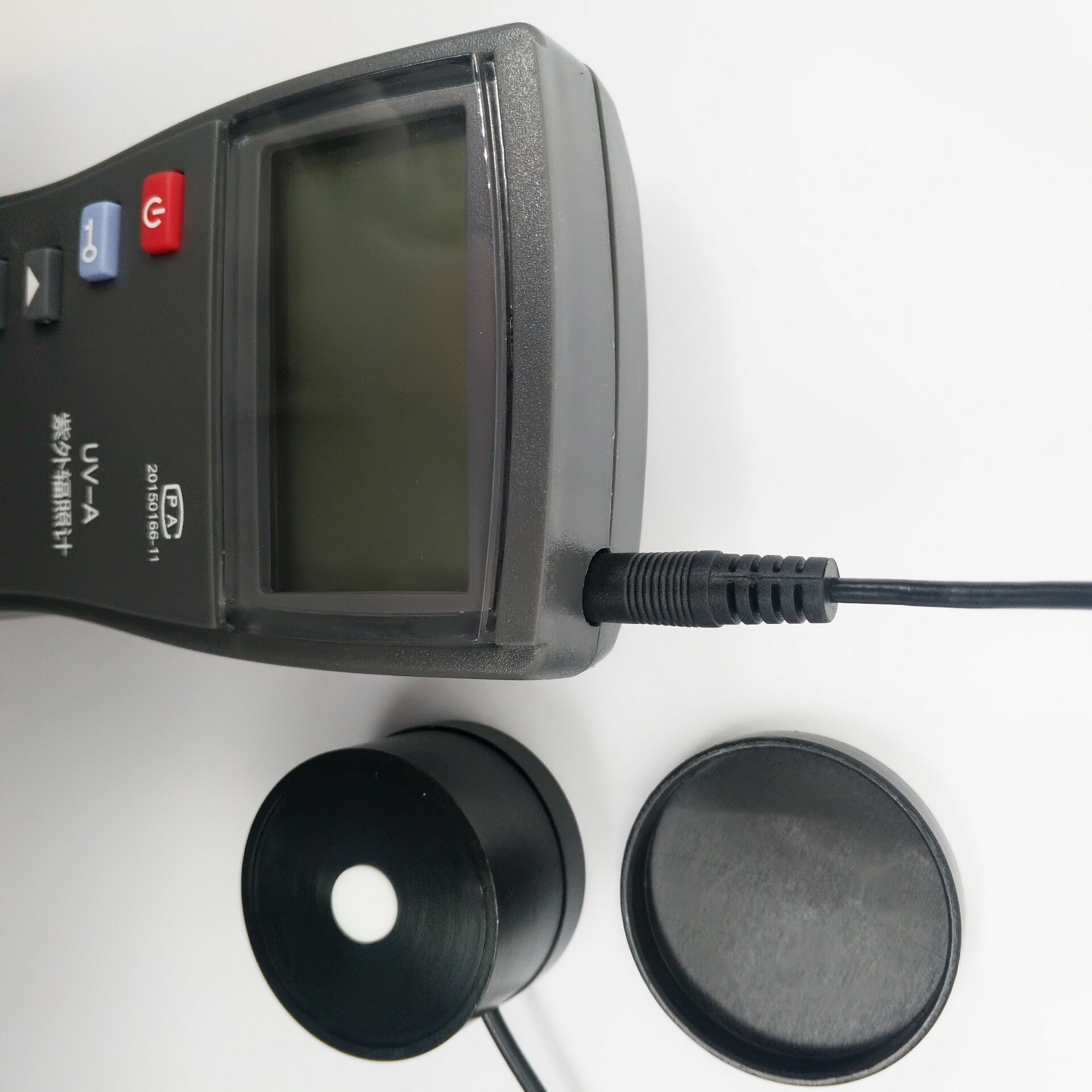

The instrument has two parts, UV365(or UV420) and reading unit. The two parts can be connected by cable using plug and socket.

The function of each key on the left as follows,

Power: connected state after pressing; off-state after raising this button.

Hold: data keep state after pressing, data sampling state after raising this button.(please raising this button when do measurement)

UV365 please pressing this button when uses 365 probe(raising UV420 button)

UV420 please pressing this button when uses 365 probe(raising UV420 button)

“×1”

“×10” ranges buttons

“×100”

“×1000”

3, Operation

  1. First please press the “power” button when do Ultraviolet irradiation degrees measurement. You need press the “UV365”(or UV420) button and the selected range button(note: please do not press “UV365” and “UV420” at the same time).

Then connect the 365 probe(or 420 probe) to the socket of the reading unit. Open the probe cover and put the photosurface of probe on the measure position. So the product of digital displayed on widow and range factor is irradiance value (unit: μW/cm2).

If want to keep the data, you can press “hold” button ( note, please press the “hold” button after raising range buttons). Raise the “hold” button after reading the value, recovering to sampling state.

Cut off the power button after measuring.

  1. If there is “1” on the left of display window, this means irradiance value overload or means that press the “hold” button mistakenly before pressing range buttons. This moment, please press larger range button or raising “hold button.
  2. When it shows “LOBAT” symbol on top left of display window, please change the battery.



4, Maintain

Please store the instrument in a clean environment, temperature (0~40)℃ and humidity <85%RH to avoid any damage.



5, Warranty

We can repair or change it during one year freely if there is any problems which is not caused by improper use and maintain.
