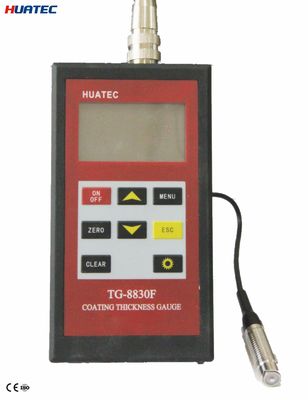

HIgh Resolution Coating Thickness Gauge TG8830F Auto Paint Thickness Gauge
TG8830F portable coating thickness gauge is using the magnetism measuring thickness method .
It can measure the thickness of the magnetism metal substrate (such as steel, iron, alloy and rigid magnetism steel and etc), non-magnetism cover layer (such as aluminum, chrome, copper, enamel, rubber, oil paint and etc) .
This instrument has small error of measure, excellent performance and good stability, easy operation and other characteristics, is a necessary measure instrument to control and guarantee the product quality, can be widely applied to manufacturing, metal processing industry, chemical industry, merchandise test fields.
Features
Technical Specification
|
Measuring range |
F1:0~1250μm, |
|
|
Measuring accuracy |
1 point calibration : ±(2%+1)2 point calibration : ±(1%+1) |
|
|
Calibration |
1 point calibration /2 point calibration /basic calibration |
|
|
Display resolution |
0.1um (0~99.9um) / 1um (Over 100um) |
|
|
Weight |
250g(including battery package ) |
|
|
Operation environment |
Temperature: 0℃~50℃ humidity: 20%RH～90%RH |
|
|
Operation mode |
Direct testing mode and block statistics mode |
|
|
Measuring mode |
continuous/single |
|
|
Shutdown mode |
manual/automatic |
|
|
Operation alarm |
Ring music to alarm mistake |
|
|
Signal Dealing |
||
|
Threshold |
Limits setting and automatically alarm measured values out of limit |
|
|
Data analysis |
Analyzing a batch of measuring values via histogram |
|
|
Statistic function |
Mean/ Standard deviation / Number of measurements/ Maximum/ Minimum |
|
|
Data Merory |
||
|
Thickness values |
500 measuring data |
|
|
Delete |
Single doubtful data / All data of one group |
|
|
Power supply |
||
|
Battery |
9V Nickel-hydride/ alkaline batteries |
|
|
Power battery inspection |
low voltage indication |
|
|

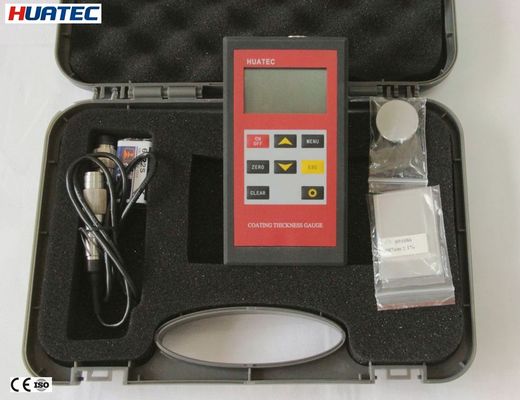

Standard delivery |
Main unit |
1 |
|
Integrated probe (F1) |
1 |
|
|
Calibration foil set |
4 |
|
|
Calibration base set |
1 |
|
|
9V alkaline battery |
1 |
|
|
Instruction manual |
1 |
|
