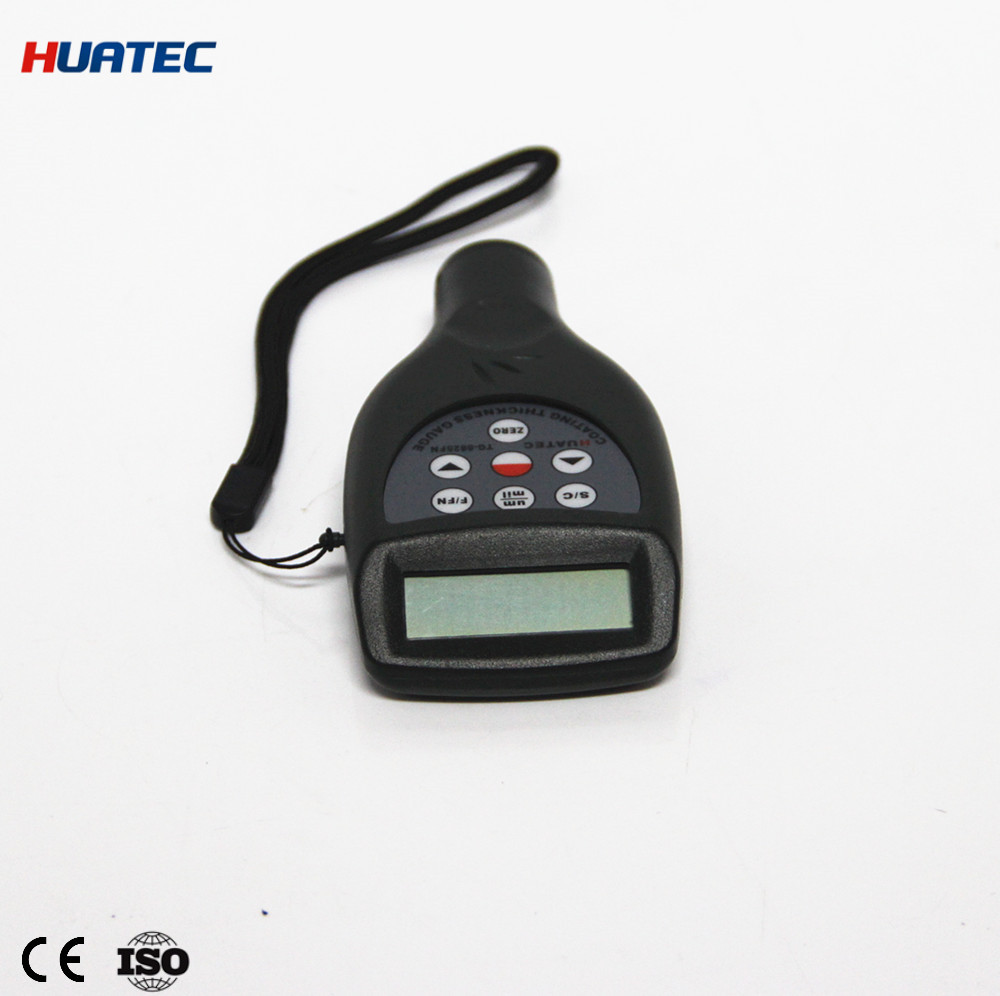

Magnetic Induction 1250um Coating Thickness Gauge TG8825paint Gauge Meter

Magnetic Induction 1250um Coating Thickness Gauge TG8825paint Gauge Meter
Features Gallery Product Description Request A Quote
High Light:

oating thickness tester


coating thickness meter

Basic Infomation
Place of Origin: Beijing
Brand Name: HUATEC
Certification: ISO, CE, GOST
Model Number: TG8825
Payment & Shipping Terms
Packaging Details: Standard export package
Delivery Time: 1-4days
Payment Terms: T/T, Paypal, Western Union
Supply Ability: 500pcs per month
Product Description
Coating Thickness Gauge TG8825(elecronic thickness gauge, paint thickness gauge, coating thickness, NDT Instruments, paint thickness, thickness gauge, coating inspection, paint inspection)
Magnetic Induction 1250um Coating Thickness Gauge TG8825paint Gauge Meter
Function: TG-8825F (ferrous substrate) TG-8825N (non ferrous substrate) TG-8825FN (2 in 1, F & NF type)
Measuring principle: magnetic induction & eddy current
Measurement range:0~1250um in built probe (integrated probe)
Resolution:0.1 um (under 100um) 1um (over 100um)
Accuracy: ±1~3%n or ±3um
Probe type recognition: Manual  (For TG-8825FN)
Measurement mode: single
Data output: RS232C interface (optional)
Power supply: 4x1.5V AAA(UM-4)battery
2 Shutdown models: manual / automatic
Dimension: 131x65x28mm


1. Coating thickness gauge TG-8825F can measure the thickness of non-magnetic coating layers (aluminum, chrome, copper, ename1, rubber, paint) on magnetic substrate (steel, iron, alloy and magnetic stainless steel)
2. Coating thickness gauge TG-8825N can measure the thickness of non-conductive coating layers (ename1, rubber, paint, vanish, plastic anodic oxide layer) covered on non-ferrous substrate (aluminum, brass, zinc, tin and non-magnetic stainless steel)



Standard Delivery of Paint Thickness Gauge TG8825FN:
Main unit(1250um)                        1
F type probe                                  1
N type probe                                 1
F calibration base set                    1
N calibration base set                   1
Calibration foil set                         1set (4 foils)
Carrying case                                1
Instruction manual                        1

Optional Accessories
Cable and software for RS-232C and or USB
