0.3 Mm Coating Thickness Gauge TG8826 paint Coating Thickness Tester

1pcs
MOQ
0.3 Mm Coating Thickness Gauge TG8826 paint Coating Thickness Tester
Features Gallery Product Description Request A Quote
Features
Specifications
Highlight:

oating thickness tester

,

coating thickness meter

Basic Infomation
Place of Origin: Beijing
Brand Name: HUATEC
Certification: ISO, CE, GOST
Model Number: TG8826
Payment & Shipping Terms
Packaging Details: Standard export package
Delivery Time: 1-4days
Payment Terms: T/T, Paypal, Western Union
Supply Ability: 500pcs per month
Product Description
0.3 Mm Coating Thickness Gauge TG8826 Paint Coating Thickness Tester

Description:
With separate probe(s)
Function: TG
-8826F (ferrous substrate) TG-8826N (non ferrous substrate) TG-8826FN (2 in 1, F & NF type)
Operating principle: magnetic induction/eddy current (F/NF)
Measuring range:0-1250um/0-50mil
Resolution; 0.1/1
Accuracy: ±1-3%n or ±2.5um
Min. measuring area: 6mm
Min. sample thickness: 0.3mm
Battery indicator: low battery indicator
Metric/ imperial: convertible
Power supply: 4x1.5V AAA(UM-4)battery
Auto power off
Operating conditions:0-+45℃(32℉-104℉), ≤90%RH
Dimensions: 126x65x27mm
weight: 81g(not including battery)
Optional accessories: other range 0-200um to 15000um



Application:
1. TG-8826F can measure the thickness of non-magnetic coating layers (aluminum, chrome, copper, ename1, rubber, paint) on magnetic substrate (steel, iron, alloy and magnetic stainless steel)
2. TG-8826N can measure the thickness of non-conductive coating layers (ename1, rubber, paint, vanish, plastic anodic oxide layer) covered on non-ferrous substrate (aluminum, brass, zinc, tin and non-magnetic stainless steel)

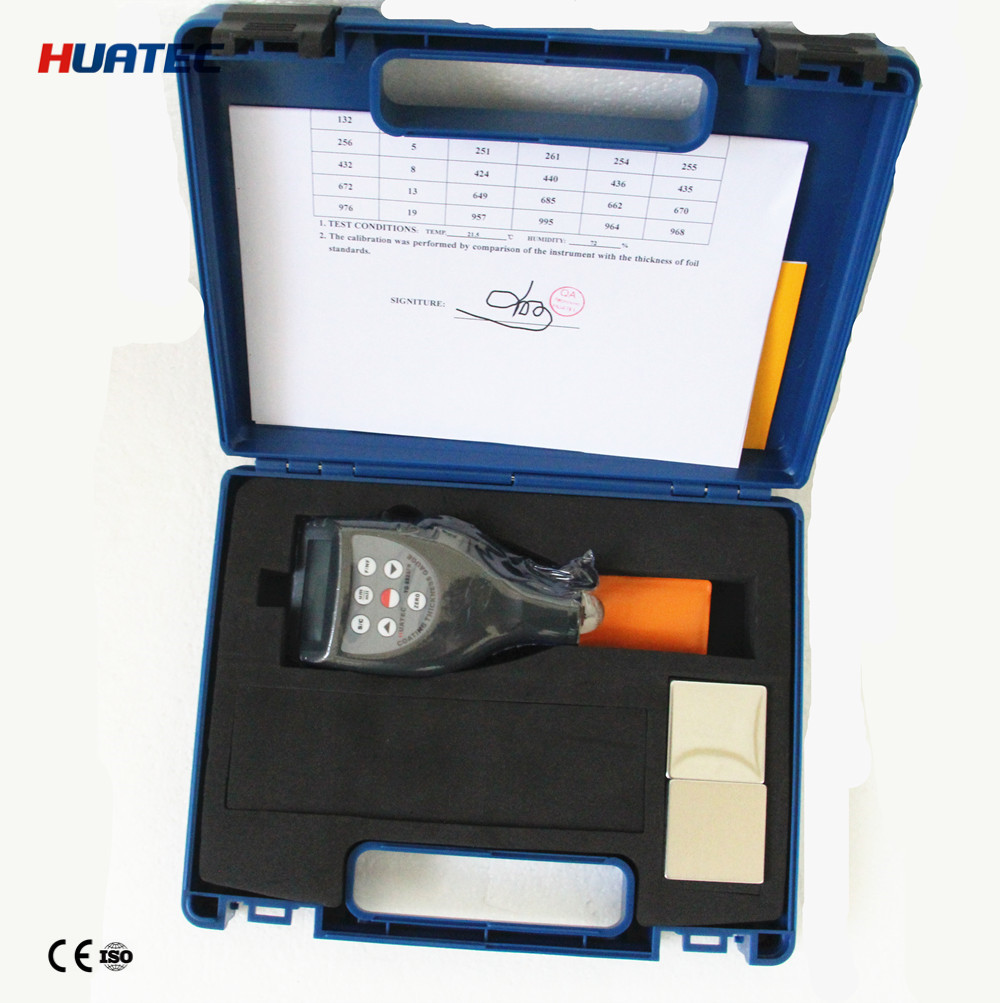

Standard Delivery of TG8826FN:
Main unit(1250um)                        1
F type probe                                 1
N type probe                                 1
F calibration base set                   1
N calibration base set                   1
Calibration foil set                         1set (4 foils)
Carrying case                               1
Instruction manual                       1

Optional Accessories
Cable and software for RS-232C and USB

Customized testing range
