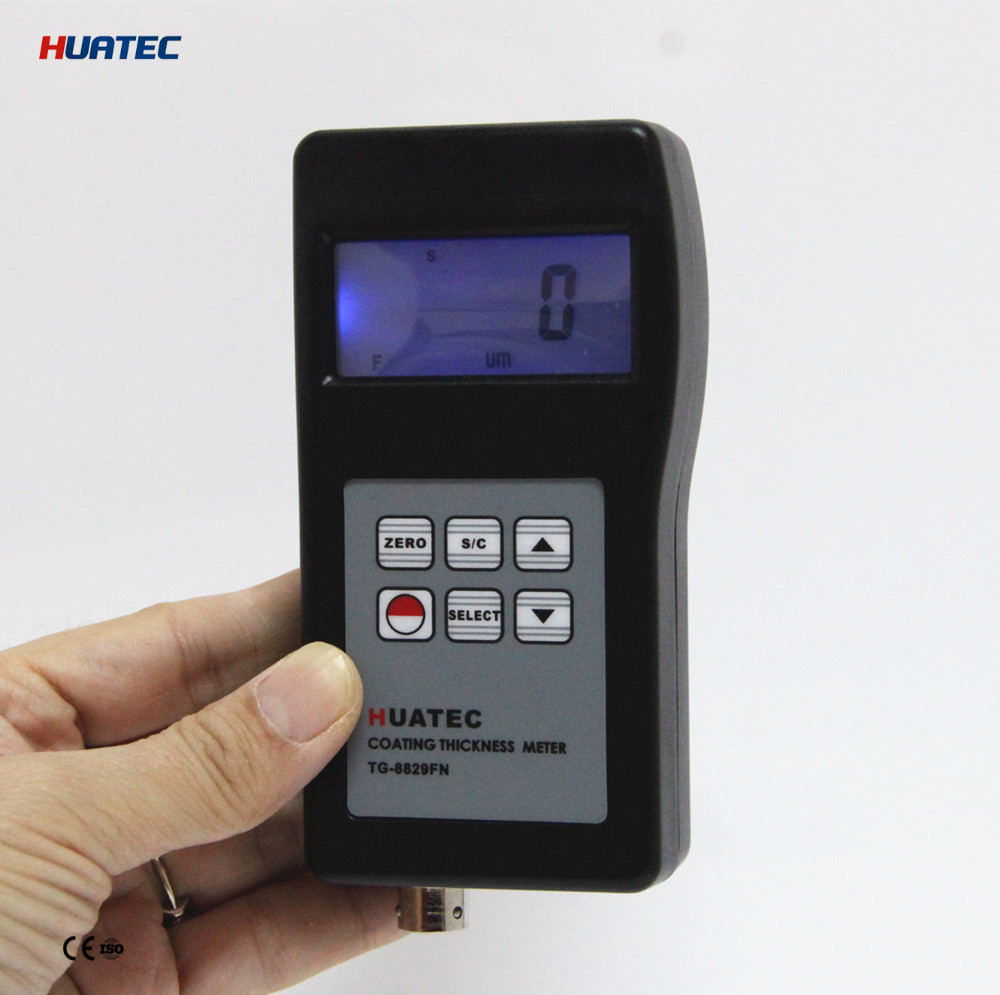

Coating Thickness Gauge TG8829, 0.1 / 1 Resolution 5mm Dry Film Thickness Meter
Product Description
Coating Thickness Gauge TG8829, Inspection equipment, film thickness gauge, paint thickness gauge, wet film thickness gauge, thickness gauge
Coating Thickness Gauge TG8829, 0.1 / 1 Resolution 5mm Dry Film Thickness Meter
Dry Film Thickness MeterDescription:
Operating principle: magnetic induction/eddy current (F/NF)
With separate probe(s)
Measuring range: 0-1250um/0-50mil
Resolution: 0.1/1
Accuracy: ±1-3%n or ±2.5um
Min. measuring area: 5mm
Min. sample thickness: 0.3mm
Battery indicator: low battery indicator
Metric/ imperial: convertible
Power supply: 4x1.5V AAA(UM-4)battery
Auto power off
Operating conditions: 0-+45℃(32℉-104℉), ≤90%RH
Dimensions: 124x62x30mm
weight: 115g
Standard Delivery of Dry Film Thickness Meter TG8829FN
Main unit 1
F type probe 1
N type probe 1
F calibration base set 1
N calibration base set 1
Calibration foil set 1set (4 foils)
Carrying case 1
Instruction manual 1
Optional Accessories of Dry Film Thickness Meter TG8829FN
Cable and software for RS-232C and or USB
