Ultrasonic Testing Thickness Measurement Ultrasonic Steel Thickness Gauge Ultrasonic Thickness Gauge TG3000

1pcs
MOQ
Ultrasonic Testing Thickness Measurement Ultrasonic Steel Thickness Gauge Ultrasonic Thickness Gauge TG3000
Features Gallery Product Description Request A Quote
Features
Specifications
Display: 4.5 Digits LCD With EL Backlight
Measuring Range: 0.75~300mm (in Steel)
Sound Velocity: 1000~9999 M/s
Resolution: 0.1mm
Accuracy: ±(0.5%Thickness+0.04)mm, Depends On Materials And Conditions
Size: 150×74×32 Mm
Weight: 245g
Highlight:

digital ultrasonic thickness gauge

,

through coating thickness gauge

Basic Infomation
Place of Origin: Beijing
Brand Name: HUATEC
Certification: ISO, CE, GOST
Model Number: TG3000
Payment & Shipping Terms
Packaging Details: Standard export package
Delivery Time: 1-4days
Payment Terms: T/T, Paypal, Western Union
Supply Ability: 500pcs per month
Product Description

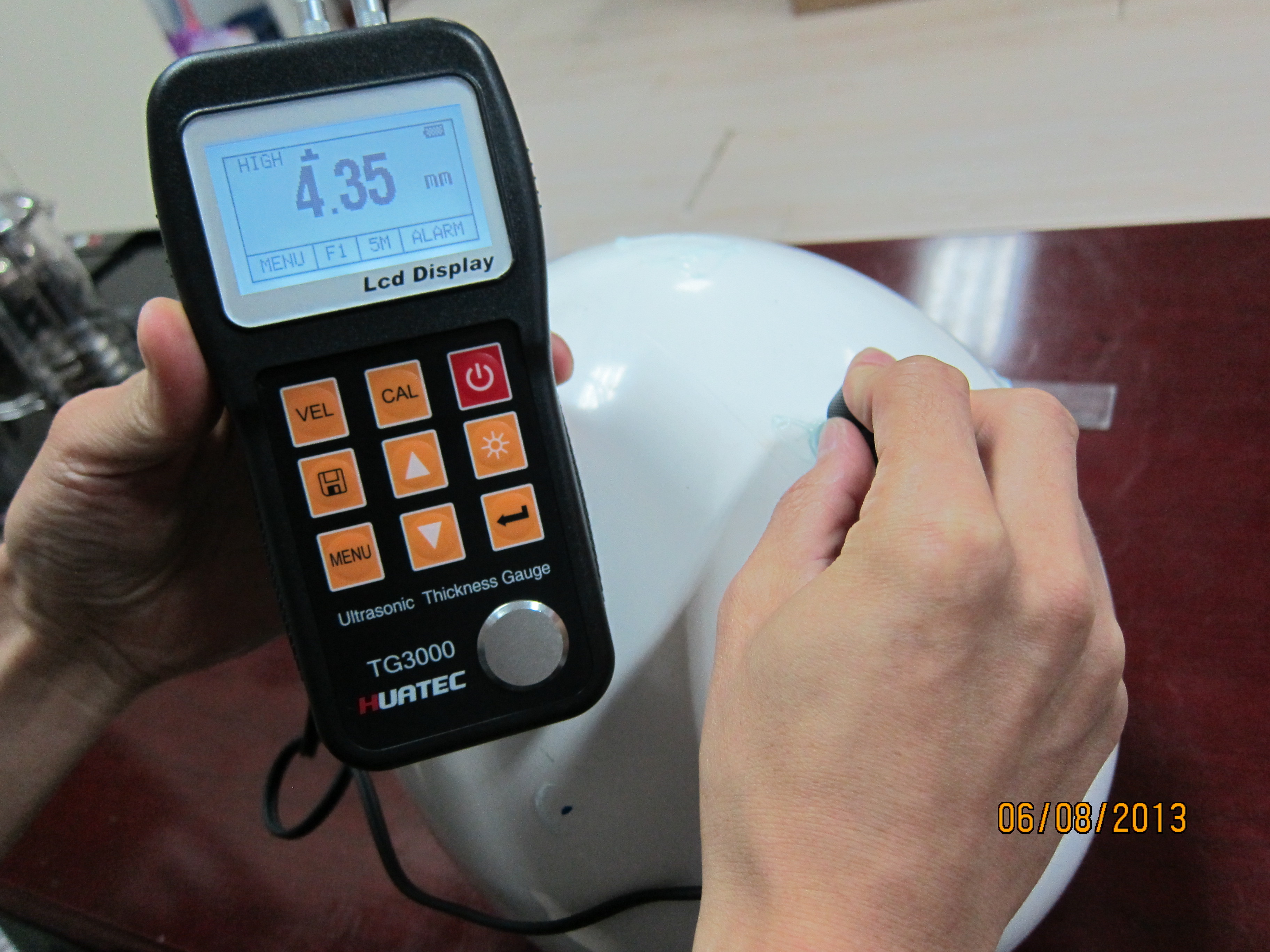

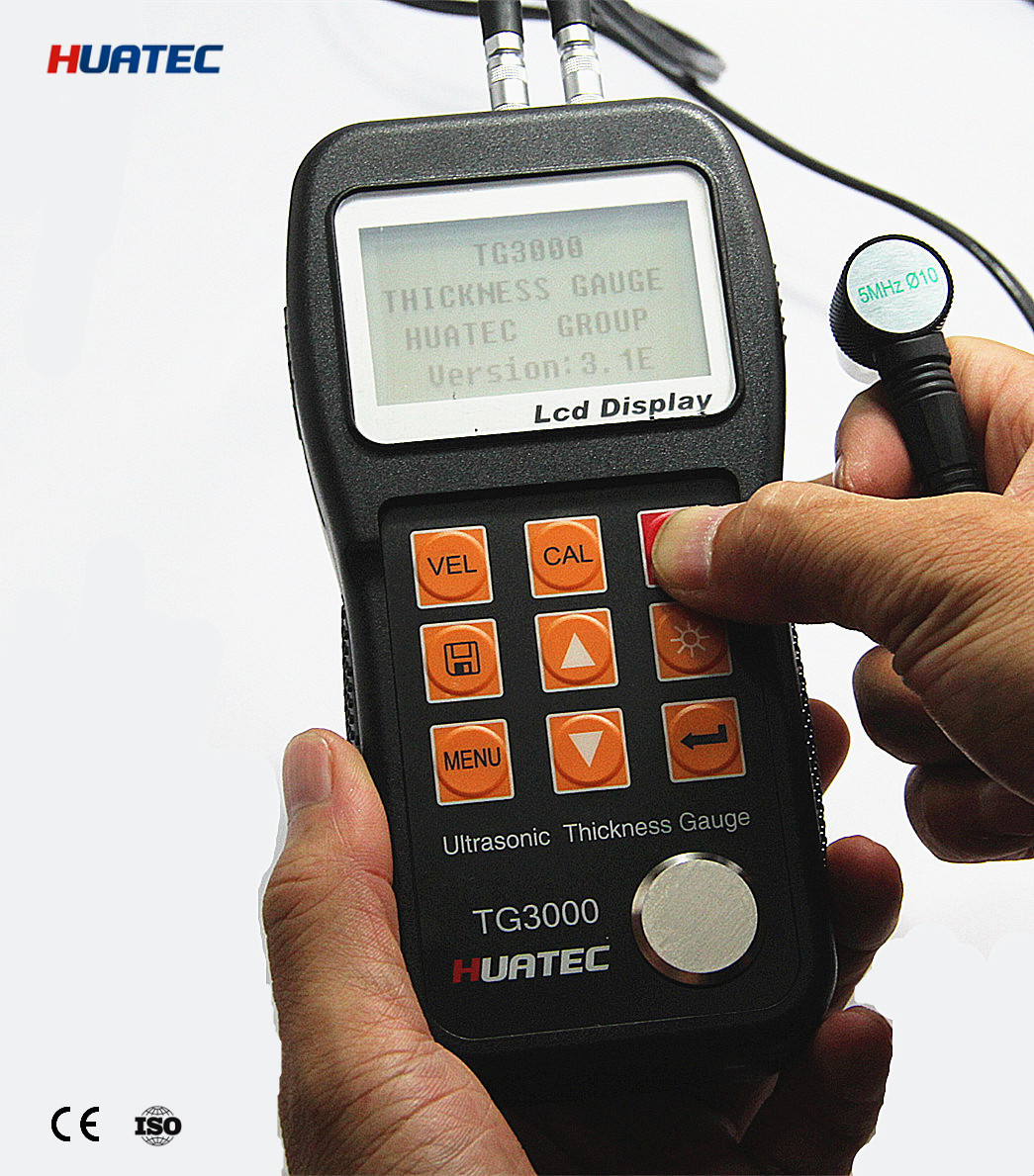

Ultrasonic Testing Thickness Measurement Ultrasonic Steel Thickness Gauge Ultrasonic Thickness Gauge TG3000

Main Features
1.Capable of performing measurements on a wide range of material, including metals, plastic, ceramics, composites, epoxies, glass and other ultrasonic wave well-conductive materials.
2.Transducer models are available for special application, including for coarse grain material and high temperature applications.
3.Two-Point Calibration function.
4.Two work modes: Single point mode and Scan mode.
5.Coupling status indicator showing the coupling status.
6.Auto sleep and auto power off function to conserve battery life.

Specifications
1.Display: 4.5 digits LCD with EL backlight.
2.Measuring Range:0.75~300mm (in Steel).
3.Sound Velocity Range: 1000~9999 m/s.
4.Resolution: 0.1mm.
5.Accuracy: ±(0.5%Thickness+0.04)mm, depends on materials and conditions
6.Units:Metric/Imperial unit selectable.
7.Four measurements readings per second for single point measurement, and ten per second for Scan Mode.
8.Memory for up to 20 files (up to 99 values for each file) of stored values.
9.Power Source:Two “AA” size, 1.5 Volt alkaline batteries. 100 hours typical operating time (EL backlight off).
10.Outline dimensions:150×74×32 mm. Weight:245g

Configuration


No.
Item
Quantity
Remarks
Standard Configuration
1
Main body
1

2
Transducer
1
Model: N05/90°
3
Couplant
1

4
Instrument Case
1

5
Operating Manual
1

6
Alkaline battery
2
AA size
Optional Configuration
7
Transducer: N02


8
Transducer: N07

9
Transducer: HT5


Probe optional
Model
Freq
MHZ
Diam
mm
Measuring Range
Lower limit
Description
N02
2
22
3.0mm~300.0mm(In Steel)
20
for thick, highly attenuating, or highly scattering materials
N05
5
10
1.2mm~230.0mm(In Steel)
Φ20mm×3.0mm
Normal Measurement
N05
/90°
5
10
1.2mm~230.0mm(In Steel)
Φ20mm×3.0mm
Normal Measurement
N07
7
6
0.75mm~80.0mm
(In Steel)
Φ15mm×2.0mm
For thin pipe wall or small curvature pipe wall measurement
HT5
5
14
3~200mm (In Steel)
30
For high temperature (lower than 300℃) measurement.
