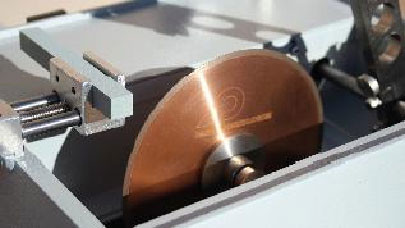

Precision Cutting Metallographic Sample Preparation With Diamond Grinding Wheel
HC-150 Cutting Equipment can be used to cut non-metallic material, circuit board, semiconductor, super hard material etc. Cutting precision 0.01mm. The machine equipped with many jigs, able to cut samples with irregular shape. It is an ideal precision cutting machine for the scientific research institutes and industrial enterprises.
Product Features
Main Technical Specifications
| Item | Specification | Remark |
| Grinding wheel (12.7mm,hole) | 150mm Ultra-thin cutting disc | |
| Speed range | 200-1500 r/min | customizable |
| Input voltage | single phase 220V,50/60Hz | |
| Motor power | 125W | |
| Overall Dimension | 405Lx 405W x 330H mm | |
| Weight | 30kg |
Accessories
| Item | Quantity | Item | Quantity |
| Single head jig | 1 | 32mm inset sample jig | 1 |
| Double head jig | 1 | 40mm inset sample jig | 1 |
| Irregular sample jig | 1 | Water drop jig | 1 |
| Long sample jig | 1 | Electroplate diamond grinding wheel (made in China) | 1 |
| Instruction | 1 | Power Cord | 1 |
| Warranty Card | 1 | Certificate, packing list | 1EACH |
Packaging and Shipping
Packaging: Standard export package, wooden case
Delivery: 5-10 days upon receipt of payment,depending on order quantity
Shipping: Can be shipped by sea, air or other means per request.
Our Services:
Warranty: One year
After sales service and maintenance: Lifelong
