A scan EMAT Air Coupling Ultrasonic Thickness Gauge with high temperature surface

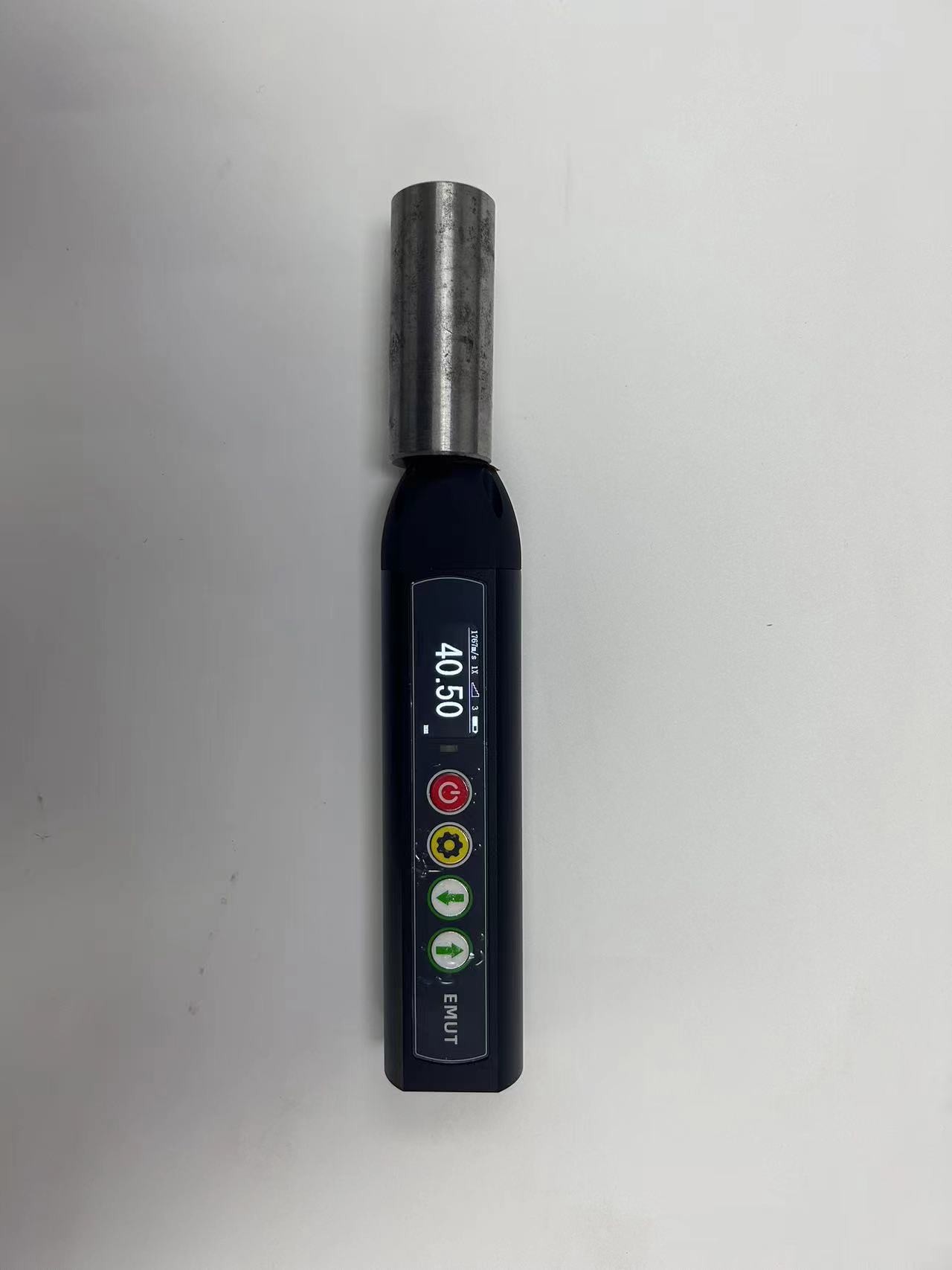

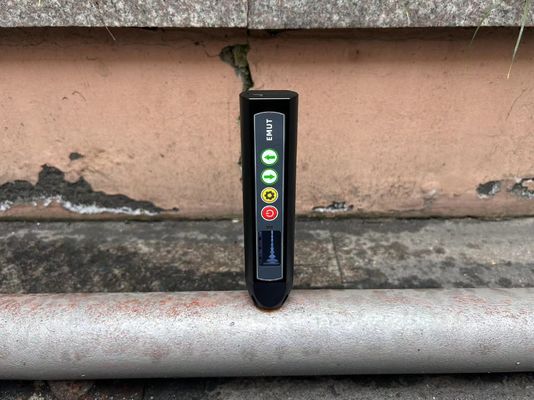

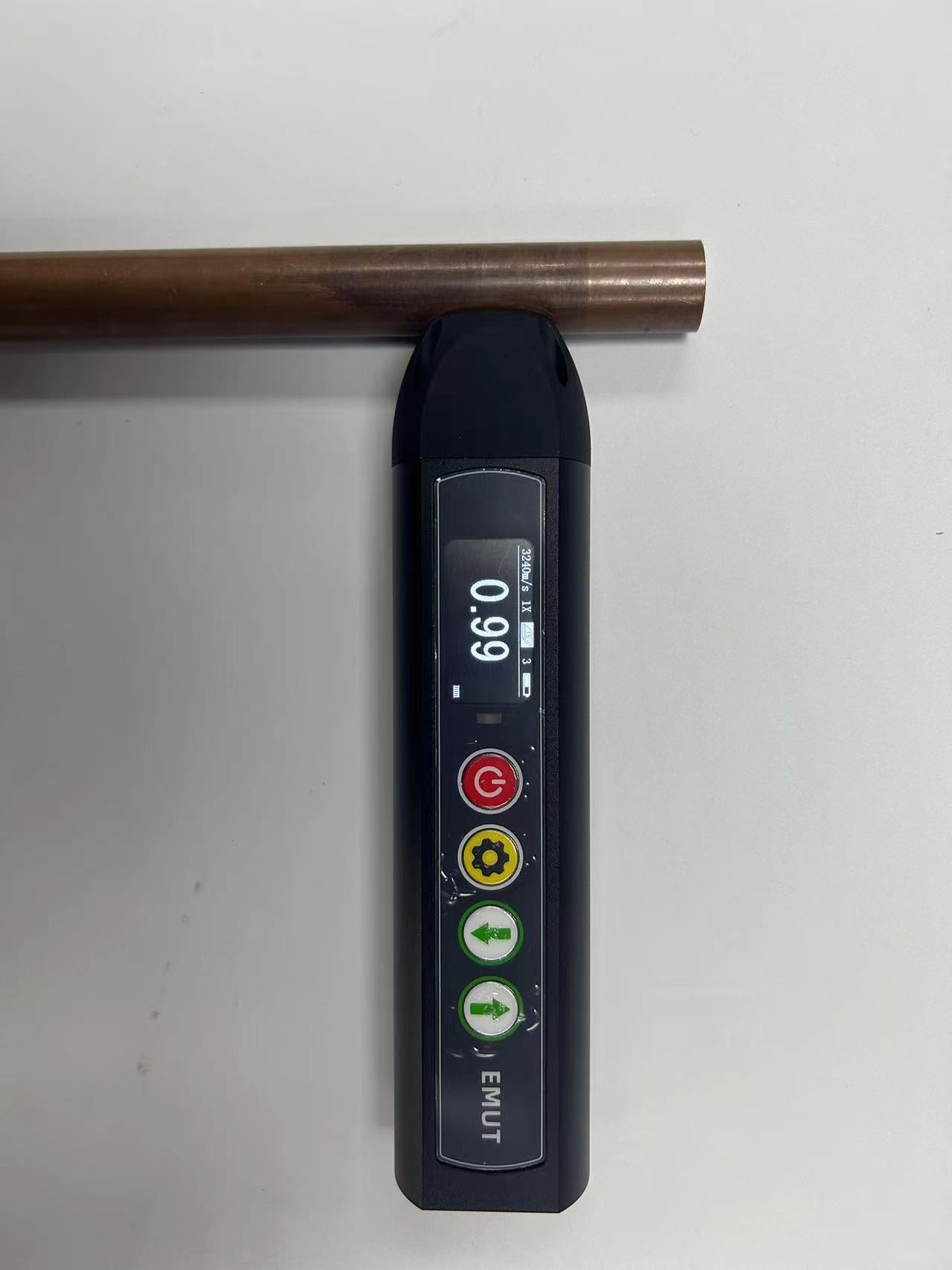

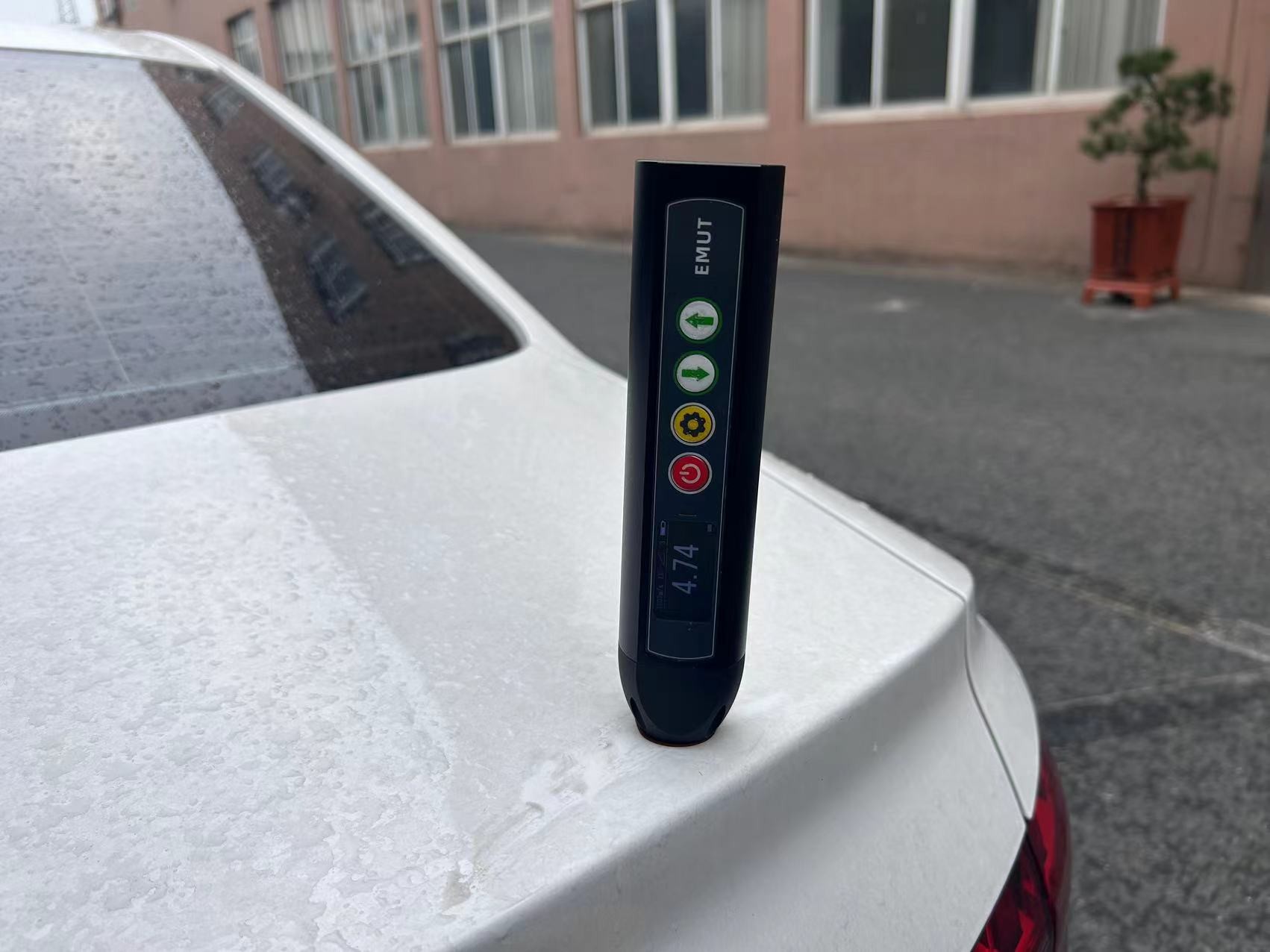

TG-140S A scan electromagnetic ultrasonic thickness gauge is a small pen type, air coupling thickness measurement gauge that does not require acoustic coupling agents. Widely used for thickness measurement of metal or magnetic materials.
Product Features
Basic Parameters
| Sampling rate | 80MSPS |
| Bandwidth | 2.5MHz～6MHz |
| Launch | ±600V_400Hz_125ns |
| Gain | Automatic 0～96dB,pace 1dB |
| Measurement accuracy | ±0.01mm |
| Sound velocity range | 400～9999 m/s |
| Effective range | 1.0～640 mm |
| Average level | L,M,H three-level adjustable |
| Lifting distance | 5mm(Aluminum), 4mm(Carbon steel), 3mm(Stainless steel) |
| Measurement range | Measure carbon steel — 1X:160mm 2X:320mm 3X:640mm |
| Measurement type | Aluminum, copper, iron, carbon steel, cast steel, alloy steel, stainless steel, titanium alloy and other metal materials |
| Measurement channel | Thin parts, common, bars |
| Measurement mode | Single echo(I-E), Dual echo(E-E) |
| Search mode |
Frontier-Frontier mode, Wave crest-Wave crest mode, Wave crest-Frontier mode |
| Auxiliary functions | Auto freeze, Auto gain, Auto sleep, A-Scan waveform display |
| Revised function | Gate height adjustment, delayed fade adjustment, manual gain adjustment, sound velocity calibration, high temperature compensation |
| Communication Interface | RS-485 or USB2.0 |
| Charger | 5V2A, Standard Type-C interface |
| Display screen | 1.47 inch 320× 172 IPS_LCD |
| Dimension | 178.4 mm× 42 mm× 32 mm |
| Battery life | 3.7V 3400mAh Lithium battery, 6 hours of battery life |
| Bare weight |
A Metal shell: 358g B Injection molded shell: 255g C Injection molded + quick release: 289g |
Standard delivery
HUATEC TG-140S electromagnetic ultrasonic thickness gauge
Normal temperature probe 4MHz,Φ42mm*32mm
Instruction manual
Calibration certificate
Charging data cable
Charging plug
Iron based test block
Aluminum based test block
Packing box
Optional accessories
High temperature upto 800degrees
High frequency probe

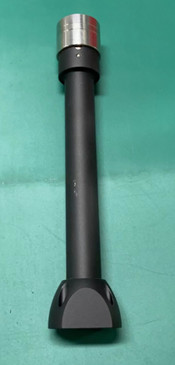

High temperature low frequency probe
Small diameter normal temperature probe 4MHz,Φ13mm*36mm
Large diameter normal temperature probe 4MHz,Φ40mm*60mm
