Ut Thickness Meter Measure Ultra Thin Workpieces Down To 0.15mm Two Points

1pcs
MOQ
Ut Thickness Meter Measure Ultra Thin Workpieces Down To 0.15mm Two Points
Features Gallery Product Description Request A Quote
Features
Specifications
Christal: Single Element
Resolution: 0.001mm
Material: ABS
Product Name: Ut Thickness Meter
Weight: 210g Including Batteries
Measuring Range (for Steel): Interface-Echo Mode: 1.50mm– 20.0mm,Echo-Echo Mode:0.3-10.0mm
Accuracy: ±0.005mm Or 0.0002 Inch (if Thickness < 3mm),±0.05mm Or 0.002 Inch (if Thickness < 20mm)
Display: 42×57mm LCD Size With EI Backlight And Adjustable Contrast, Font Size Up To 13.75mm (0.54 Inch)
Size: 2.9 W X 5.9 H X 1.26 D Inches (73 W X 149 H X 32 D Mm).
Communication Port: USB Port Or Serial RS 232 Port (Optional)
Highlight:

Two Points Thickness Meter

,

Ultra Thin Workpieces Thickness Meter

,

0.15mm Thickness Meter

Basic Infomation
Place of Origin: Beijing
Brand Name: HUATEC
Certification: ISO, CE, GOST
Model Number: TG-3230
Payment & Shipping Terms
Packaging Details: Standard export package
Delivery Time: 1-4days
Payment Terms: T/T, Paypal, Western Union
Supply Ability: 500pcs per month
Product Description

Measure Ultra-Thin Workpieces Down To 0.15mm Two Points Ut Thickness Meter





TG-3230 is a simple to use, hand-held UT thickness meter for high precision, high resolution and ultra thin thickness measurement.

It uses nowadays the most advanced microprocessor and ultrasonic technology to offer users many outstanding features.

It presents highly stable and repeatable reading, high accuracy and resolution( up to 0.001mm or 0.0001inch ) and ability for measuring ultra thin sample ( as low as 0.20mm or 0.008inch).

It also offers a compact, comfortable and durable structure, ease of operation through the menu, multiple language selection, low power consumption ( with two dry or optional rechargeable AA batteries).

These features along with its high quality probe make TG-3230 unequalled in its performance as well as its value!



MAIN FEATURES

    * Very high accuracy and resolution: up to 0.001mm or 0.0001 inch
    * Measure ultra thin sample as low as 0.20mm or 0.008 inch
    * Display units:Imperlal and metric
    * Automatic self calibration
    * Couplant indicator
    * Automatic power off function
    * High-low limit alarm function
    * Lcd brightness adjust function
    * Low battery indictor function



TECHNICAL SPECIFICATIONS

Measuring Range (for steel)

Interface-Echo Mode:

(I-E or Standard Mode)

1.50mm– 20.0mm

(0.059in – 0.787 in)

Echo-Echo Mode:

(E-E or High Precision Mode)

0.2mm– 10.0mm

(0.006in – 0.394in)

Measuring Accuracy

±0.005mm or 0.0002 inch (if thickness < 3mm)

±0.05mm or 0.002 inch (if thickness < 20mm)

Display Resolution

mm : 0.1 / 0.01 / 0.001

inch : 0.01 / 0.001 / 0.0001

Sound Velocity Range

1000 to 9999 m/sec (0.0394 – 0.3936 inch/ms)

Measuring Refresh Frequency

4Hz in normal mode, up to 25Hz

Memory Capacity

500 test values

Multiple Calibrations

One point or Two Point

Display LCD

42×57mm LCD size with EI backlight and adjustable contrast, font size up to 13.75mm (0.54 inch)

Power Source

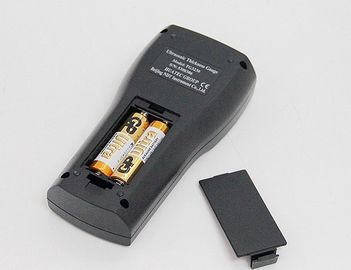

2 pcs. 1.5v AA size batteries

Continuous working period

About 200 hours (with backlight off)

Power off

Auto power off if idle for 4 minutes

Operating Temperature

-10 °Cto +50 °C

Unit Size

2.9 W x 5.9 H x 1.26 D inches (73 W x 149 H x 32 D mm).

Weight

200g



Ut Thickness Meter Measure Ultra Thin Workpieces Down To 0.15mm Two Points 0



MEASURING PROCESS



If the word-piece is not steel or other iron-based materials, make sure to input correct sound velocity value for the sample to be tested.



Put some proper coupling paste on the work-piece, then place the probe on the surface of the sample with some press force. The thickness value will display on LCD screen in either mm or inch. The gauge shows the measuring result whenever the probe is coupled with the work-piece for longer than 2 seconds with coupling paste.





STANDARD DELIVERY

  1. Ultrasonic Thickness Gauge TG3230 Main unit with Calibration block (4.00 mm)

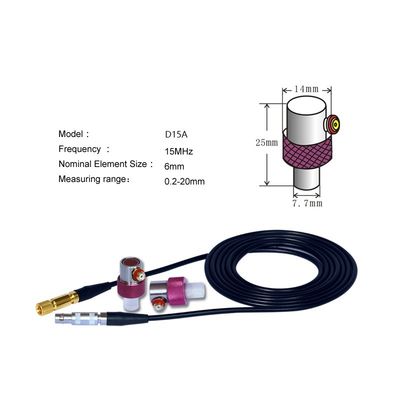

  2. Precision Probe (D15A) with Replaceable Delay Tip, see photo below
  3. Coupling Paste
  4. Operation Manual and Calibration Certificate
  5. Consumer-Type 2 AA Type Alkaline Battery (3 Volt)
  6. Carrying Case
