Air Couplant High Temperature Ultrasonic Thickness Gauge Probe And Emat Ultrasonic Gauge
Air Couplant High Temperature Ultrasonic Thickness Gauge Probe And Emat Ultrasonic Gauge
Features Gallery Product Description Request A Quote
Basic Infomation
Place of Origin: Beijing
Brand Name: HUATEC
Certification: ISO, CE, GOST
Model Number: TG-14
High Light:

air couplant ultrasonic thickness gauge probe


high temperature ultrasonic thickness gauge probe


high temperature ultrasonic thickness probe

Payment & Shipping Terms
Packaging Details: Standard export package
Delivery Time: 1-4days
Payment Terms: T/T, Paypal, Western Union
Supply Ability: 600pcs per month
Material: ABS
Testing Range: 1.5~240mm
Lifting Clearance: 0~3mm
Operating Frequency: 4MHz
High Temperature Sound Speed Compensation: Automatic Compensation
Temperature Range: -150~800℃(higher Temperature Can Be Customized)
Resolution: 0.01mm
Adjustable Range Of Sound Speed: 1000~9999m/s
Continuous Working Time: 3 Hours
Size: 151*76*35mm
Weight: 220g
Product Name: Non Contact Metal Thickness Gauge
Testing Temp: Upto 800 Degrees C
Product Description

Air Couplant HIgh Temperature Ultrasonic Thickness Gauge Probe And EMAT Ultrasonic Gauge


Top Features

Pocket type, no coupling agent, and non-contact thickness gauge


Electromagnetic principle


Human body engineering design, compact structure, super small volume, easy to carry, hand-held operation, strong magnetic absorption, improve fatigue conditions


Accurate thickness measurement, can pass through the coating, professional algorithm program support, do not need to coupling agent, do not need to grind the workpiece surface, allow the detected surface paint and wrapping layer, allow the workpiece surface uneven


Multi-material sound velocity can be pre-stored in the instrument, and the material sound velocity can be dynamically added and deleted at the same time. The sound velocity calibration increases the temperature compensation function, and effectively improves the measurement accuracy


Corrosion layers are allowed and the measurement can be improved with a maximum increase distance of 3mm


Main application

With function of no coupling agent, and non-contact, with normal temperature and also high temperature, electromagnetic ultrasonic thickness gauge TG-14 can test thickness of all kinds of conductor material such as titanium, aluminum, copper, stainless steel, alloy steel, carbon steel and cast steel.


Technical parameter

Testing range: 1.5~240mm

Lifting clearance to work piece: 0~3mm

Operating frequency: 4MHz

Ambient temperature: -20 ° C to +50

High temperature sound speed compensation: automatic compensation

Temperature range: -150~800℃(higher temperature can be customized)

Probe type: standard room temperature probe, optional high temperature, high frequency probe, high temperature low frequency probe, B scanning probe

Resolution: 0.01mm

Adjustable range of sound speed: 1000~9999m/s

Continuous working time: 3h

Size: 151*76*35mm

Weight: 220g

Excitation mode: permanent magnet

Error range: ≤10mm, error ±0.05mm (> 10 mm + / - 0.01 + H / 200) mm (H is the thickness of the workpiece)

Power supply: lithium rechargeable battery

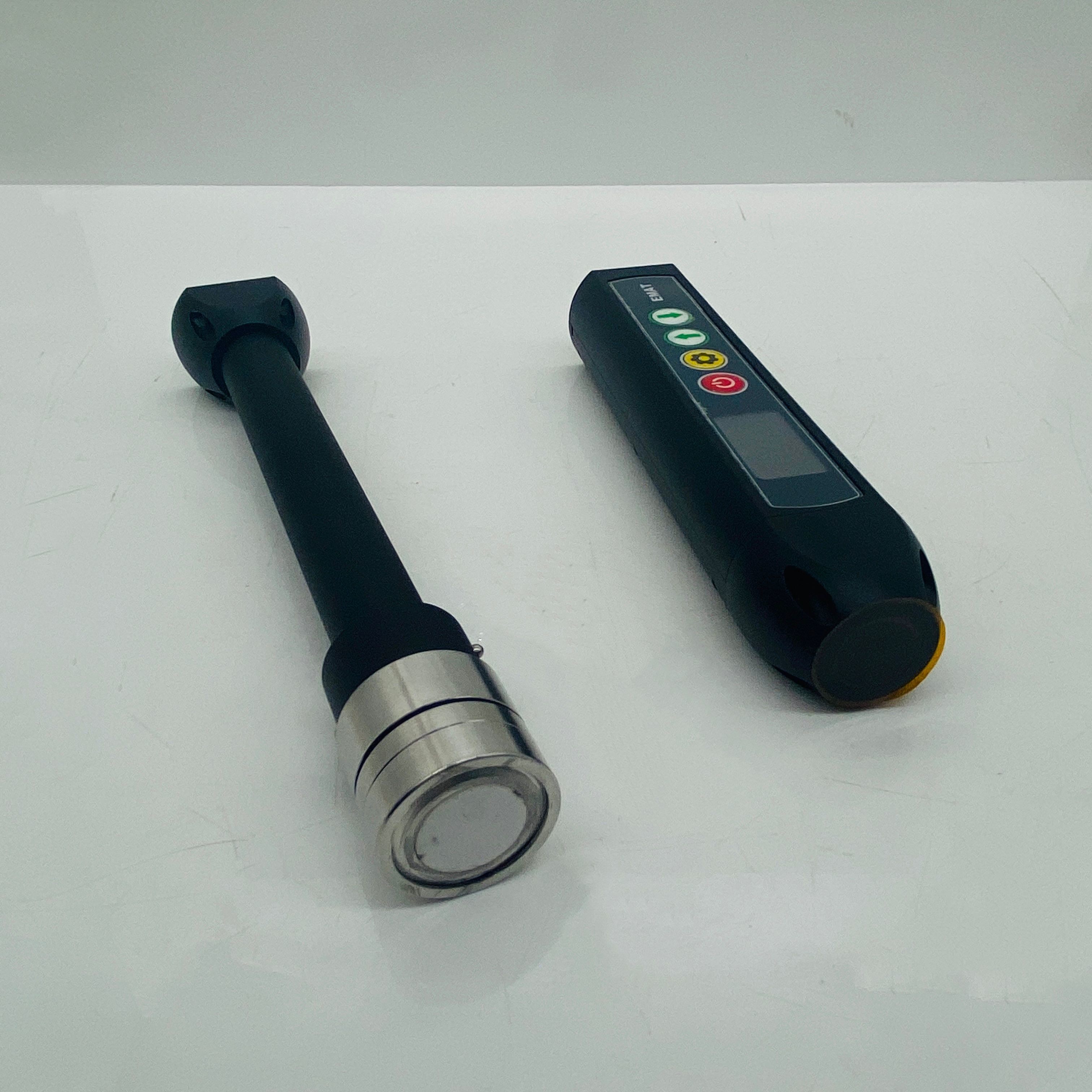

Air Couplant High Temperature Ultrasonic Thickness Gauge Probe And Emat Ultrasonic Gauge 0

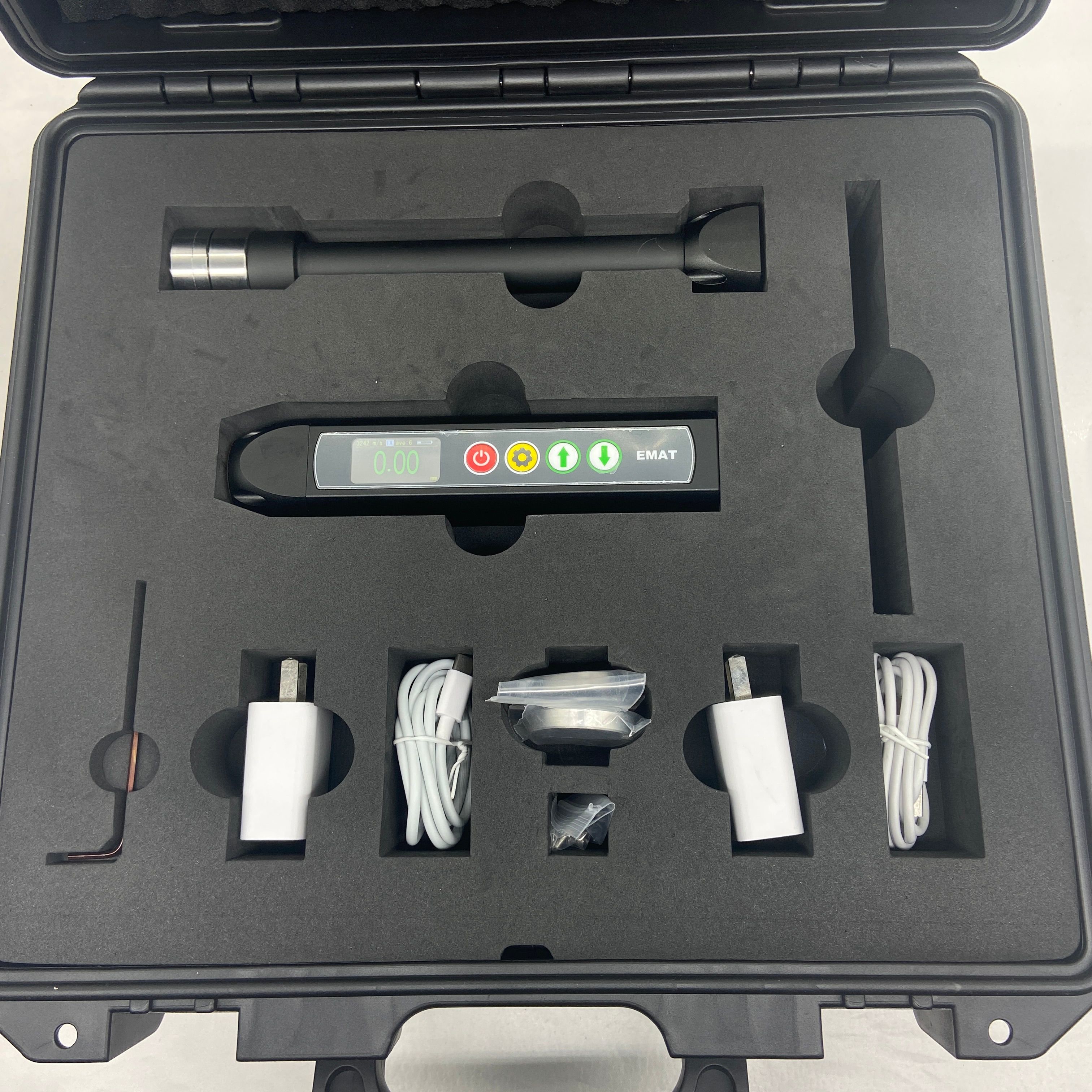

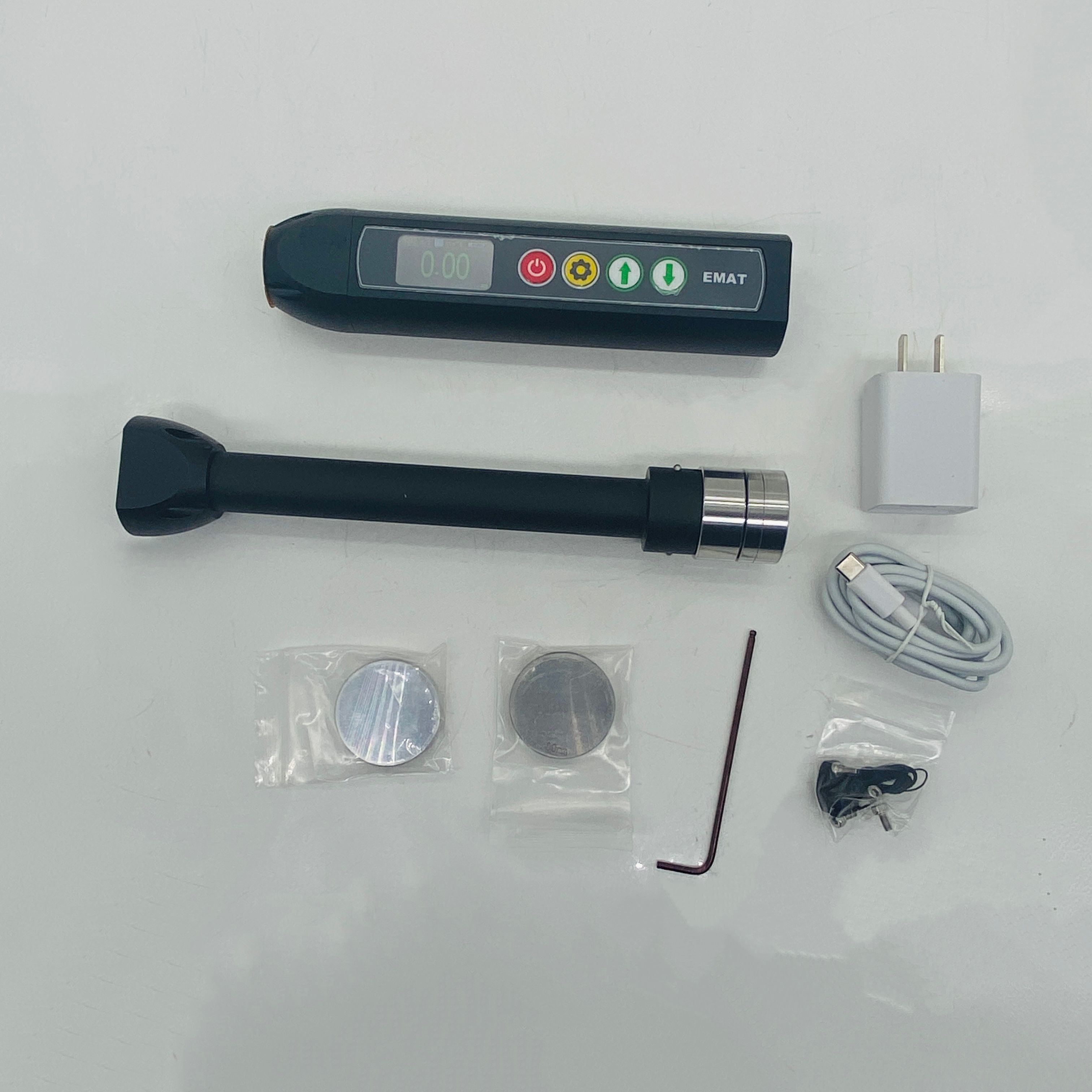

Standard delivery

HUATEC TG-14 electromagnetic ultrasonic thickness gauge

Normal temperature probe

Instruction manual

Calibration certificate

Carrying case


Optional accessories

High temperature upto 800degrees

High frequency probe

High temperature low frequency probe

B scanning probe
