62.5-3000 Kgf Closed Loop Brinell Testing Machine Auto Turret Touch Screen Bench Type

1pcs
MOQ
62.5-3000 Kgf Closed Loop Brinell Testing Machine Auto Turret Touch Screen Bench Type
Features Gallery Product Description Request A Quote
Features
Specifications
Digital Screen: Touch Screen
Advanced Technology: Auto Turret, Closed-loop Pressure Control, Automatic Loading, Automatic Load;
Wide Force Measurement Range: From 62.5 To 3000 Kg
Indentation Measurement Resolution: 1 Micron
Ball Diameter Error Of Less Than: +/- 1 Micron
USB Interface: U Disc, Excel File
High Light:

auto turret brinell testing machine

,

touch screen brinell testing machine

,

bench type brinell hardness testing machine

Basic Infomation
Place of Origin: Beijing
Brand Name: HUATEC
Certification: ISO, CE, GOST
Model Number: HB-3000XP
Payment & Shipping Terms
Packaging Details: Standard export package
Delivery Time: 1-4days
Payment Terms: T/T, Paypal, Western Union
Supply Ability: 500pcs per month
Product Description

62.5-3000kgf Closed Loop Auto Turret Brinell Machine With Touch Screen Bench Type



Main feature:

  1. Electric loading, high precision sensor, with a unique closed-loop control system, each force is automatically compensated.
  2. Italian large body design, large sample space, can place large samples.
  3. Force range is wide, from 62.5-3000kgf, 10 kinds of bruckner scale, user can customize.
  4. The indenter and objective lens can be automatically switched during the test, and the test point can be automatically positioned accurately.
  5. Eyepiece structure with digital encoder, measure D1, D2 value, LCD display hardness value and D1, D2 value directly.
  6. Can be calibrated according to the standard hardness block or length scale.
  7. Test force can be automatically corrected by standard dynamometer.
  8. The hardness value of Rockwell and Vickers can be converted.
  9. Touch screen interface, easy to operate, can input samples, testers and other information.
  10. Data U disk is directly saved in EXCEL format for editing and processing.

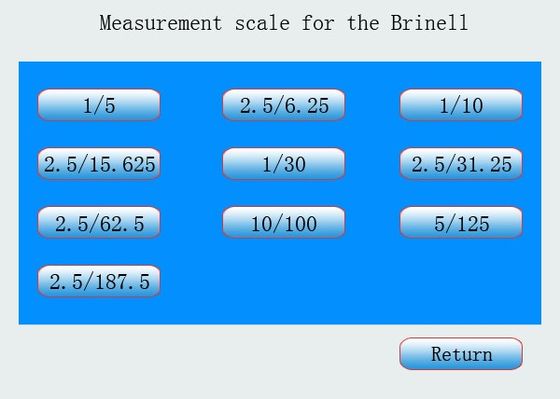

62.5-3000 Kgf Closed Loop Brinell Testing Machine Auto Turret Touch Screen Bench Type 0



Technical specification:

Model HB-3000XP
Brinell scale HBW2.5/62.5 HBW2.5/187.5 HBW5/62.5 HBW5/125 HBW5/250 HBW5/750 HBW10/100 HBW10/250 HBW10/500 HBW10/1000 HBW10/1500 HBW10/3000
Test force(Kgf)

62.5Kgf(612.9N) 100Kgf(980.7N) 125Kgf(1226N)

187.5Kgf(1839N) 250Kgf(2452N) 500Kgf(4903N) 750Kgf(7355N) 1000Kgf(8907N) 1500Kgf(14710N) 3000Kgf(29420N)

Carried standard BSEN 6506, ISO 6506, ASTM E10, GB/T231
Test force accuracy 62.5~250Kgf≤1% 500~3000Kgf≤0.5%
Measurement device resolution 0.1um
Hardness resolution 0.1HBW
Hardness measurement range 3.18-653HBW
Dwell time 0~99S
Data output LCD display
Data storage Measurement data saved as EXCEL format in U disk
Max height of specimen 320mm (400mm optional)
Distance of indenter to outer wall 250mm
Dimension 700×340×970mm (700×340×1050mm optional)
Weight 160kg (170kg optional)
Power supply AC220+5%,50~60Hz


Standard accessories:

Item Quantity Item Quantity
Eyepiece 1 Large, Medium, “V” shaped Testing Table Each 1
Diameter 2.5,5,10mm Hard Alloy Steel Ball Indenter Total 3 Standard hardness test block(HBW10/3000, HBW10/1000,HBW2.5/187.5) Total 3
U disk, touch pen Each 1 Dust bag 1
Power cord 1 Fuse 2A 2
Certificate ,warranty card 1 Manual 1




Optional accessories

1, Eyepiece 10X;

2, Eyepiece 15X;

3, Brinell hardness indentation video measuring device:

Used for digital display of indentation of brinell/micro/vickers hardness tester on the video screen, instead of eyepiece observation, to determine the indentation boundary, in order to measure the hardness;

4, Brinell measurement software:

The indentation will be clearly displayed on the computer screen, and automatic or manual measurement;

5, Hardness tester table;

6, Various test blocks





Optional hardness calibration blocks

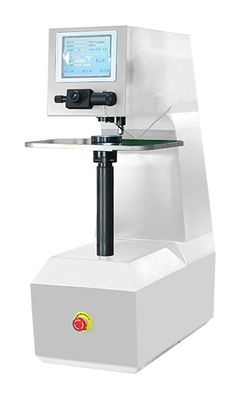

62.5-3000 Kgf Closed Loop Brinell Testing Machine Auto Turret Touch Screen Bench Type 1
