High Temperature Electromagnetic Thickness Meter No Coupling Agent Non Contact Thickness Gauge
Features

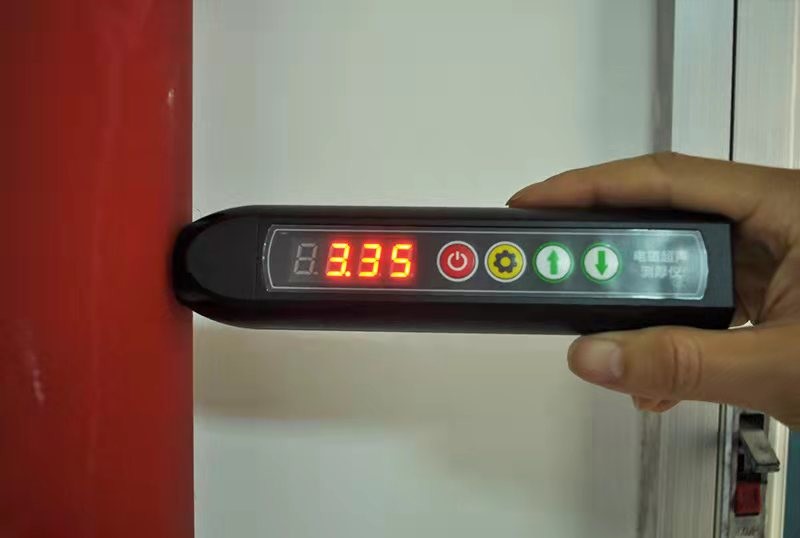

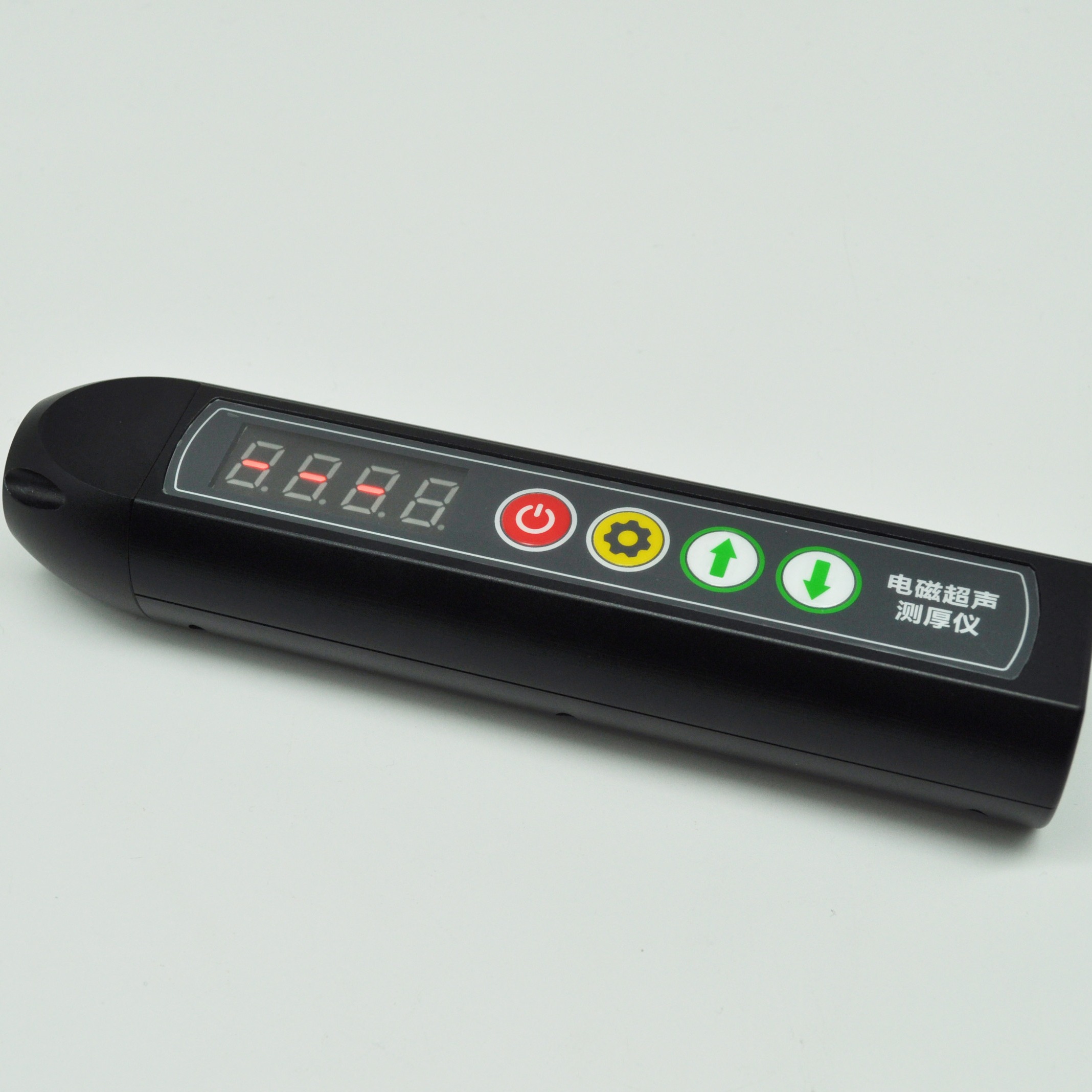

Pocket pen type, no coupling agent, and non-contact thickness gauge
Human body engineering design, compact structure, super small volume, easy to carry, hand-held operation, strong magnetic absorption, improve fatigue conditions
Accurate thickness measurement, can pass through the coating, professional algorithm program support, do not need to coupling agent, do not need to grind the workpiece surface, allow the detected surface paint and wrapping layer, allow the workpiece surface uneven
Multi-material sound velocity can be pre-stored in the instrument, and the material sound velocity can be dynamically added and deleted at the same time. The sound velocity calibration increases the temperature compensation function, and effectively improves the measurement accuracy
Corrosion layers are allowed and the measurement can be improved with a maximum increase distance of 3mm
Application
No coupling agent, and non-contact, with normal temperature and also high temperature, electromagnetic ultrasonic thickness gauge TG-14 can test thickness of all kinds of conductor material such as titanium, aluminum, copper, stainless steel, alloy steel, carbon steel and cast steel.
Technical parameter
Measuring range: 1.5~240mm
Lifting clearance: 0~3mm
Operating frequency: 4MHz
Ambient temperature: -20 ° C to +50
High temperature sound speed compensation: automatic compensation
Temperature range: -150~800℃(higher temperature can be customized)
Probe type: standard room temperature probe, optional high temperature, high frequency probe, high temperature low frequency probe, B scanning probe
Resolution: 0.01mm
Adjustable range of sound speed: 1000~9999m/s
Continuous working time: 3h
Size: 151*76*35mm
Weight: 220g
Excitation mode: permanent magnet
Error range: ≤10mm, error ±0.05mm (> 10 mm + / - 0.01 + H / 200) mm (H is the thickness of the workpiece)
Power supply: lithium rechargeable battery
Standard delivery
TG-14 electromagnetic ultrasonic thickness gauge
Normal temperature probe
Instruction manual
Calibration certificate
Carrying case
Optional accessories
High temperature
High frequency probe
High temperature low frequency probe
B scanning probe
