Floor Thickness Detection Rebound Concrete Test Hammer Hmt-800a

1pcs
MOQ
Floor Thickness Detection Rebound Concrete Test Hammer Hmt-800a
Features Gallery Product Description Request A Quote
Features
Specifications
Long Test Distance: 40mm~800mm
Fast And Efficient: Test 3~5 Point Thickness Within 3 Minutes
Test Accuracy: 40~600 Mm:±1 Mm,601~800 Mm:±2 Mm
Data Storage Capacity: 3.2 Group Data
Size: 220*145*60mm
Battery: 6 Dry Cells, Work More Than 30 Hours
Product Name: Schmidt Rebound Hammer Test
High Light:

floor thickness detection concrete test hammer

,

hmt-800a concrete test hammer

,

floor thickness detection concrete rebound hammer

Basic Infomation
Place of Origin: Beijing
Brand Name: HUATEC
Certification: ISO, CE, GOST
Model Number: HMT-800A
Payment & Shipping Terms
Packaging Details: Standard export package
Delivery Time: 1-4days
Payment Terms: T/T, Paypal, Western Union
Supply Ability: 500pcs per month
Product Description

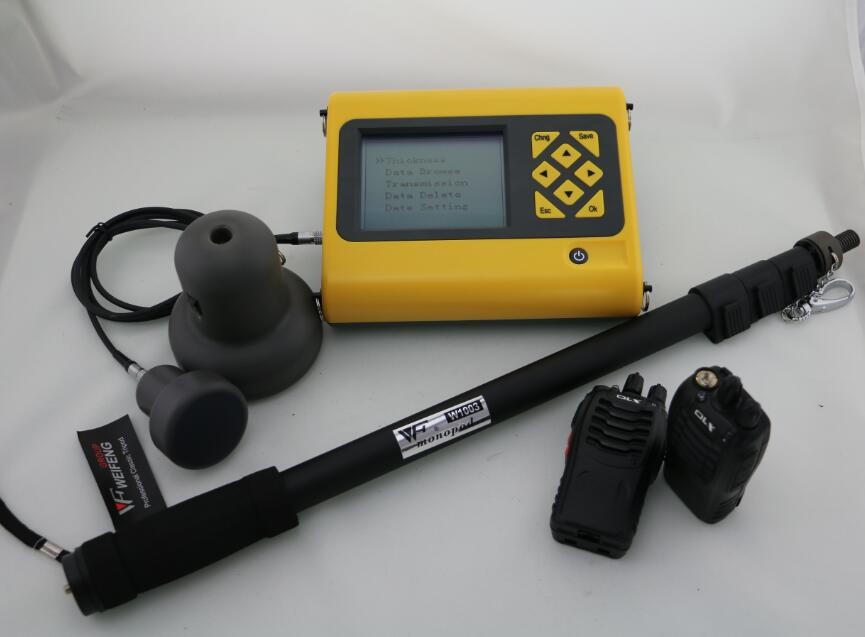

Concrete Floor Thickness Detection Test Hammer Rebound Hammer Test On Concrete HMT-800A



  • Purpose

The instrument is used for nonmetallic board thickness testing such as concrete,rock, glass etc, The functions include thickness testing, data analysis, saving and transmission.It is a potable, efficient, precise and intelligent instrument.

  • Specification

GB50204-2002

  • Performance/Features
  1. Long test distance. Test distance can up to 800mm.
  2. High precision and stability. Interpreting the board thickness Intelligently can avoid man-made errors and reduce labor intensity.
  3. Fast and efficient . Test 3~5 point thickness within 3 minutes.
  4. Long service life of sensor. Improve the service life by paste abrasion resistance allowance on the bottom of sensor.
  5. The special clasp between extend bar and transmitting sensor can prevent its falling.
  6. Can save test date. This function is convenient for laborer data management.

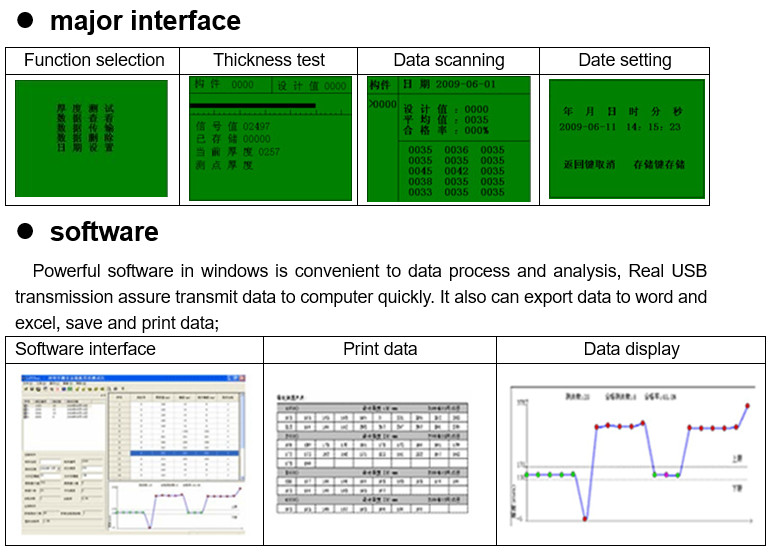

  7. Powerful data process and analysis software in Windows.
  • Technical Data/Measurement

Test scope : 40mm~800mm

Permissible error : 40 ~ 600 mm ±1 mm

601~ 800 mm ±2 mm

Data storage capacity : 3.2 group data

Operational environment:

Temperature:-10℃~+40℃

Dampness: <90%RH

       EMI: no strong electromagnetic field

Batteries: 6 dry cells, work more than 30 hours

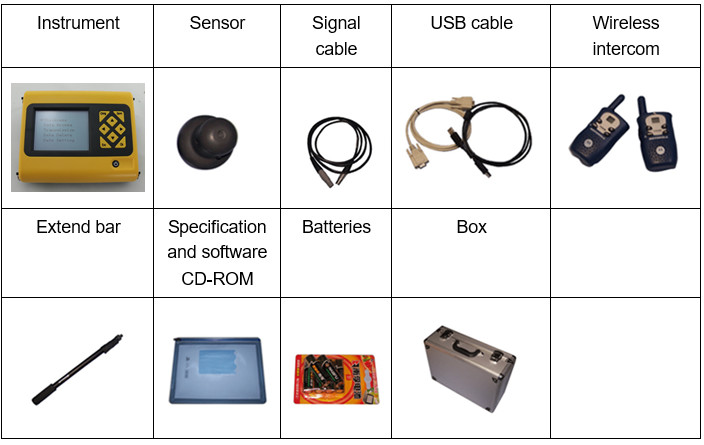

Standard configuration

Floor Thickness Detection Rebound Concrete Test Hammer Hmt-800a 0
