Bluetooth Ultrasonic Thickness Gauge Measuring Wall Thickness Ultrasonic Thickness Probe
1pcs
MOQ
Bluetooth Ultrasonic Thickness Gauge Measuring Wall Thickness Ultrasonic Thickness Probe
Features Gallery Product Description Request A Quote
Features
Basic Infomation
Place of Origin: Beijing
Brand Name: HUATEC
Certification: ISO, CE, GOST
Model Number: TG-2930
High Light:

bluetooth ut thickness gauge

,

ultrasonic thickness gauge bluetooth

,

lcd ultrasonic thickness gauge

Payment & Shipping Terms
Packaging Details: Standard export package
Delivery Time: 1-4days
Payment Terms: T/T, Paypal, Western Union
Supply Ability: 500pcs per month
Specifications
Operating Principle: ULTROSONIC
Measuring Range: 1.0-200mm, 0.05-8inch
Sound Velocity: 500-9000m/s
Display: 5 Digits LCD With EL Backlight
Resolution: 0.1mm Or 0.01mm
Interface: RS232C
Power Supply: 4x1.5V AAA Battery
Dimensions: 126x65x27mm
Weight: 81g
Probe: In Built, No Cable
Product Description

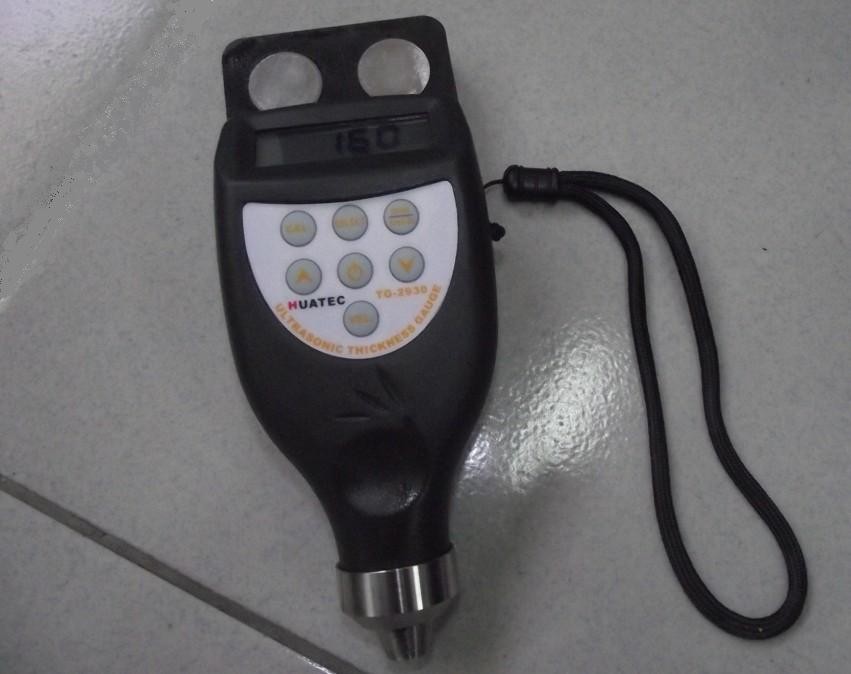

Bluetooth Ultrasonic Thickness Gauge measuring pipe wall thickness



Bluetooth Ultrasonic Thickness Gauge Measuring Wall Thickness Ultrasonic Thickness Probe 0

Application:

Ultrasonic thickness gauge TG-2930 is used for measuring thickness and corrosion of pressure vessels, chemical equipment, boilers, oil storage tanks, etc.in industries of petroleum, shipbuilding, power station, and machine manufacturing.



Measuring range (metric/imperial): 1.0-200mm, 0.05-8inch

Operating principle: ULTROSONIC

Materials measured: any hard materials, including steel, cast iron, aluminum, red copper, brass, zinc, quartz glass, polyethylene, PVC, gray cast iron, nodular cast iron and other materials

Sound velocity: 500-9000m/s

Lower limit steel pipes: ф15x2.0mm, ф20x3.0mm determined by the transducer

Calibration block: included

Display: 5 digits LCD with EL backlight

Resolution: 0.1mm or 0.01mm

Accuracy: ±(0.5%H+0.1)

Interface: with RS232C

Power supply: 4x1.5V AAA (UM-4)battery

Battery indicator: low battery indicator

Operating conditions:0-+45℃(32℉-104℉), ≤90%RH

Dimensions: 126x65x27mm

Weight: 81g(not including battery)


Standard Delivery

Main unit                                                1
5M Φ8 Transducer  inbuilt                     1
Couplant  bottle                                     1
Carrying case                                        1
Instruction manual                                 1



Optional Accessories

Cable and Software for RS232C interface

Bluetooth



Packaging and Shipping

Packaging: Standard export package, canton

Delivery: 3-7 days upon receipt of payment,depending on order quantity

Shipping: Can be shipped by sea, air or other means per request.



Our Services:

Warranty: One year

After sales service and maintenance: Lifelong



Sound velocity

Platinum 0.130 3300
Plexiglass 0.110 1700
Polyethylene 0.070 1900
Polystyrene 0.0930 2400
Polyurethane 0.0700 1900
Quartz 0.230 5800
Rubber, Butyl 0.070 1800
Silver 0.140 3600
Steel, Mild 0.232 5900
Steel, Stainless 0.230 5800
Teflon 0.060 1400
Tin 0.130 3300
Titanium 0.240 6100
Tungsten 0.200 5200
Uranium 0.130 3400
Water 0.584 1480
Zinc 0.170 4200





Bluetooth Ultrasonic Thickness Gauge Measuring Wall Thickness Ultrasonic Thickness Probe 1
