300 Degree Celsius Paint Coating Thickness Gauge High Temperature Spray Layer Paint Layer
1
MOQ
300 Degree Celsius Paint Coating Thickness Gauge High Temperature Spray Layer Paint Layer
Features Gallery Product Description Request A Quote
Features
Basic Infomation
Place of Origin: Beijing
Brand Name: HUATEC
Certification: ISO CE
Model Number: TG-6100
High Light:

spray layer paint coating thickness gauge

,

high temperature paint coating thickness gauge

,

300 degree celsius paint thickness gauge

Payment & Shipping Terms
Packaging Details: Standard export package
Delivery Time: 1-4days
Supply Ability: 500 per months
Specifications
Material: ABS
Accuracy: ±(1+2% H) Um
Display Value: Display Both Thickness And Weight Measurements Directly
Interface: Mini-USB Interface For Communication
Online Testing: Support Online Measurement
Testing Range: 0 ~ 3000 Um
Magnetic Induction Principle: Non-magnetic Coating On Magnetic Metal Substrate
Density Range: 0.01 ~ 99.99 G/cm3
Testing Times: 3 Times Per Second
Display: FSTN LCD Display With Backlight
Display Content: Coating Thickness Value, Coating Weight Value, Density Value, Time, Stability, Battery, Measuring Mode, Etc
Min. Radius Of Curvature: Convex 1.5mm
Min. Radius Of Area: Φ7mm
Contact Surface Temp.(°C): 0-300°C
Product Description

300 Degree Celsius HIgh Temperature Spray Layer Paint Layer Paint Coating Thickness Gauge

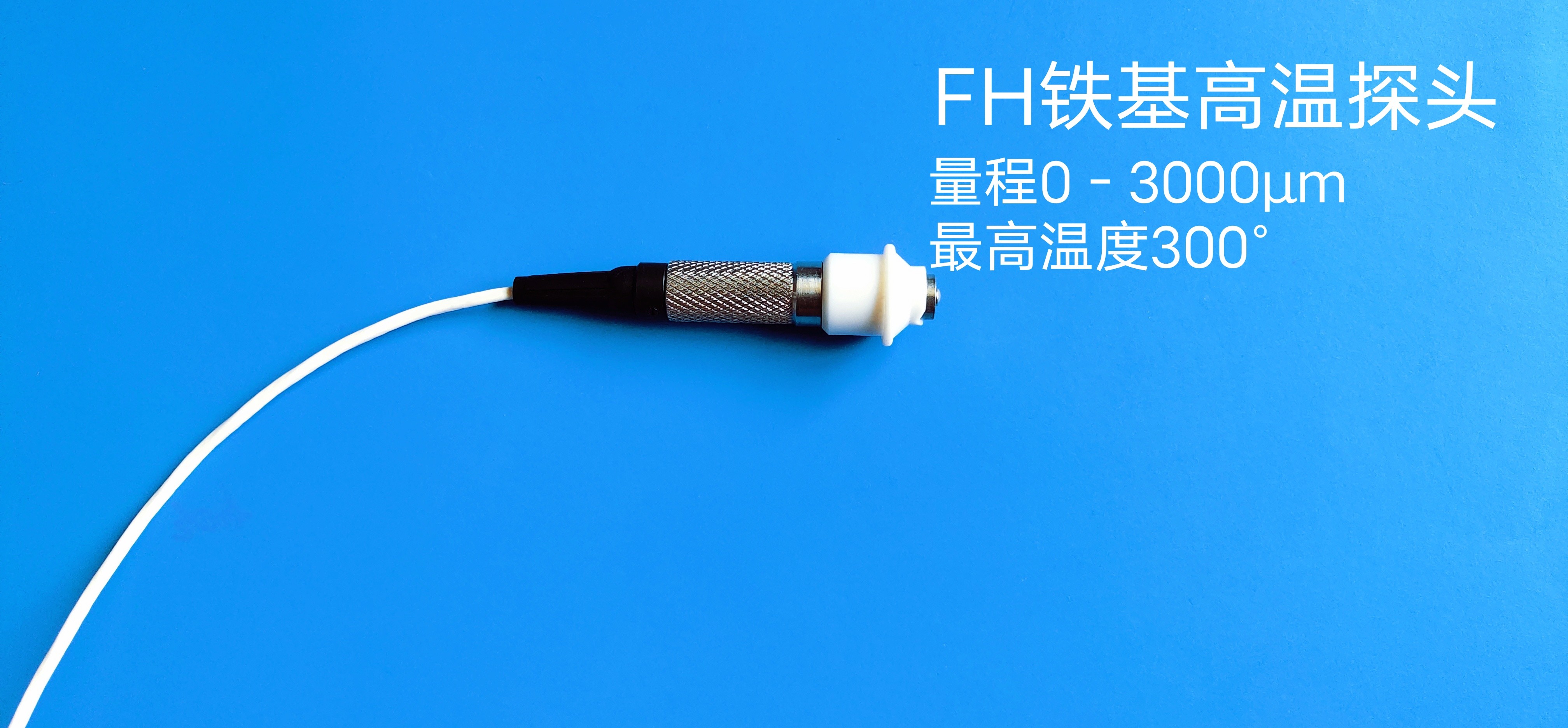

TG-6100 with high temperature probe FH is a portable coating thickness gauge, which is designed for non-destructive, fast and precise coating thickness measurement for any surface with high temperature upto 300 degree celsius. The principal applications lie in the field of corrosion protection. It is ideal for manufactures and their customers, for offices and specialist advisers, for paint shops and electroplaters, for the chemical, automobile, shipbuilding and aircraft industries and for light and heavy engineering.





300 Degree Celsius Paint Coating Thickness Gauge High Temperature Spray Layer Paint Layer 0



Features:

  • High precision sample chip and dedicated temperature compensation model used for precision measurement
  • Efficient filtering algorithm used for Anti-electromagnetic interference
  • Precise coating thickness measurement for any surface with high temperature upto 300 degree celsius
  • Probe can be re-matched with the machine after wear
  • Magnetic induction principle for Non-magnetic coating on magnetic metal substrate
  • Mini-USB interface for communication
  • Support Online measurement
  • Host Software upgradable

Main Functions:

  • Single Point Measurement, Scan, Differential and Alarm Mode support
  • Three calibration mode used for system error auto correction
  • Thickness and time information can be stored completely
  • Stability indicator for measuring status monitoring
  • Battery indicator for battery quantity monitoring
  • Can test on high temperature spray layer, paint layer

                 Technical Parameters



Probe Type F (Magnetic induction)
Usage Non-magnetic coating on magnetic metal substrate
Measure Range 0 ~ 3000 um
Min. Radius of Curvature Bulge 1.5 mm
Min. Radius of Area Φ7 mm
Critical Thickness of Plate 0.5 mm
Contact surface temp.(°C) 300°C with probe model FH
Accuracy Zero / One-Point Calibration
Two-Point Calibration
Basic Calibration
Resolution 0.1 um(0 ~ 99.9 um),1um(100 ~ 1500 um)
Measuring Period 3 times per second
Calibration Mode Zero, One-Point, Two-Point and Basic Calibration
Measuring Mode Single point, scan mode, differential mode, alarm mode
Display English / Chinese selectable, FSTN LCD Display with backlight
Display Content Coating Thickness Value, Time, Stability, Battery, Measuring Mode, etc.
Storage 500 measurements, including time, probe type, etc.
Communication Mini-USB interface, virtual serial port protocol, support online measurement
Print Optional portable thermal printers
Power Supply 3 * AAA alkaline batteries for 100 hours usage (close backlight)
Power off Timeout power off, and low battery power off
Temperature Usage: -10 ~ 50 °C, Store: -30 ~ 60 °C
Size 150mm * 70mm * 30mm
Material ABS and PC alloy
Weight 180g






Probes model guide

Probe type F (Magnetic) N (Non-magnetic)
Usage Non-magnetic coating on magnetic metal substrate Non-conductive coating on non-magnetic metal substrate
Probe model FM FL FX FT-500 FS FH NM NL
Measuring range(μm) 0 ~ 1500 0 ~ 3000 0~10000 0 ~ 500 0 ~ 500 0 ~ 3000 0 ~ 1500 0 ~ 3000
Measuring accuracy(μm) Basic calibration ±(0.5+1% H) ±(1+2% H) ±(1+3% H) ±(0.5+1% H) ±(0.5+1% H) ±(1+2% H) ±(0.5+1% H) ±(1+2% H)
Zero calibration ±(1+2% H) ±(1+3% H) ±(2+5% H) ±(1+2% H) ±(1+2% H) ±(1+3% H) ±(1+2% H) ±(1+3% H)
Min. Radius of Curvature Convex 1.5mm Convex 1.5mm Convex 10mm Convex 1.5mm Convex 1mm Convex 1.5mm Convex 3mm Convex 6mm
Min. Radius of Area Φ7mm Φ7mm Φ40mm Φ3mm Φ3mm Φ7mm Φ5mm Φ7mm
Critical Thickness of Plate 0.5mm 0.5mm 2mm 0.3 mm 0.2 mm 0.5 mm 0.3 mm 1 mm
Contact surface temp.(°C) 0 ~ 50 0 ~ 50 0 ~ 50 0 ~ 50 0 ~ 50 0 ~ 300 0 ~ 50 0 ~ 50
Measuring direction down down down right angle down down down down
Main testing material Paint layer, spray layer Paint layer, spray layer

Anti-corrosion layer,

Fire protection layer

A narrow area inside the pipe Small parts, fasteners,Spray layer, paint layer 300℃Spray layer, paint layer Oxide layer, spray layer,Copper tin plating, chrome plating Spray layer, paint layer
Probe description Standard probe Thicker probe Thicker probe Right angle probe Mini probe High temp. probe Normal probe Thicker probe

300 Degree Celsius Paint Coating Thickness Gauge High Temperature Spray Layer Paint Layer 1300 Degree Celsius Paint Coating Thickness Gauge High Temperature Spray Layer Paint Layer 2300 Degree Celsius Paint Coating Thickness Gauge High Temperature Spray Layer Paint Layer 3300 Degree Celsius Paint Coating Thickness Gauge High Temperature Spray Layer Paint Layer 4300 Degree Celsius Paint Coating Thickness Gauge High Temperature Spray Layer Paint Layer 5300 Degree Celsius Paint Coating Thickness Gauge High Temperature Spray Layer Paint Layer 6300 Degree Celsius Paint Coating Thickness Gauge High Temperature Spray Layer Paint Layer 7300 Degree Celsius Paint Coating Thickness Gauge High Temperature Spray Layer Paint Layer 8300 Degree Celsius Paint Coating Thickness Gauge High Temperature Spray Layer Paint Layer 9
