ISO Huatec Brinell Hardness Machine Automatic Closed Loop Pressure Control
1pcs
MOQ
ISO Huatec Brinell Hardness Machine Automatic Closed Loop Pressure Control
Features Gallery Product Description Request A Quote
Features
Basic Infomation
Place of Origin: Beijing
Brand Name: HUATEC
Certification: ISO, CE, GOST
Model Number: HB-3000XPZ
High Light:

automatic tower brinell hardness machine

,

huatec brinell hardness machine

,

automatic loading brinell hardness machine

Payment & Shipping Terms
Packaging Details: Standard export package
Delivery Time: 1-4days
Payment Terms: T/T, Paypal, Western Union
Supply Ability: 500pcs per month
Specifications
Brinell Scales: HBW2.5/62.5 HBW2.5/187.5 HBW5/62.5 HBW5/125 HBW5/250 HBW5/750 HBW10/100 HBW10/250 HBW10/500 HBW10/1000 HBW10/1500 HBW10/3000
Test Force: 62.5Kgf(612.9N) 100Kgf(980.7N) 125Kgf(1226N) 187.5Kgf(1839N) 250Kgf(2452N) 500Kgf(4903N) 750Kgf(7355N) 1000Kgf(9807N) 1500Kgf(14710N) 3000Kgf(29420N)
Standards: BSEN 6506, ISO 6506, ASTM E10, GB/T231
Hardness Resolution: 0.1HBW
Testing Range: 3.18-653HBW
Max. Height Allowed For Sample: 320mm
Distance Of Indenter To Outer Wall: 250mm
Size: 700×340×970mm
Weight: About 160kg
Power: AC220+5%,50~60Hz
Product Description

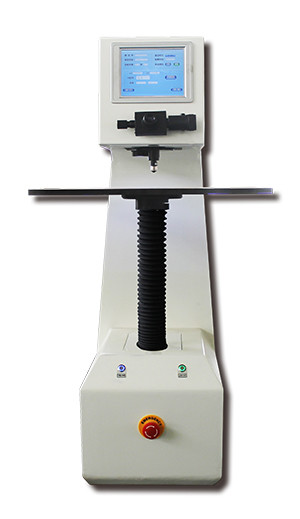

Automatic Closed-Loop Pressure Control Automatic Loading Brinell Hardness Machine HB-3000XPZ



Usage Range
The Brinell hardness tester that shows the largest indentation among all the hardness tests is able to reflect
the comprehensive features of the material , and the test is unaffected by the organization micro-dioptre
and the compositional unevenness of the speciment ;and hence it is a hardness testing with high precision.
The Brinell hardness test is widely used in such industrial fields as metallurgy , forging , casting , unhardened
steel and nonferrous metals industries, as well as in the laboratories, universities , colleges and s-cientific
research institutes.



Advantages:

1. Automatic closed-loop pressure control, automatic loading, automatic load;

2. Tester body designed in Italy, Ample sample space for large samples.

3. Wide force measurement range: from 62.5 to 3000 kgf, 10 brinell scales, machine can be customized;

4. Automatic turret, automatic loading and unloading, no need for auto focus after loading;

5. Z-axis automatic ascending and descending. After placing sample, push test button and the sample automatically ascends, after touching indenter, loading automatically starts, after unloading, turret automatically turns to sample location, z axis automatically focus and proceed testing.

6. Objective structured with digital encoder, calculate D1, D2 value, LCD directly displays hardness value and D1, D2 value.

7. Can calibrate according to standard block or length scale.

8. Test force can auto-correct using standard force meter.

9. Can convert to rockwell and vickers hardness value.

10. Touchscreen, easy operation, can input sample, name of testing personnel and other info.

11. Data can saved as excel format in u disc for easy editing and processing.

12. Main application: railway, energy, steel, aviation , roller plants, tube rolling mills, foundries,




Technical Specifications:

Model HUATEC HB-3000XPZ
Brinell Scale HBW2.5/62.5 HBW2.5/187.5 HBW5/62.5 HBW5/125 HBW5/250 HBW5/750 HBW10/100 HBW10/250 HBW10/500 HBW10/1000 HBW10/1500 HBW10/3000
Testing Force

62.5Kgf(612.9N) 100Kgf(980.7N) 125Kgf(1226N)

187.5Kgf(1839N) 250Kgf(2452N) 500Kgf(4903N) 750Kgf(7355N) 1000Kgf(9807N) 1500Kgf(14710N) 3000Kgf(29420N)

Standards BSEN 6506, ISO 6506, ASTM E10, GB/T231
Force accuracy 62.5~250Kgf≤1% 500~3000Kgf≤0.5%
Measuring device resolution rate 0.1μm
Hardness resolution 0.1HBW
Hardness range 3.18-653HBW
Indenter and objective Automatic replacement
Loading time 1~99S
Data output LCD display
Data saving Value can be saved as excel format in u disc
Max. Height allowed for sample 320mm
Distance of indenter to outer wall 250mm
Dimension 700×340×970mm
Weight About 160kg
Power AC220+5%,50~60Hz

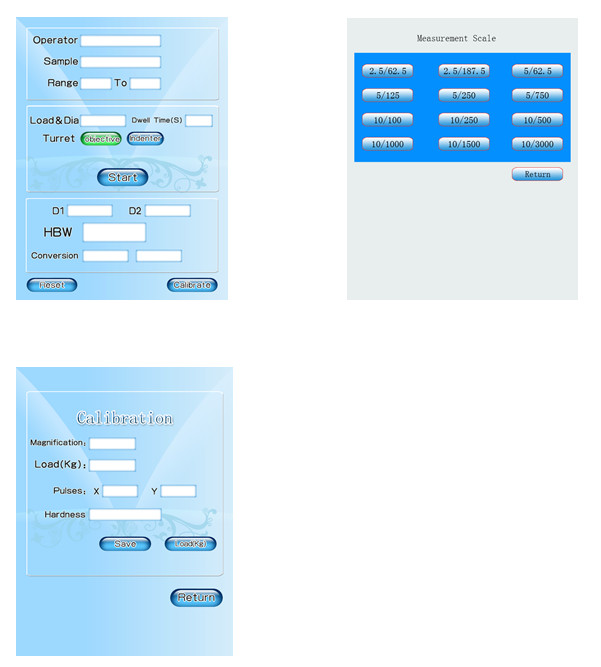

Operation Interface:



ISO Huatec Brinell Hardness Machine Automatic Closed Loop Pressure Control 0



Standard accessories



Name Quantity Name Quantity
Objectives 20x 1 Diameter 2.5,5,10mm Hard Alloy Steel Ball Indenter Each 1
Standard Blocks 3 Large, Medium, “V” shaped Testing Table 1 each
Power Cable 1 U disk 1
Operation Manual 1 Product certificate 1
Touch pen 1
