5 Steps Inch And Millimeter Step Wedge Reference Block For Ultrasonic Testing
1pcs
MOQ
5 Steps Inch And Millimeter Step Wedge Reference Block For Ultrasonic Testing
Features Gallery Product Description Request A Quote
Features
Basic Infomation
Place of Origin: Beijing
Brand Name: HUATEC
Certification: ISO, CE, GOST
Model Number: UT block
High Light:

wedge reference block for ultrasonic testing

,

duplex step calibration block

,

duplex reference block for ultrasonic testing

Payment & Shipping Terms
Packaging Details: Standard export package
Delivery Time: 1-4days
Payment Terms: T/T, Paypal, Western Union
Supply Ability: 5000pcs per month
Specifications
Material: Carbon Steel 1018 SS 304 Aluminum Duplex SS
Size: Any Size
Wedge Size: 20x20mm,30x30mm,50x50mm
Case: Included
Calibration Certificate: Included
Name: Reference Block For Ultrasonic Testing
Product Description

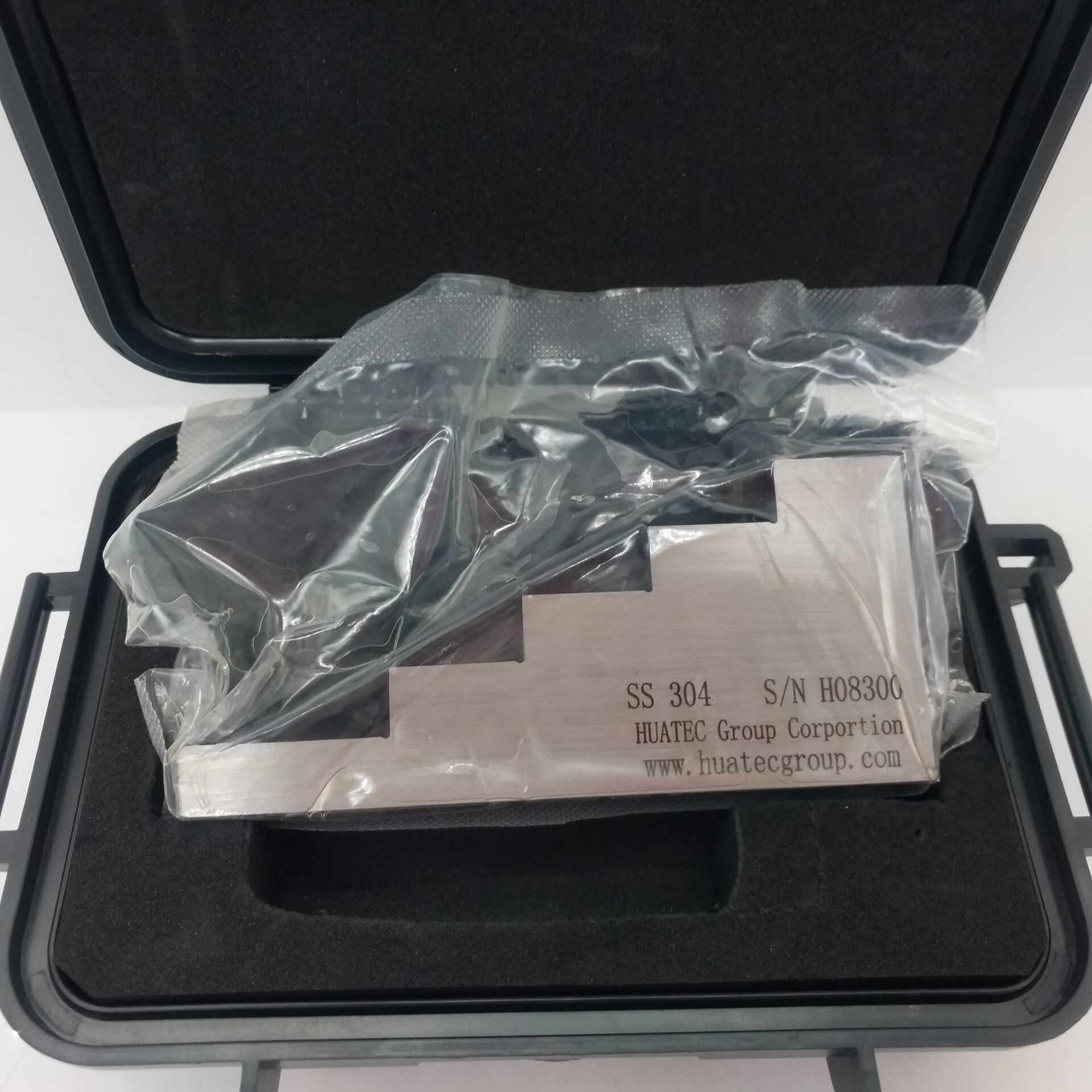

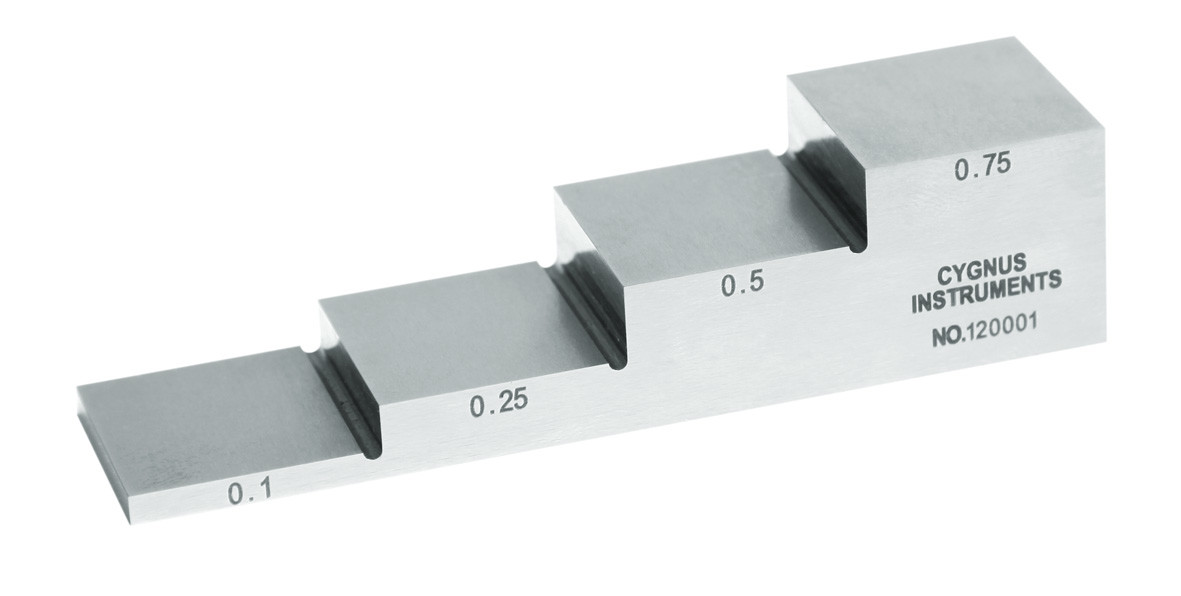

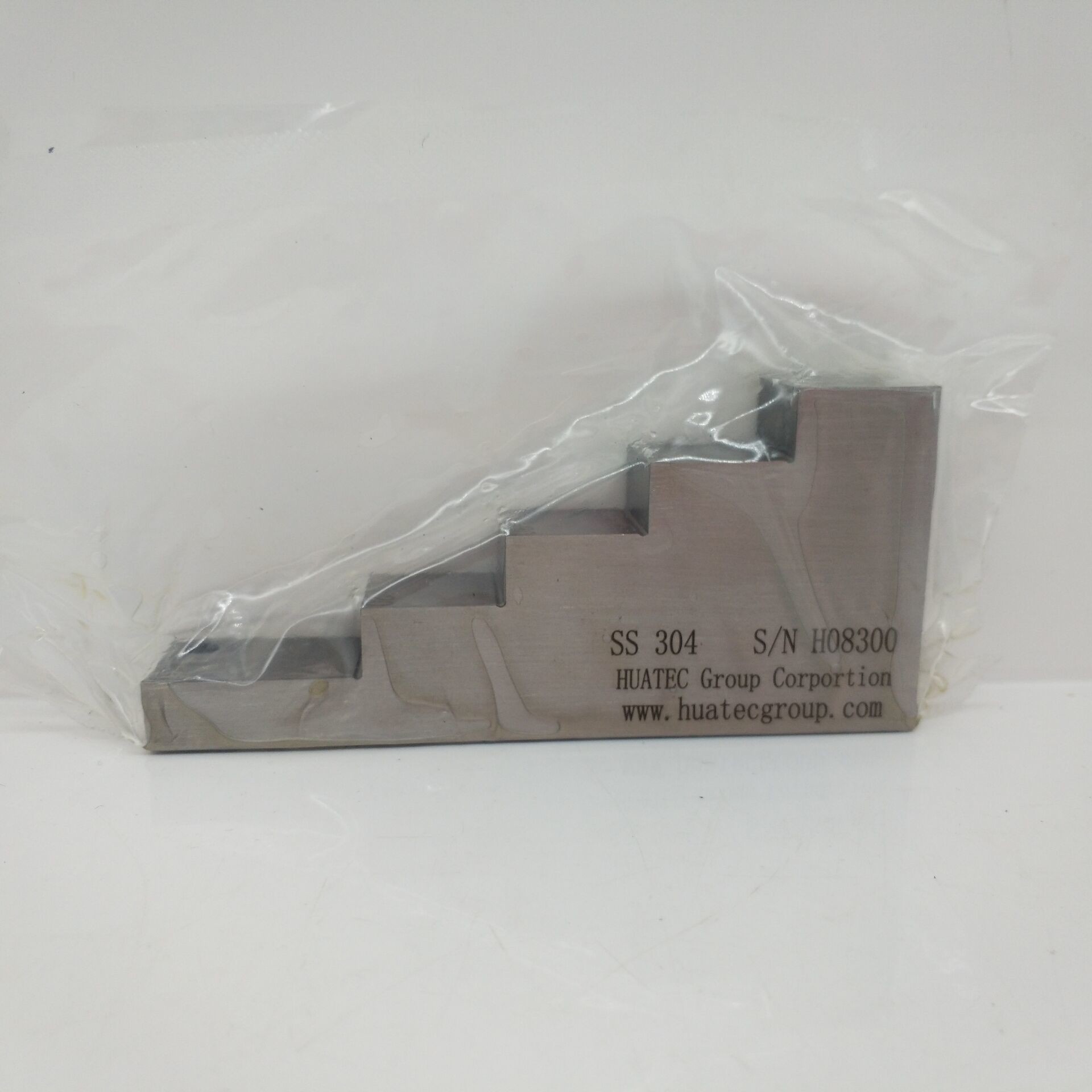

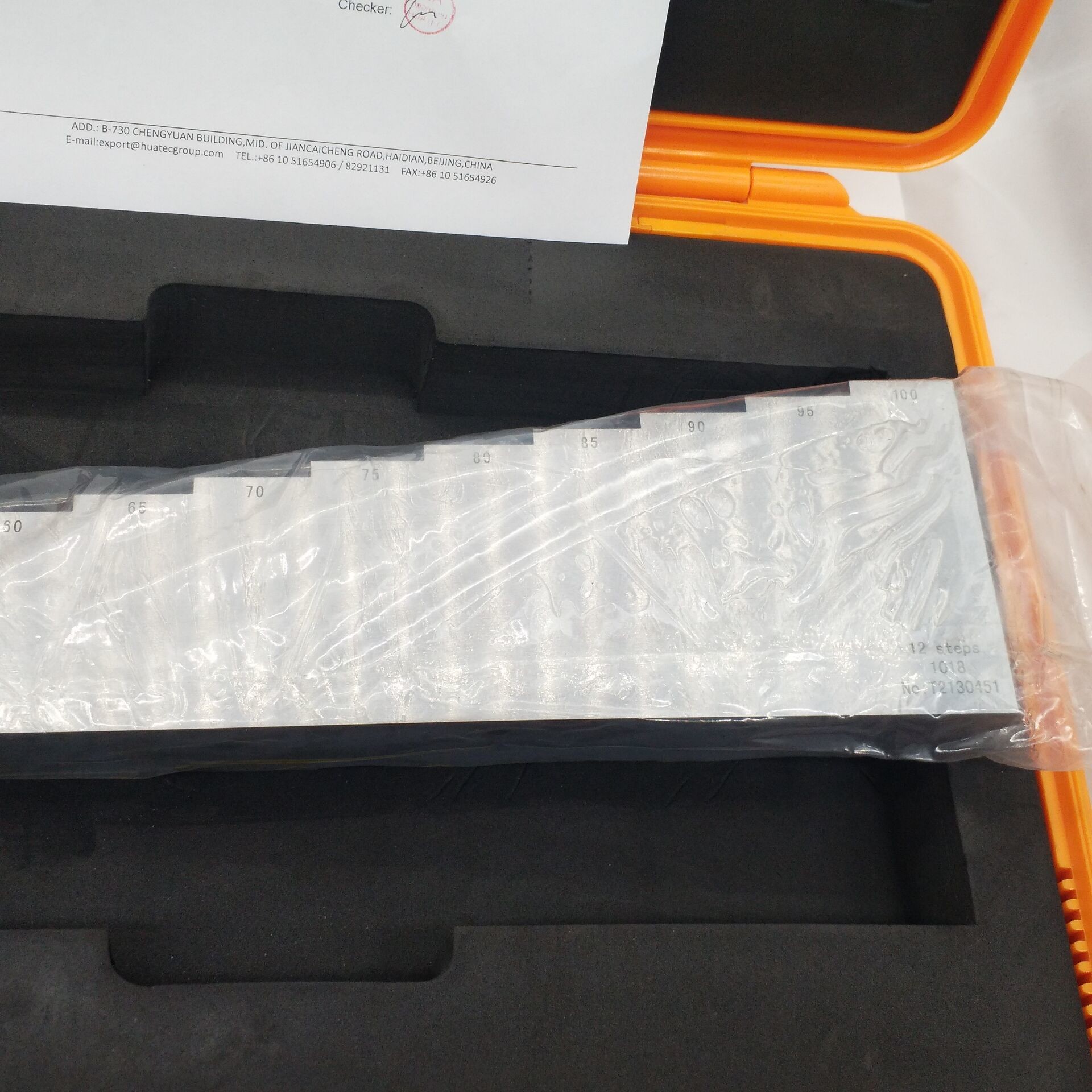

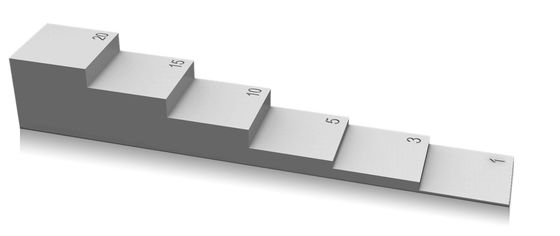

5 Steps Inch And Milimeter Stepwedge UT Ultrasonic Calibration Block Reference Block



The ultrasonic thickness calibration test block is a kind of comparison test block for calibrating the ultrasonic thickness tester, which can accurately identify the accuracy of the ultrasonic thickness tester. Material can be stainless steel, carbon steel, aluminum, duplex stainless steel etc, size has 4 steps, 5 steps, and other steps, the size of each disintegration can also be customized. HUATEC Group ultrasonic thickness calibration test block production process is exquisite, small tolerance, fast delivery, random packaging box, calibration certificate,block can be mm and inch unit, HUATEC is recognized as a good brand.

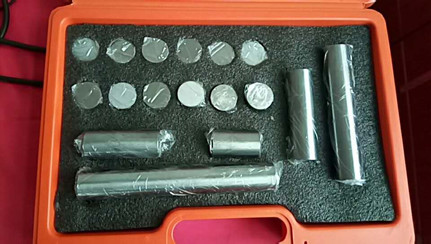

Thickness calibration block set

Standard value mm 0.5 1.0 1.2 1.5 2.0 3.3
Tolerance ±0.01
Standard value mm 5.5 7.7 10 15 20 25 50
Tolerance ±0.01 ±0.02
Standard value mm 75 100 150 200
Tolerance ±0.02 ±0.05


























Material: 1018 carbon steel



17 blocks in one set

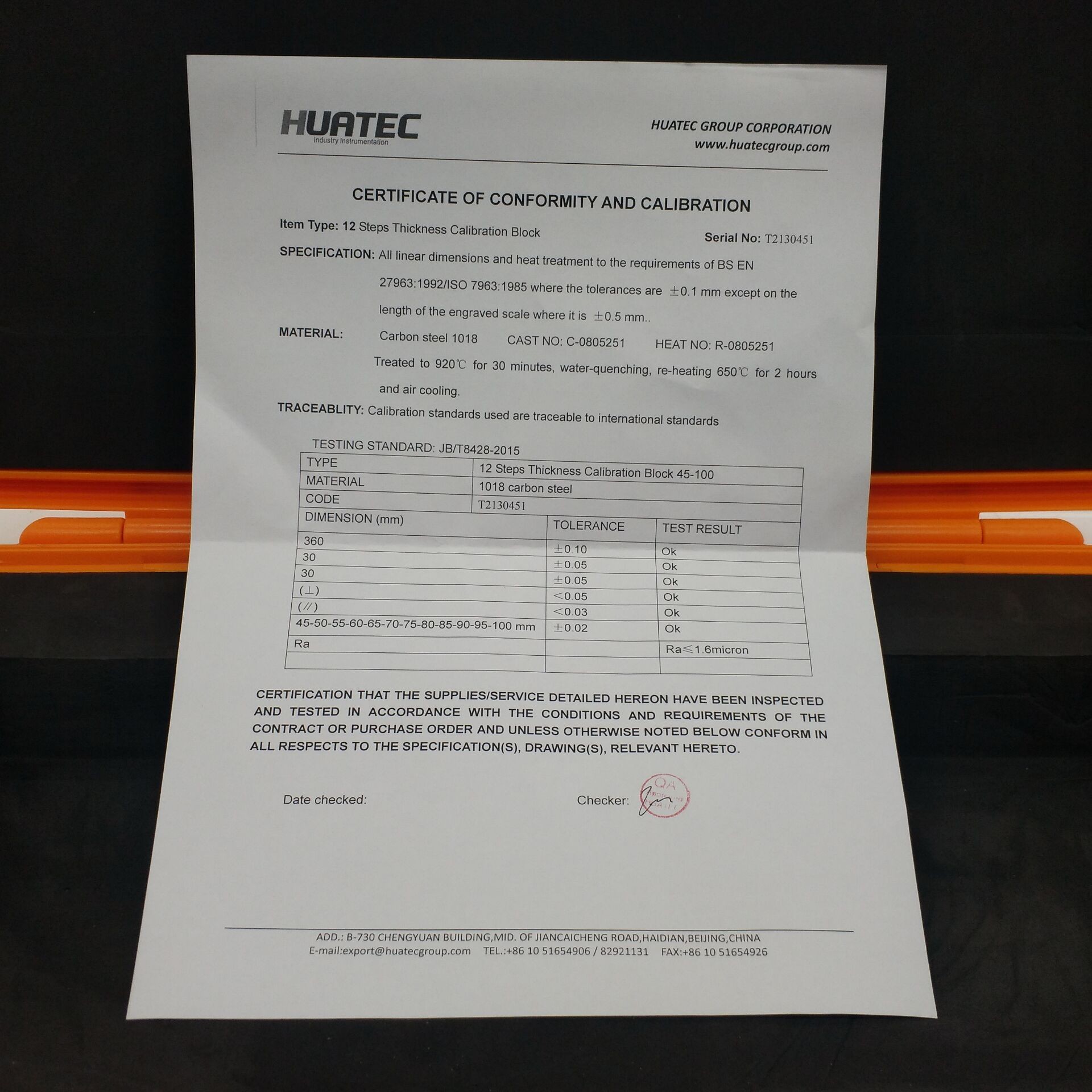

With calibration certificate



5 Steps Inch And Millimeter Step Wedge Reference Block For Ultrasonic Testing 0
