400mm Digital LCD Ultrasonic Wall Thickness Gauge

400mm Digital LCD Ultrasonic Wall Thickness Gauge
Features Gallery Product Description Request A Quote
Range: 0.75-400mm
Display: 4 Digit, 10 Mm LCD
Operating Principle: Ultrasonic
Battery Indication: Low Battery Indication
Sound Velocity: 1000~9999 M/s
Resolution: 0.1mm / 0.01mm / 0.001inch
Product Name: Ultrasonic Thickness Gauge
Battery: :4x1.5VAAA(UM-4)battery
Operation Condition: Temp. 0~40℃ Humidity <80%
Size: 140x72x34mm
Weight: 185g(notincludingbatteries)
High Light:

Digital ultrasonic wall thickness gauge


LCD ultrasonic wall thickness gauge


400mm ultrasonic wall thickness gauge

Basic Infomation
Place of Origin: Beijing
Brand Name: HUATEC
Certification: ISO, CE, GOST
Model Number: TG-3500
Payment & Shipping Terms
Packaging Details: Standard export package
Delivery Time: 1-4days
Payment Terms: T/T, Paypal, Western Union
Supply Ability: 500pcs per month
Product Description

TG3500 Ultrasonic Wall Thickness Gauge Ultrasonic Thickness Gauge Ultrasonic Digital Thickness Gauge



* Used the exclusive Micro-computer LSI circuit and crystal time base to offer high accuracy measurement .

* With high power of emission and broad band of receiving sensitivity, the gauge can match probes of different frequencies. That makes it easy to measure the rough surface, even cast iron. It is widely used in almost all kinds of industries.

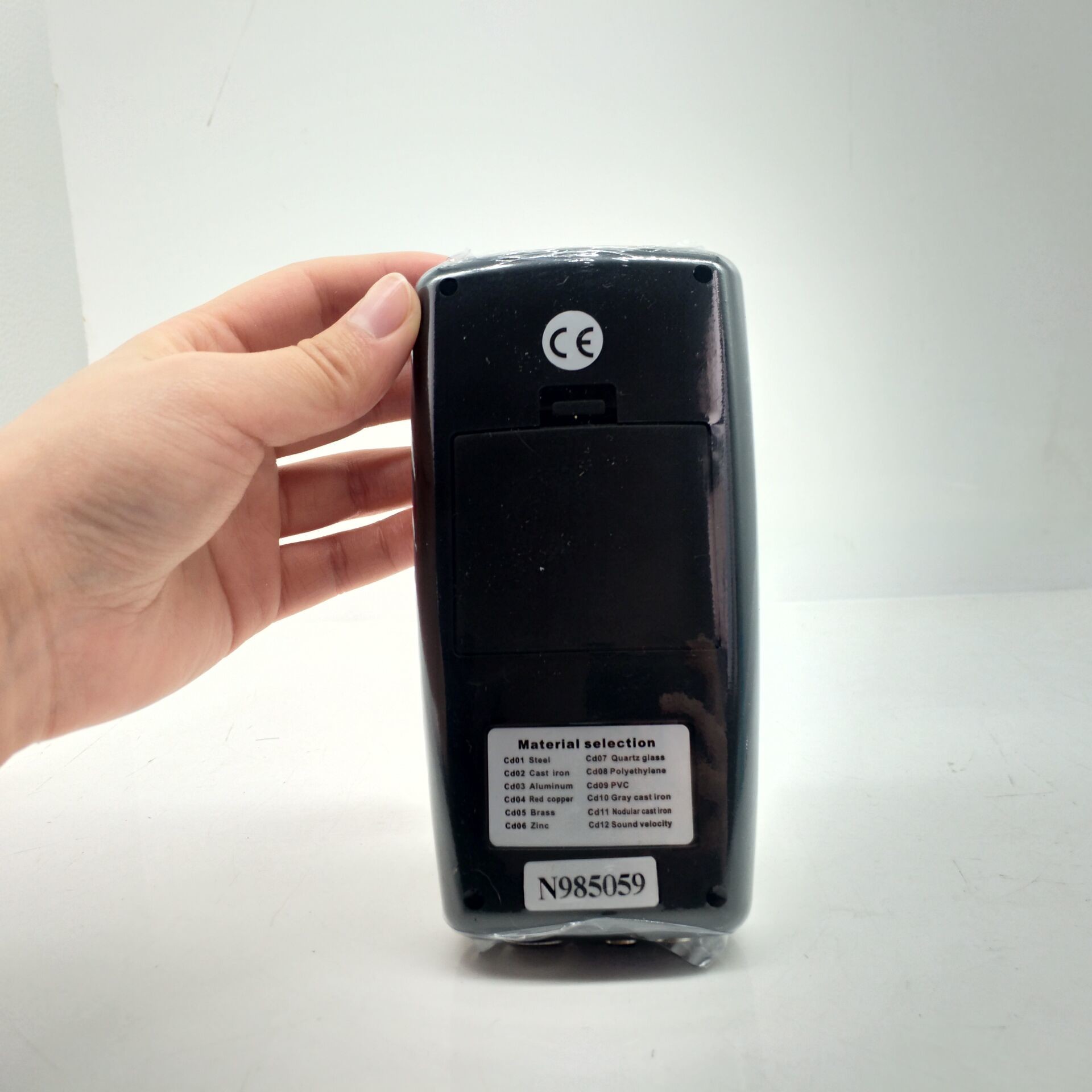

* Applicable to measure the thickness of many materials, e. g. Steel, Cast iron, Aluminum, Red copper, Brass, Zinc, Quartz glass, Polyethylene, PVC, Gray cast iron, Nodular cast iron.

* Bidirectional measurement, for materials within measurement range, thickness is measurable with know velocity, Conversely velocity is measurable with know thickness.

* Using the latest high performance and low power consumption microprocessor technology.

* Automatic memory material code and sound velocity value, convenient to use.

* Use “USB data output” and “RS-232 data output” to connect with PC.

* Provide “Bluetooth ™ data output”

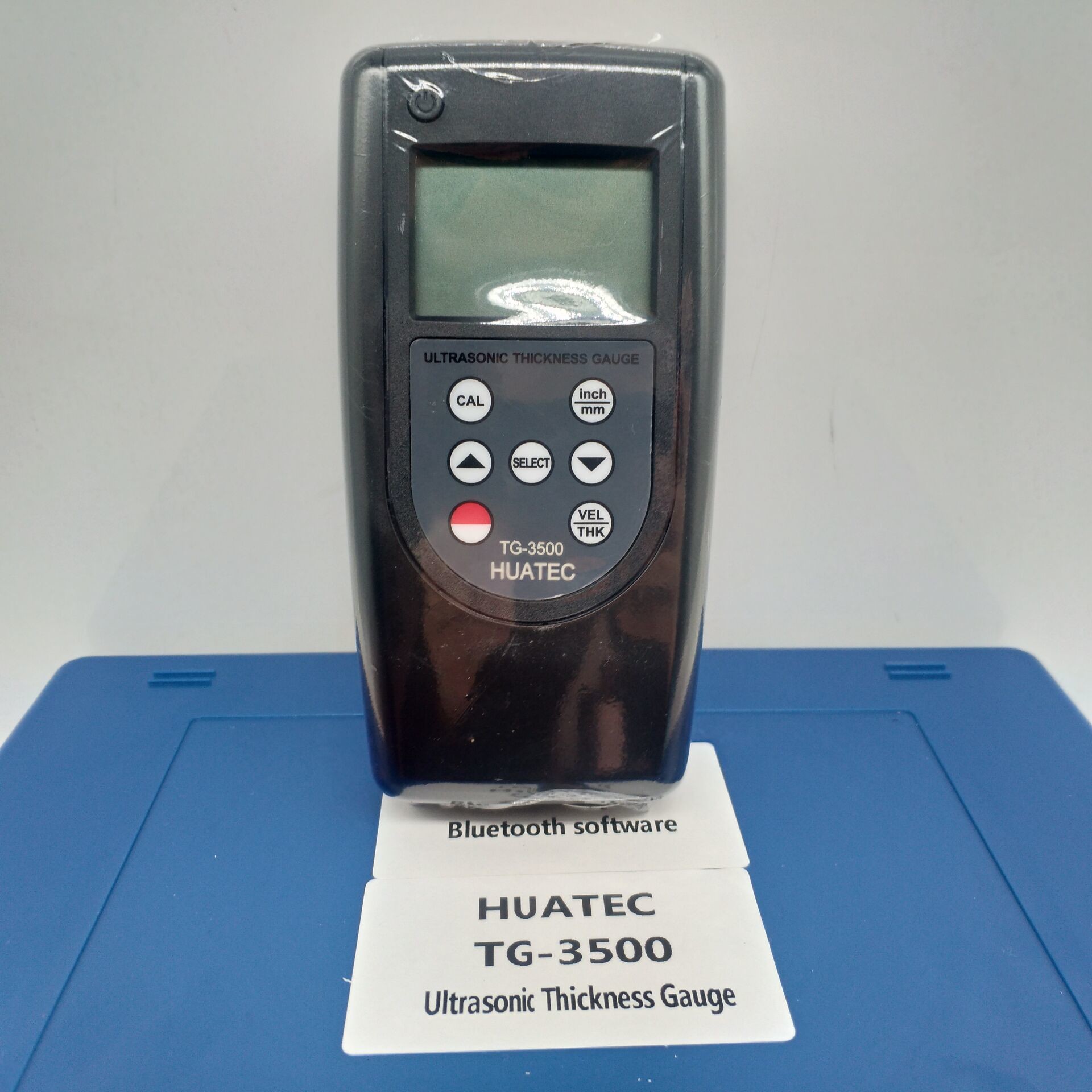

  Display screen

  4 Digit, 10 mm LCD with backlight

  Operating Principle


  Measuring Range (metric / Imperial)

  0.75~400mm (45# steel) (Depend on Probe)

  Battery Indication

  Low Battery Indication

  Sound Velocity

  1000~9999 m/s

  Lower Limit Steel Pipes

  Φ15 x 2.0 mm Φ20 x 3.0 mm determined by transducer

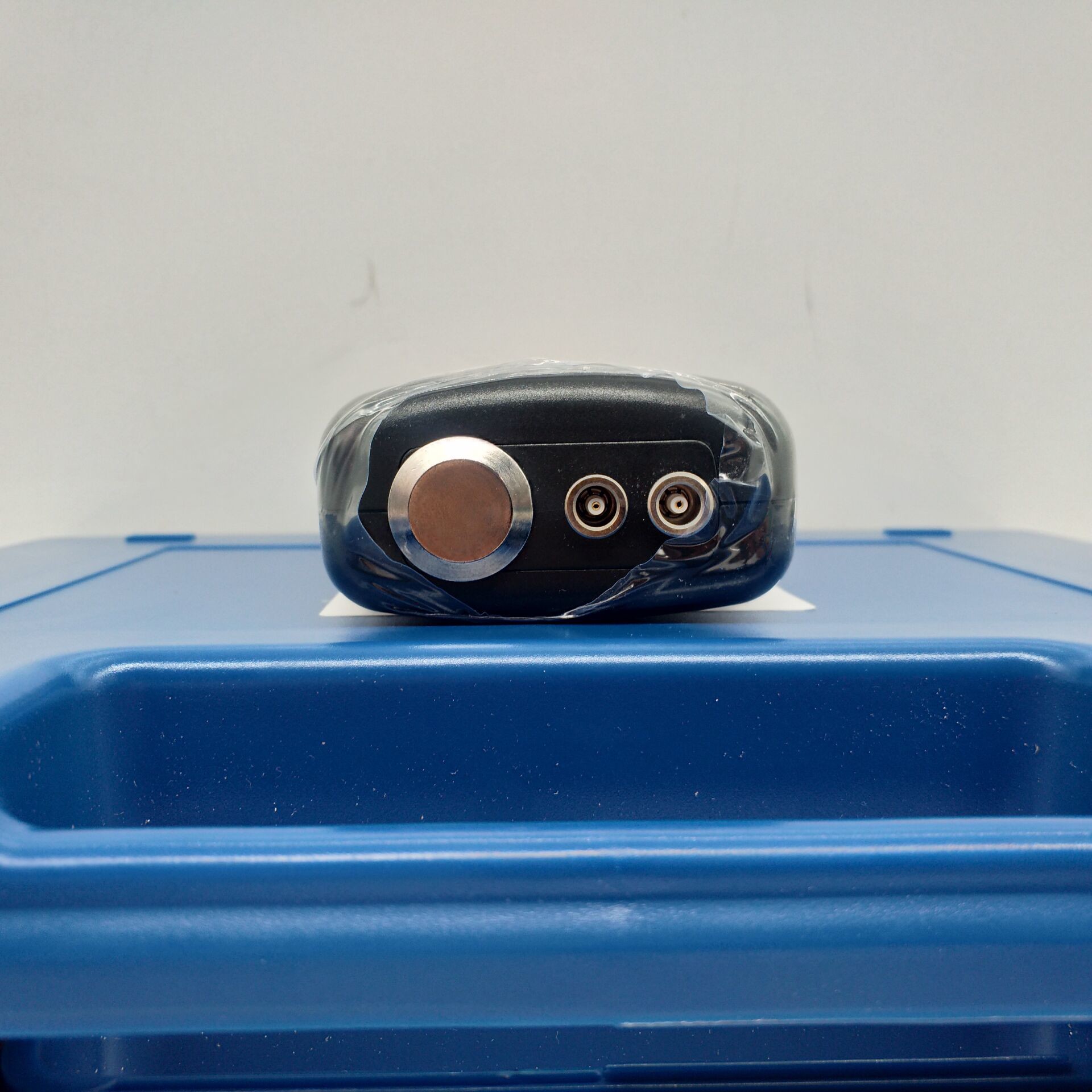

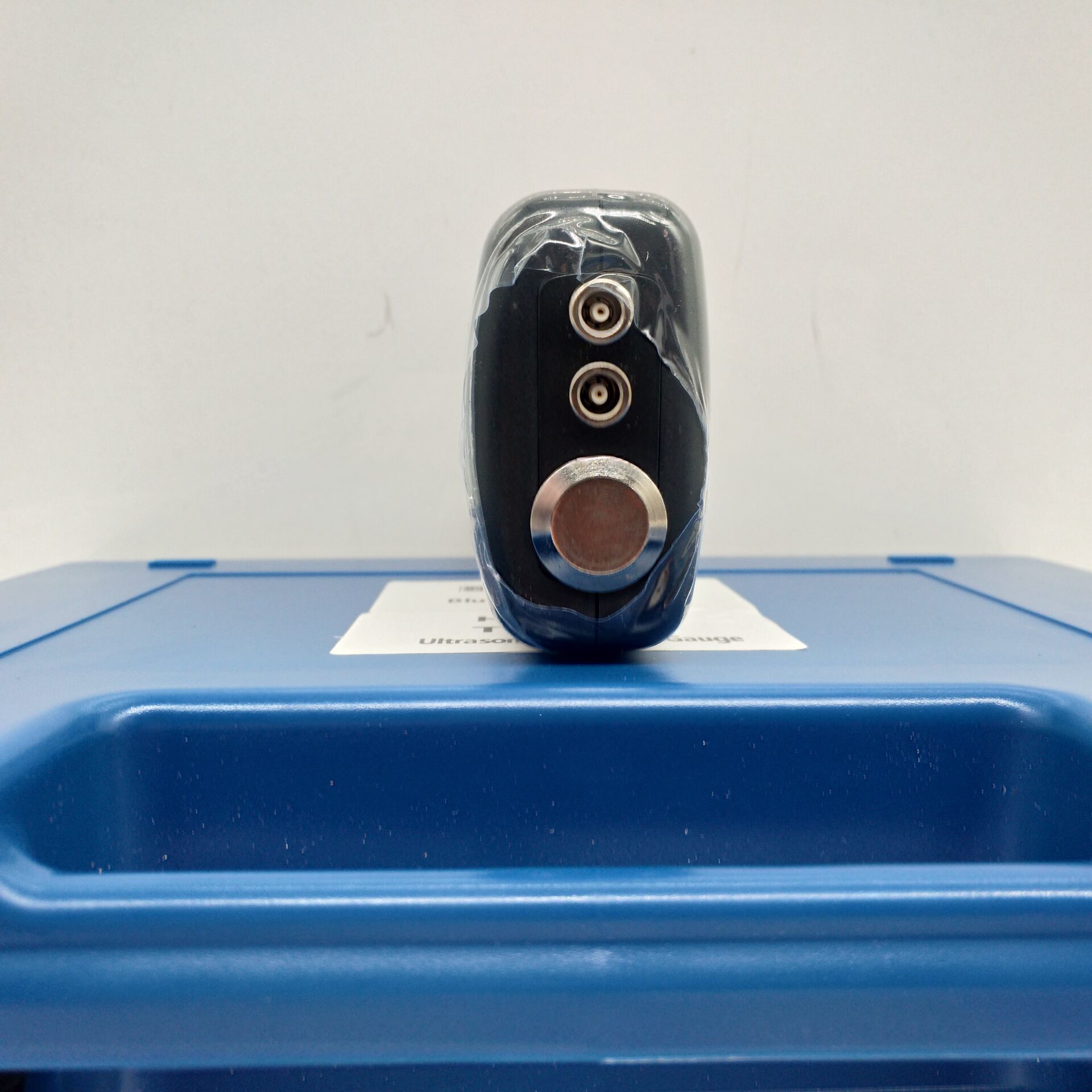

  Inbuilt Calibration Block

  Included 5mm thickness


  0.1mm / 0.01mm / 0.001inch


  ± (0.5%n + 0.1)

  Power off

  Auto Power off & Manual Power Off

  Operating  Conditions

  Temperature: 0~40 °C, Humidity: < 85 %RH

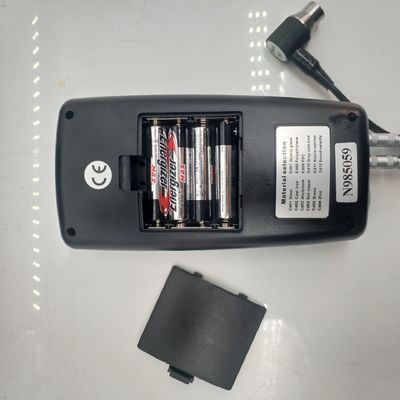

  Power Supply

  4 x 1.5 V AAA (UM-4) Battery


  140 x 72 x 34 mm

  Net Weight

  185 g (Not Including Batteries)

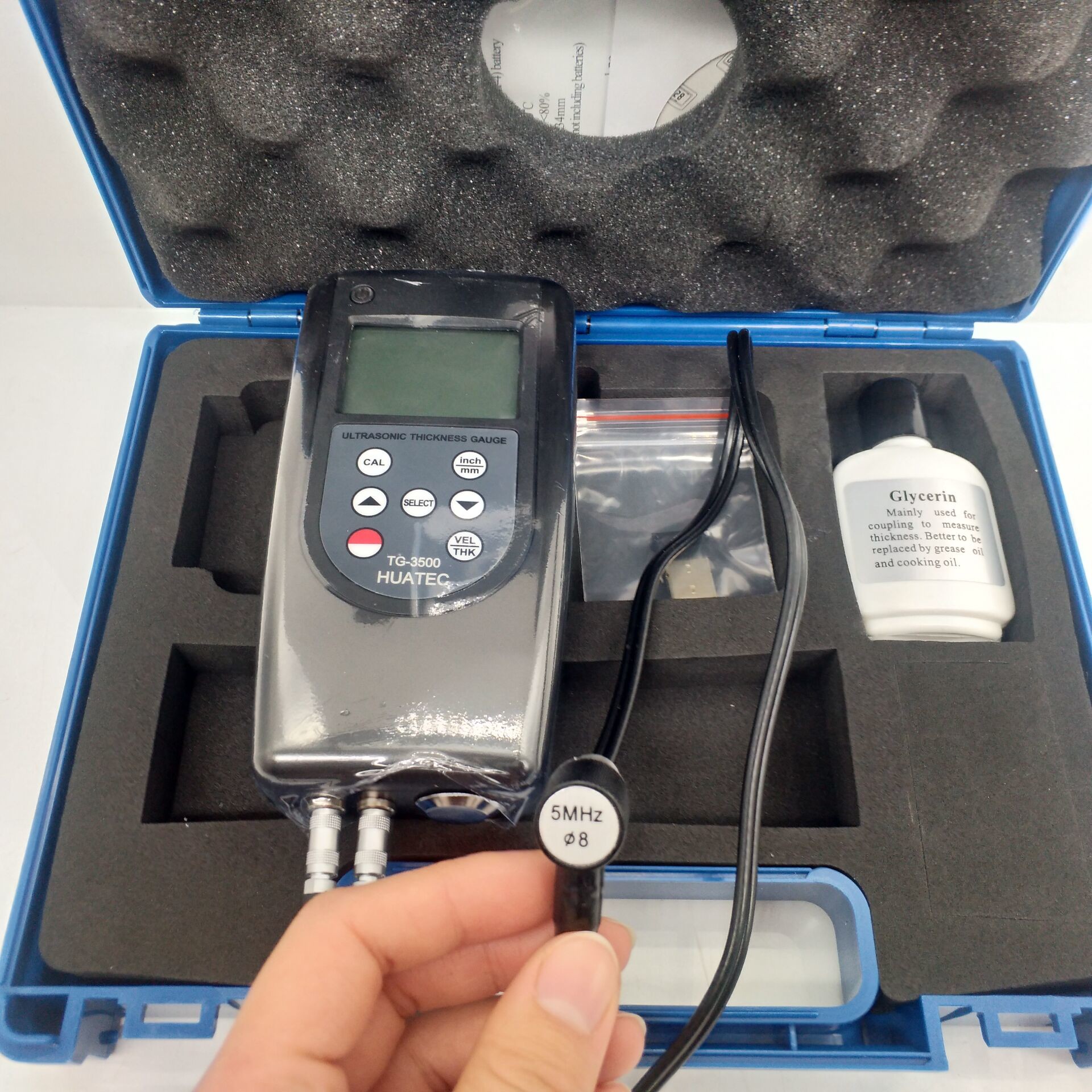

Standard Delivery:

 1. Main Unit

 2. 5MФ8 Standard Sensor

 3. Coupling Agent bottle

 4. Carrying Case

 5. Operating Manual

 6. Certificate


Optional Accessories:

 1. 6M Φ6 mm thin Material Probe : Measuring range (steel): 1.0~50.0 mm Operating temperature: -10~60°C

 2. 5M Φ12 mm High Temperature Probe: Measuring range (steel): 1.0~225.0 mm (normal temperature) Measuring range (steel) : 4.0~100.0 mm (high temperature) Operating temperature: -10~300°C

 3. Curved Surface Probe

 4. USB, RS-232C data cable with software

 5. Bluetooth data output with software

400mm Digital LCD Ultrasonic Wall Thickness Gauge 0

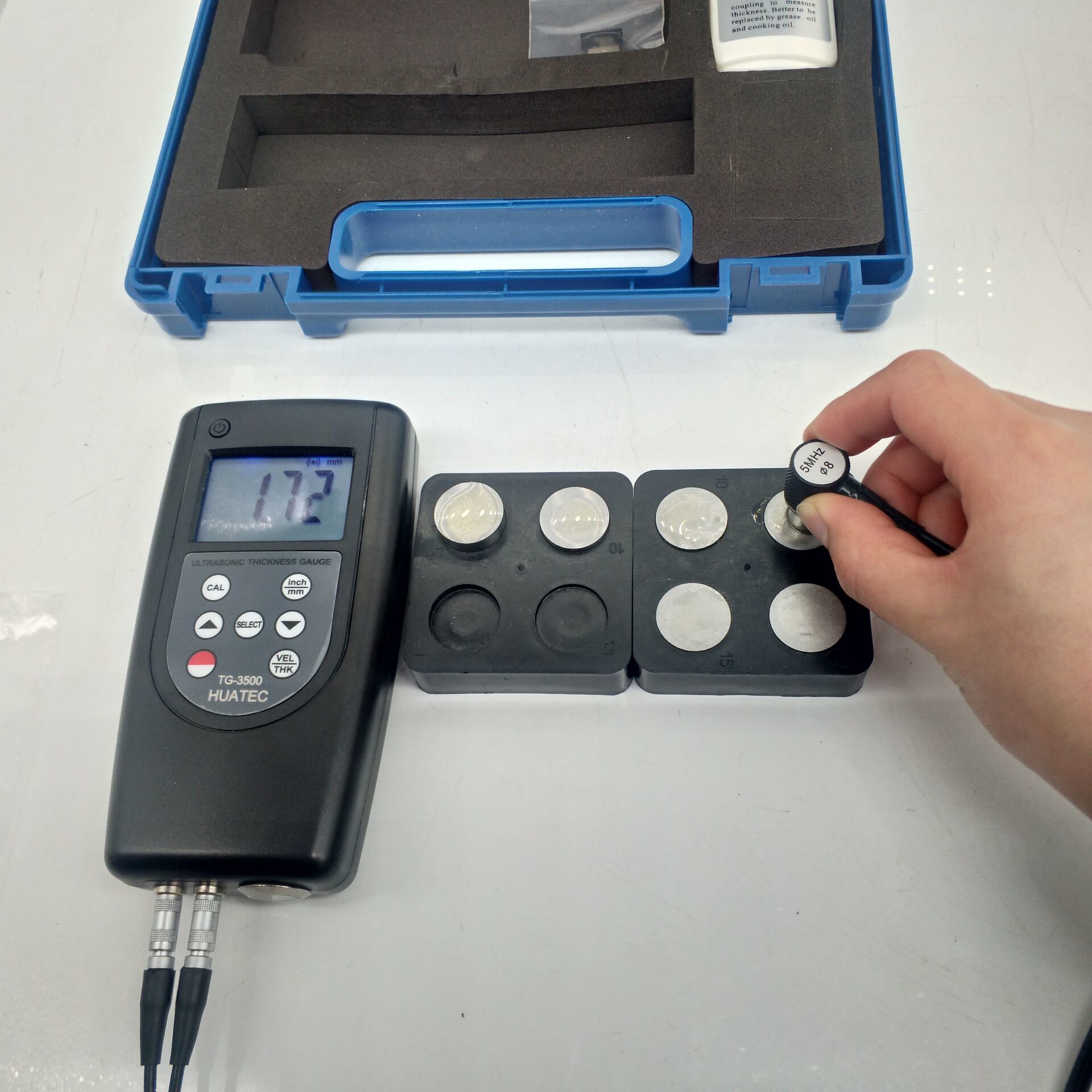

Optional calibration block for ultrasonic

400mm Digital LCD Ultrasonic Wall Thickness Gauge 1400mm Digital LCD Ultrasonic Wall Thickness Gauge 2400mm Digital LCD Ultrasonic Wall Thickness Gauge 3
