Visible Light Camera Digital Infrared Thermometer With 3.5 Inch Touch Screen

Visible Light Camera Digital Infrared Thermometer With 3.5 Inch Touch Screen
Features Gallery Product Description Request A Quote
Display: With A 5-million Pixels Visible Light Camera
Standards: ISO, DIN, ANSI, JIS
Operation: 3.5 Inch Touch Screen
Focus: Auto Focus
Battery: Battery Life Up To 6 Hours
Software: Offline Analysis Software
Microbolometer: 17μm 640*480 Microbolometers
High Light:

infrared thermometer sensor


digital infrared thermometer

Basic Infomation
Place of Origin: Beijing
Brand Name: HUATEC
Certification: ISO, CE, GOST
Model Number: HIR-4R
Payment & Shipping Terms
Packaging Details: Standard export package
Delivery Time: 2 days
Payment Terms: T/T, Paypal, Western Union
Supply Ability: 500pcs per month
Product Description

Visible Light Camera Digital Infrared Thermometer With 3.5 Inch Touch Screen

Product Features and Advantages

  • State of the art 17μm 640*480 microbolometers, superior image quality and thermal sensitivity(<40mk);
  • Low power consumption, no TEC and Heater operation;
  • With a 5-million pixels visible light camera, Precise fusion with infrared images;
  • With DDE algorithm , clearer details and 10 palettes.;
  • 3.5 inch touch screen;
  • Auto focus;
  • Battery continuous working time: up to 6 hours;
  • Offline analysis software.

Technical Specification

Detector TypeFocal Plane Array, Uncooled Microbolometer
Spectral Band7.5~14μm
Pixel Resolution640×480
Pixel Size17μm
Maximum Frame Rate50Hz
Measurement & Imaging Performance
Temperature RangesTo see the“HIR-7R temperature & model index”
Thermal Sensitivity(NETD)
Field of ViewTo see the “HIR-7R optional lens index”
Spatial Resolution
Visible Light Camera5-million pixels,62°Field of View
LCD3.5 inch ,640*480 touch screen
FocusingManual Focus / Auto Focus
Clear imaging range0.3m~∞

Background Temperature Correction
Radiance Correction

Auto Correction by User Background Temperature Input ,0.01~1
Optical Filter/Window CorrectionAuto Correction by User Transmission Input
Display modeFull infrared, full visible, picture in picture, fusion (proportional adjustable), color warning
Temperature Measurement ModeReal Time Central Temperature Display,high and low temperature tracking,User Defined Line/Probes of Interest
Automatic AlarmingUser Defined Alarming Threshold
Frame FreezeSupported
Image EnhancementDetail Enhancement Technology
Palettes10 Palettes: including Grayscale, Grayscale inverted, Ironbow, Hot metal, etc.
Digital Zoom2X,4X
Data Storage
TF card32GB TF card
Temperature data storageSelf defined MGT format, dealing with offline software Thermoscope
Video StorageH.264
Report GenerationWord format with user guide
Voice Annotation60 seconds
Text AnnotationSupported
Environmental parameters
Operating Temperature-30~60℃,to see the next page
Storage Temperature-40~80℃
Enclosure ratingIP54
Electromagnetic CompatibilityComply with CE/FCC standards
Real-time temperature data transmissionEthernet(Optional)
Video OutputPAL/NTSC(Optional)
Image And Video ExportUSB interface or card reader
Laser IndicationYes
External Power SupplyDC 12V
BatteryRechargeable lithium battery, working 6 hours
Weight0.6kg(Include 25mm auto len)

HIR-7R temperature & model index

ModelTemperature rangeNETDAccuracyEnvironment temperatureNote
HIR-7R-20~150<60 mK2℃or2%-10~50Conventional type
HIR-7R3-20~300<100 mK2or2%-10~50Medium temperature type
HIR-7R50~500150mK2or2%0~50High temperature type
HIR-7R10150~1000 2%0~50High temperature type
HIR-7R16250~1600 2%0~50High temperature type
Please contact us for the rest temperature range.

HIR-7R optional lens index

FocusFOVSpatial resolutionHuman detection/recognition/recognition distanceVehicle detection distance
15mm26o×20o1.13 mrad540m/140m/70m1100m
25mm15o×11.3o0.68 mrad850m/210m/110m1700m
50mm(Use double mirror)7.5o×5.6o0.34 mrad1500m/380m/190m2800m
Please contact us for the rest FOV

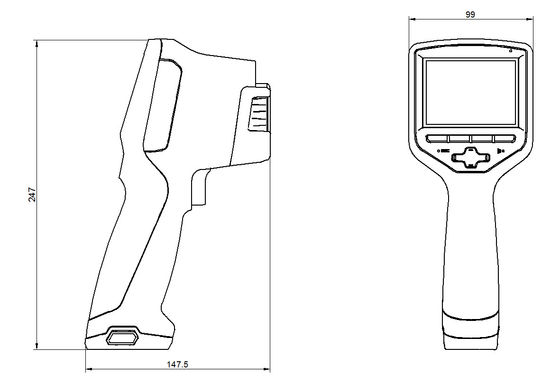

HIR-7R dimension(mm)
Visible Light Camera Digital Infrared Thermometer With 3.5 Inch Touch Screen 0
