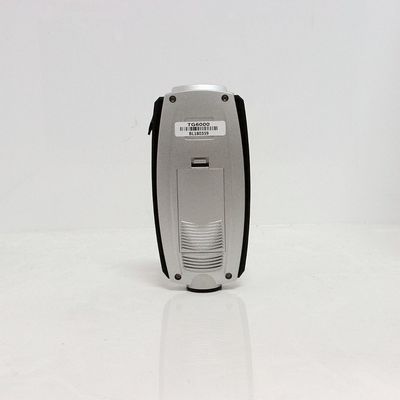

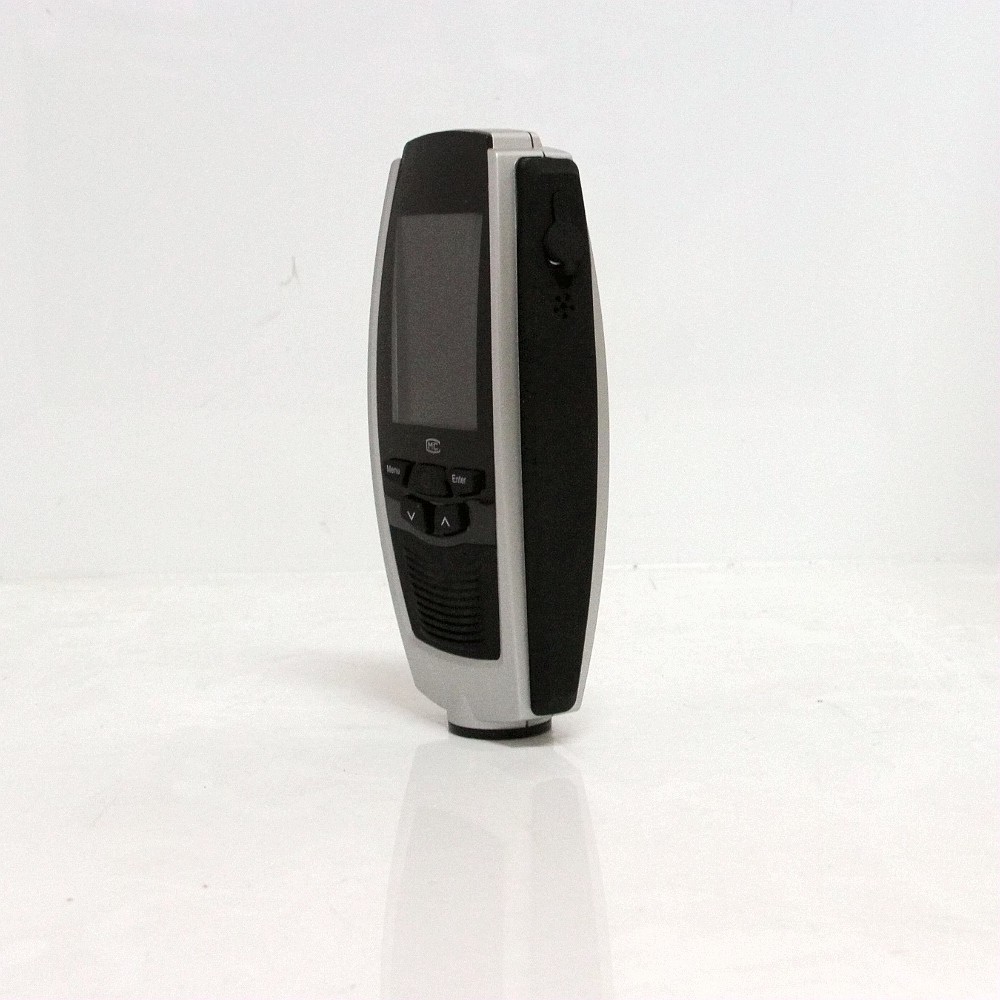

Digital Paint Coating Thickness Meter Machinery Layer Thickness Gauge Paint Thickness Meter Gauge
1pcs
MOQ
Digital Paint Coating Thickness Meter  Machinery Layer Thickness Gauge Paint Thickness Meter Gauge
Features Gallery Product Description Request A Quote
Features
Basic Infomation
Place of Origin: Beijing
Brand Name: HUATEC
Certification: ISO, CE, GOST
Model Number: TG 6000
High Light:

oating thickness tester

,

coating thickness meter

Payment & Shipping Terms
Packaging Details: Standard export package
Delivery Time: 1-4days
Payment Terms: T/T, Paypal, Western Union
Supply Ability: 500pcs per month
Specifications
Material: ABS
Color: Black
Deviation: ±(1~3)%H±1μm,
Data Interface: Bluetooth 2.0 Wireless
Display: 2.4inches Color Screen
Resolution: 0.1um/0.01mil
Measuring Range: Depends On Probes
Product Name: Marx210 High Quality Metal Probles Coating Thickness Gauge,Accurate Magnetic Coating Thickness Gauge
Power: 1.5V(AAA)*2
Warranty: 12 Months
Product Description

Digital Paint Coating Thickness Meter Machinery Layer Thickness Gauge Paint Thickness Meter Gauge

Principles of measurement

TG-6000 SERIES Coating Thickness Gauges can equip with different kind of probes, customer should choose right probe when ordering. For example, Fe probe use magnetic induction method to measure the thickness of non-magnetic coating on ferromagnetic material, NFe probe use eddy current method to measure the thickness of non-conductive coating on conductive metal.

Applied range

This gauge can be used widely in machinery, automobile,shipbuilding,petroleum,chemical,electroplating, spraying plastics, enamel, plastics and so on.

Technique parameter

Gauge parameter
Probe type F N
Theory Magnetic induction Eddy current
Temperature compensation PLL technique
Measure range Depend on Probe
Display 2.4 inch TFT color screen,320*240 resolution
Data interface Bluetooth 2.0, can be communicated with PC and printer by wireless
Saving Auto and Manual save, 1000 saving files, each file can save 12 data
Calibration Matrix, system, One-point
Measuring speed Single, continuous
Language English
Calender Information of date and measure data of date
Unit Metric or British system
Back light Manual set 6 different levels of brightness
Shutdown Manual or auto shutdown
Measure mode Simplify; Minimum value capture; Monitoring mode; Statistical




Gauge parameter
Working environment

Humidity:≤90%;
Temperature:-10℃~+40℃

Working period Over 10,000 data(lowest back-light level)
Power 2 AA batteries
Size 150mm(L)*68mm(W)*33mm(H)
Weight 220g(include batteries)











Probe parameter
Type F0.5 F1.2 N1.2 F3 F5 F10
Measure range 0~0.5 0~1.25 0~1.25 0~3 0~5 0~10
Min plane diameter for matrix 10 15 19 16 18 22
Min radius of matrix(concave) 5 6 10 10 10 12
Min radius of matrix(convex) 1.5 1.5 5 5 5 5




Probe parameter
Type F0.5 F1.2 N1.2 F3 F5 F10
Min diameter for Internal corrosion protection probe 40 42 80 60 60 70

Deviation
(H is thickness)

±(1~3)%H±1μm,
Or H±2μm

±(2~3)%H
±2μm

±(2~4)%H
±2μm

Probe type F for magnetic,N for eddy current
Min thickness for matrix F:1mm, N:0.5mm
Attention:the units above is MM.






















Function

  1. Display :2.4inches color screen can be adjusted to your preferred brightness, then our measuring work will be more easier.
  2. Probe:depend on which type of gauge.
  3. Data interface: bluetooth 2.0 wireless.
  4. Temperature compensation:the unique technology PLL【phase locked loop】.
  5. Measuring mode:simplify,monitoring,statistical,minimum value capture.
  6. Calibration:matrix,system,One-point.
  7. Permanent calendar:time, or save the data information with measuring data if operator doing measuring work.
  8. Saving method: Manual or automatic.
  9. Measuring speed:single or continuous measurement.
  10. Language: English.
  11. Gauge information: can check gauge software version and manufacturer information.
  12. Restore factory settings.

Digital Paint Coating Thickness Meter  Machinery Layer Thickness Gauge Paint Thickness Meter Gauge 0
