DIN Cup Test The Thin Liquid At Low Viscosity With DIN 53211 Standard

1pcs
MOQ
DIN Cup Test The Thin Liquid At Low Viscosity With  DIN 53211 Standard
Features Gallery Product Description Request A Quote
Features
Specifications
Orifice Precision: ± 0.02mm
Volume: 100 Ml
Material: Cup Body-aluminum Alloy; Nozzle-stainless Steel
Highlight:

oating thickness tester

,

digital thickness gauge

Basic Infomation
Place of Origin: Beijing
Brand Name: HUATEC
Certification: ISO, CE, GOST
Model Number: HT1108
Payment & Shipping Terms
Packaging Details: Standard export package
Delivery Time: 1-4days
Payment Terms: T/T, Paypal, Western Union
Supply Ability: 500pcs per month
Product Description

Product Introduction:

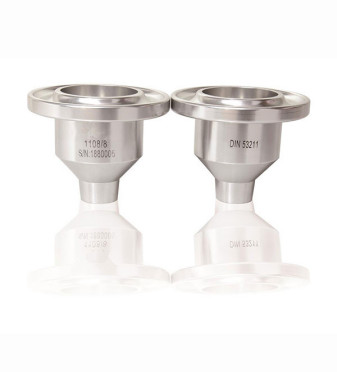

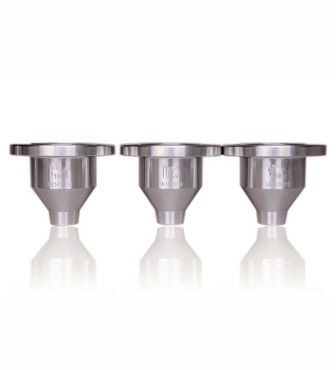

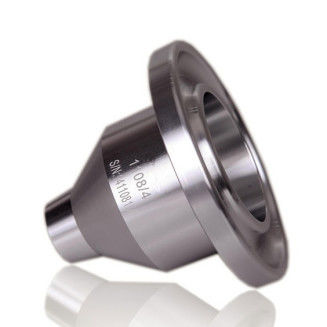

DIN Cup is designed according to DIN 53211 standard and adapted to test the thin liquid at low viscosity.

DIN Cup Test The Thin Liquid At Low Viscosity With  DIN 53211 Standard 0



DIN Cup Test The Thin Liquid At Low Viscosity With  DIN 53211 Standard 1

DIN Cup Test The Thin Liquid At Low Viscosity With  DIN 53211 Standard 2

DIN Cup Test The Thin Liquid At Low Viscosity With  DIN 53211 Standard 3

Introduction:

DIN Cup is designed according to DIN 53211 standard and adapted to test the thin liquid at low viscosity.

Technical Specification:

◆Orifice Precision: ± 0.02mm
◆Volume: 100 ml
◆Material: Cup body-aluminum alloy; Nozzle-stainless steel

Order Information:

Order No. Orifice(mm) Viscosity Range(cSt)
1108/2 2 15~30
1108/4 4 112~685
1108/6 6 550~1500
1108/8 8 1200~3000
