Portable Digtal flaw detector ultrasonic Crack Inspection Welding inspection

1pcs
MOQ
Portable Digtal flaw detector ultrasonic Crack Inspection Welding inspection
Features Gallery Product Description Request A Quote
Features
Specifications
High Light:

digital ultrasonic flaw detector

,

ultrasonic flaw detectors

Basic Infomation
Place of Origin: Beijing
Brand Name: HUATEC
Certification: ISO, CE, GOST
Model Number: FD510
Range: 0-6000mm
Gain: 0-110dB
Curve offered: DAC、AVG、AWS
Protection: IP65,water/oil proof,dust proof
Noise: Very low noise
Payment & Shipping Terms
Packaging Details: Standard export package
Delivery Time: 1-4days
Payment Terms: T/T, Paypal, Western Union
Supply Ability: 500pcs per month
Product Description

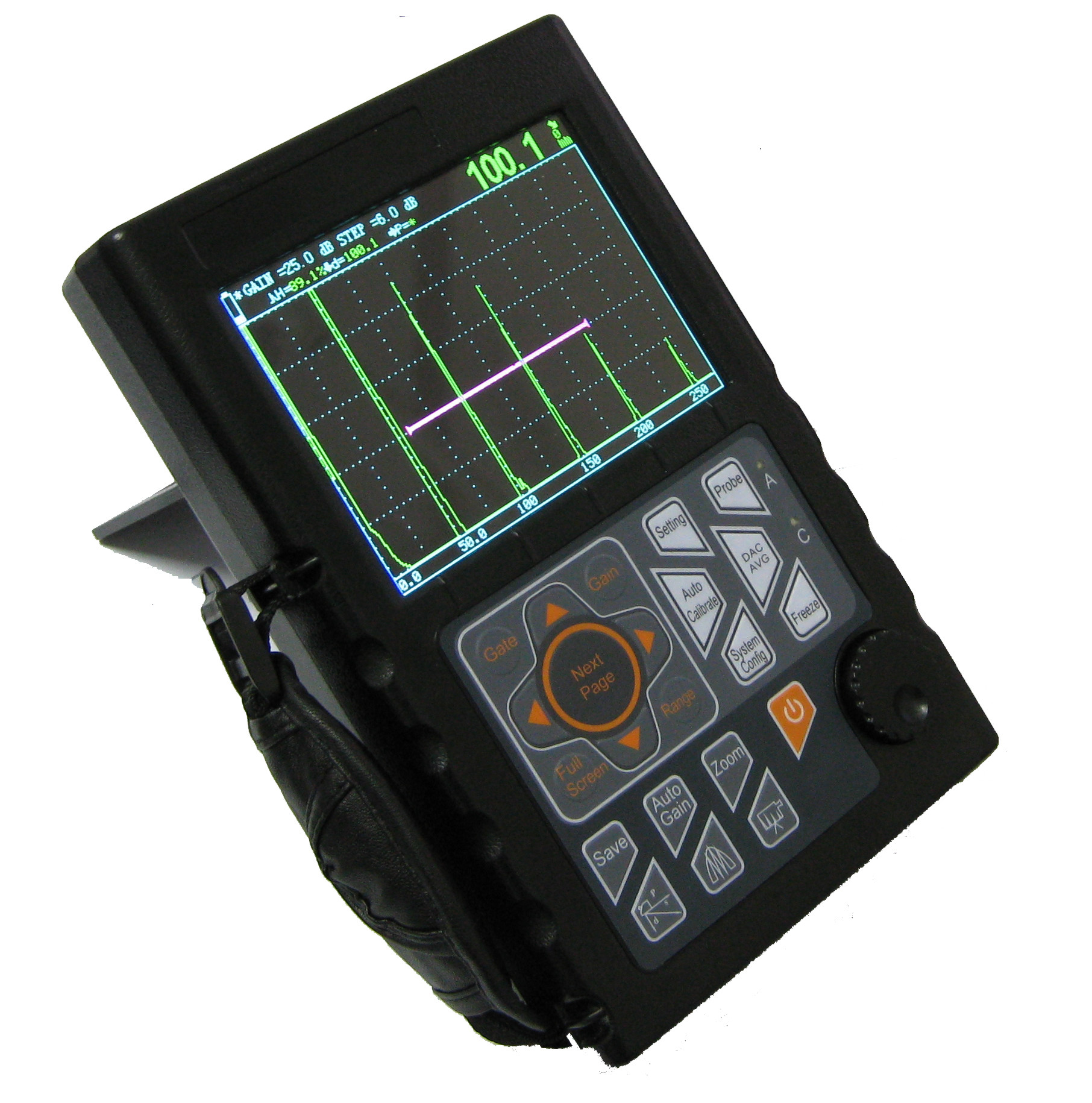

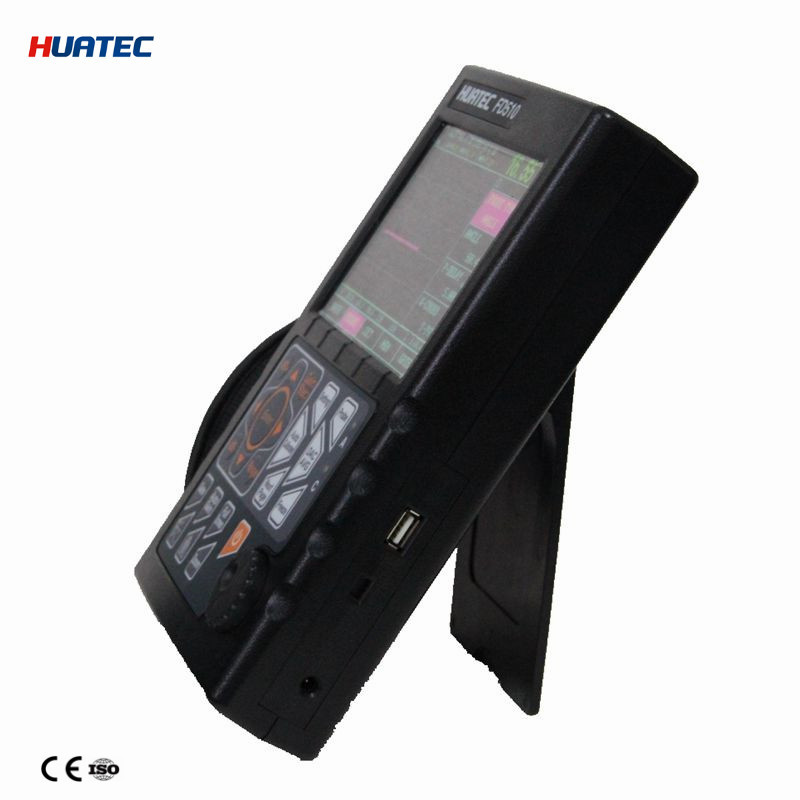

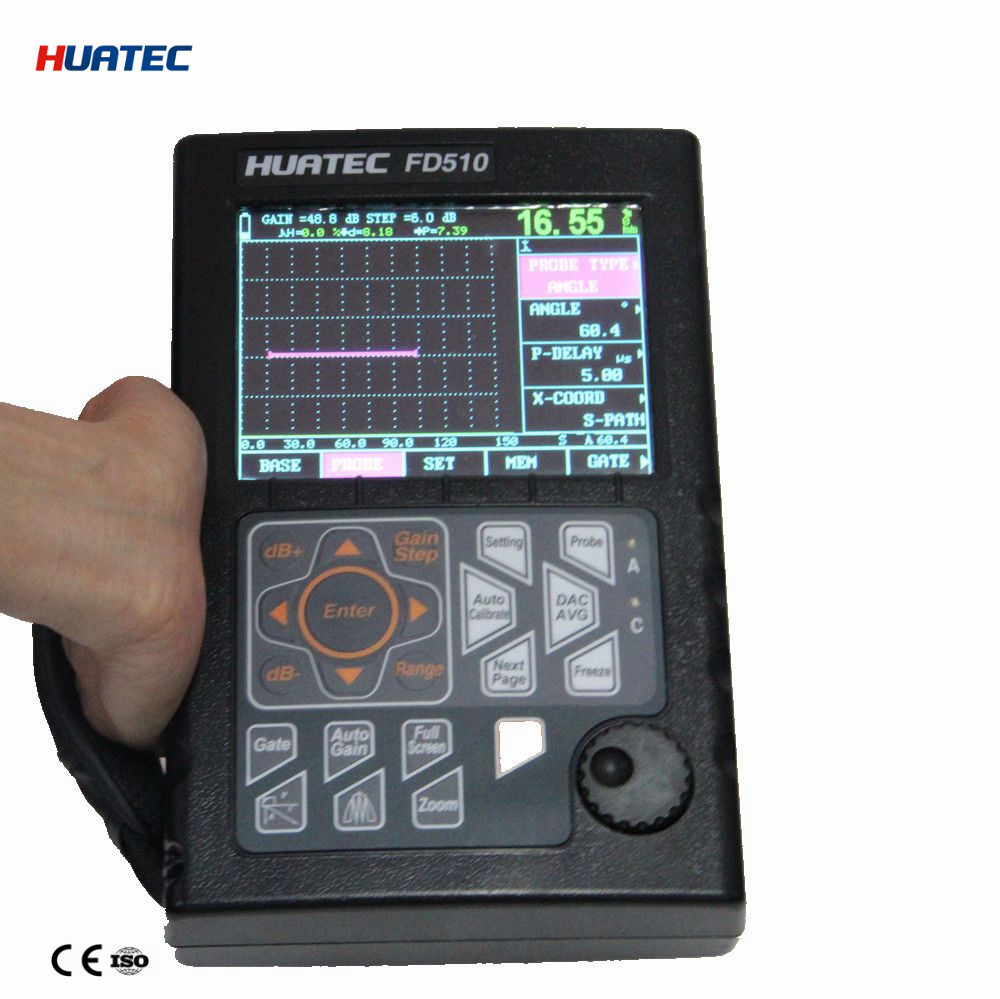

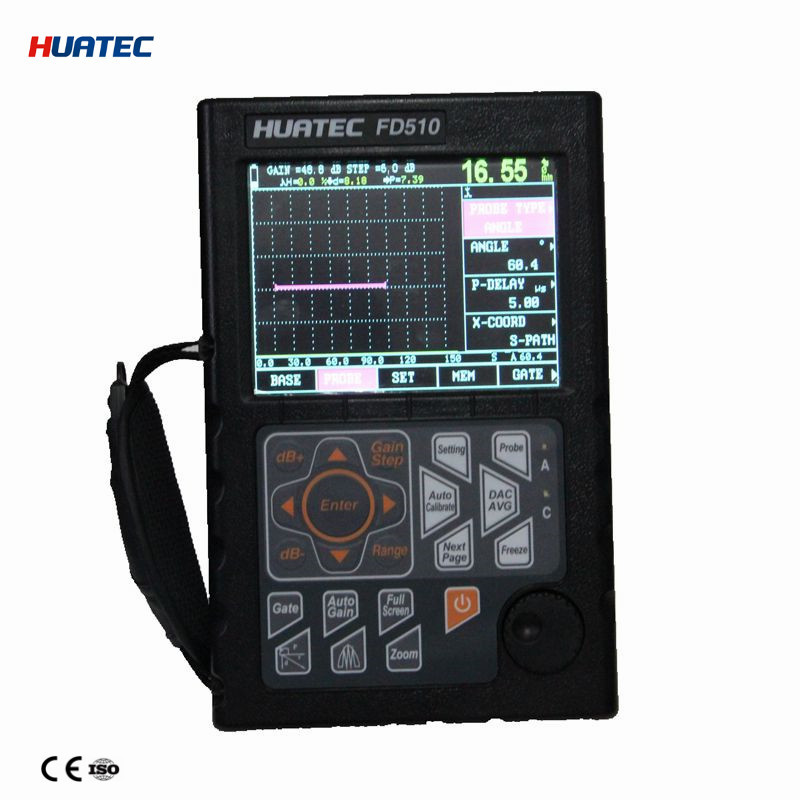

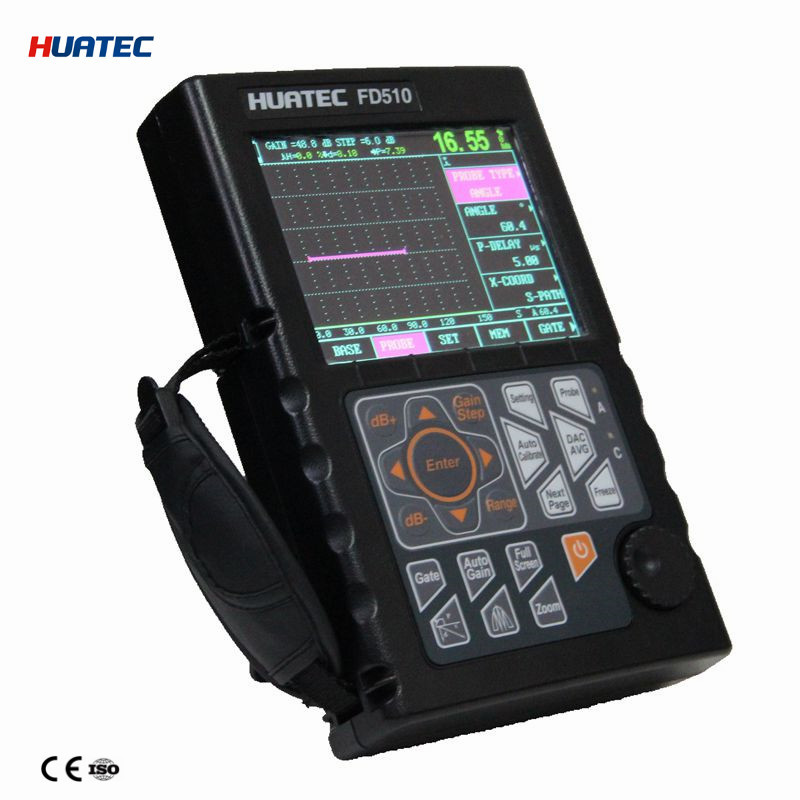

Portable Digtal flaw detector ultrasonic FD510 , High Resolution, Crack inspection, Welding inspection



Main faetures:



★ Automated calibration,Automated gain, 0-110dB gain

★  DAC,AVG,TCG,B scan,AWS

★  High-speed capture and very low noise

★  Solid metal housing,water / oil proof,dust proof

★  high contrast viewing of the waveform from bright

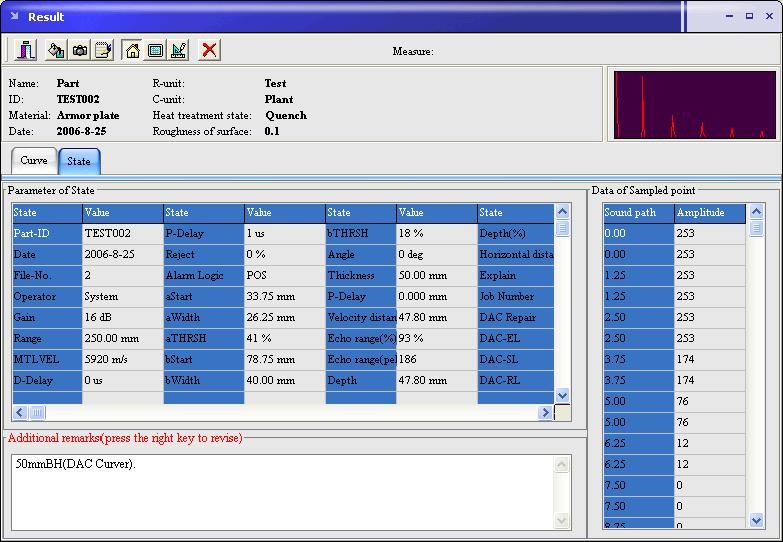

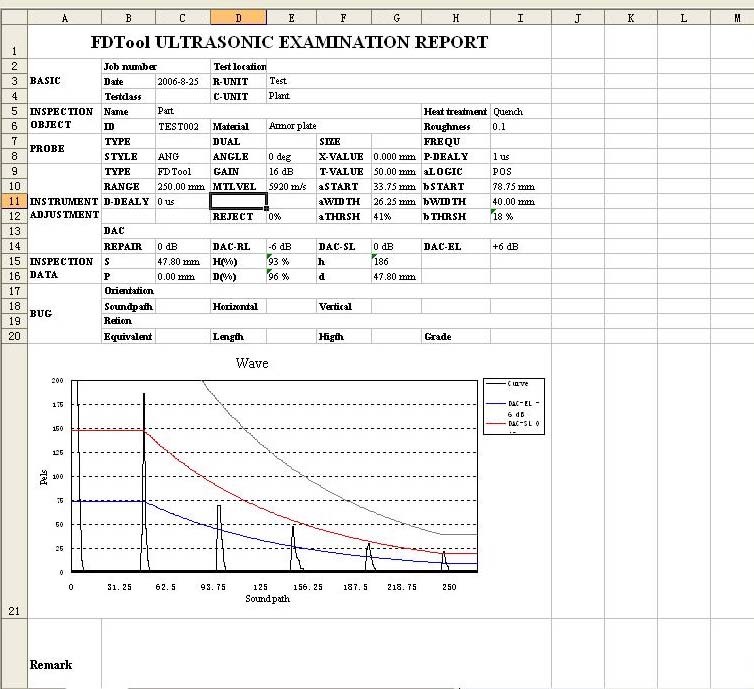

★  Powerful pc software and reports can be export to excel





  • Automated display precise flaw location(Depth d,level p,distance s,amplitude,sz dB,ф);
  • Automated switch three staff gauge ((Depth d,level  p,distance s);
  • Automated calibration of transducer Zero-point, Angles, Front edge and material Velocity ;
  • Convenient to make and use DACTCG and AVG to evaluate the echo, the curve can be modified and compensated
  • 6dB DAC functions;
  • 100 independence setup, any criterion can be input freely, we can work in the scene without test block;
  • Big memory of 500 A graph
  • Automated gain and gain scan;
  • Peak Hold and Peak Memory;
  • B scan;
  • AWS D1.1
  • Automated make video of test process and play; use upan,the length of video is unlimited.

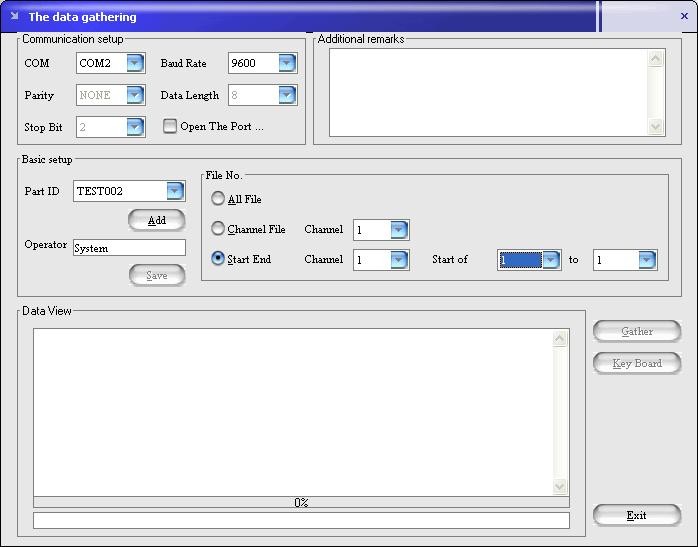

  • Powerful pc software and reports can be export to excel;
  • Li battery, continue working time up to 9 hours;
  • The embeded software can be online updated;
  • Other assistant function

    • Display freeze;
    • Automated echo degree;
    • Angles and K-value;
    • Lock and unlock function of system parameters;
    • Electronic clock calendar ;
    • Two gates setting and alarm indication;
    • Gate and DAC alarm;
  • Title

Parameter

Title

Parameter

Measuring Range(mm)

0 ~  6000

Measurement Mode

Single,Dual,Thru

Vertical Linearity Error

≤3%

Reject

0~80%

Horizontal Linearity Error

≤0.1%

Pulse Displacement(μs)

-20 ~  +3400

Sensitivity Leavings

≥62dB

Zero(μs)

0.0 ~  99.99

Dynamic range

≥32dB

Port Type

BNC(Q9)

Resolving Power

≥36dB

Operating Temperature  (℃)

-20~50

Frequency Range(MHz)

0.5 ~  15

H×W×D(mm)

240×156×48

Gain(dB)

0 ~  110

Weight(kg)

1.0(with battery)

Material Velocity(m/s)

1000 ~  15000







Portable Digtal flaw detector ultrasonic Crack Inspection Welding inspection 0

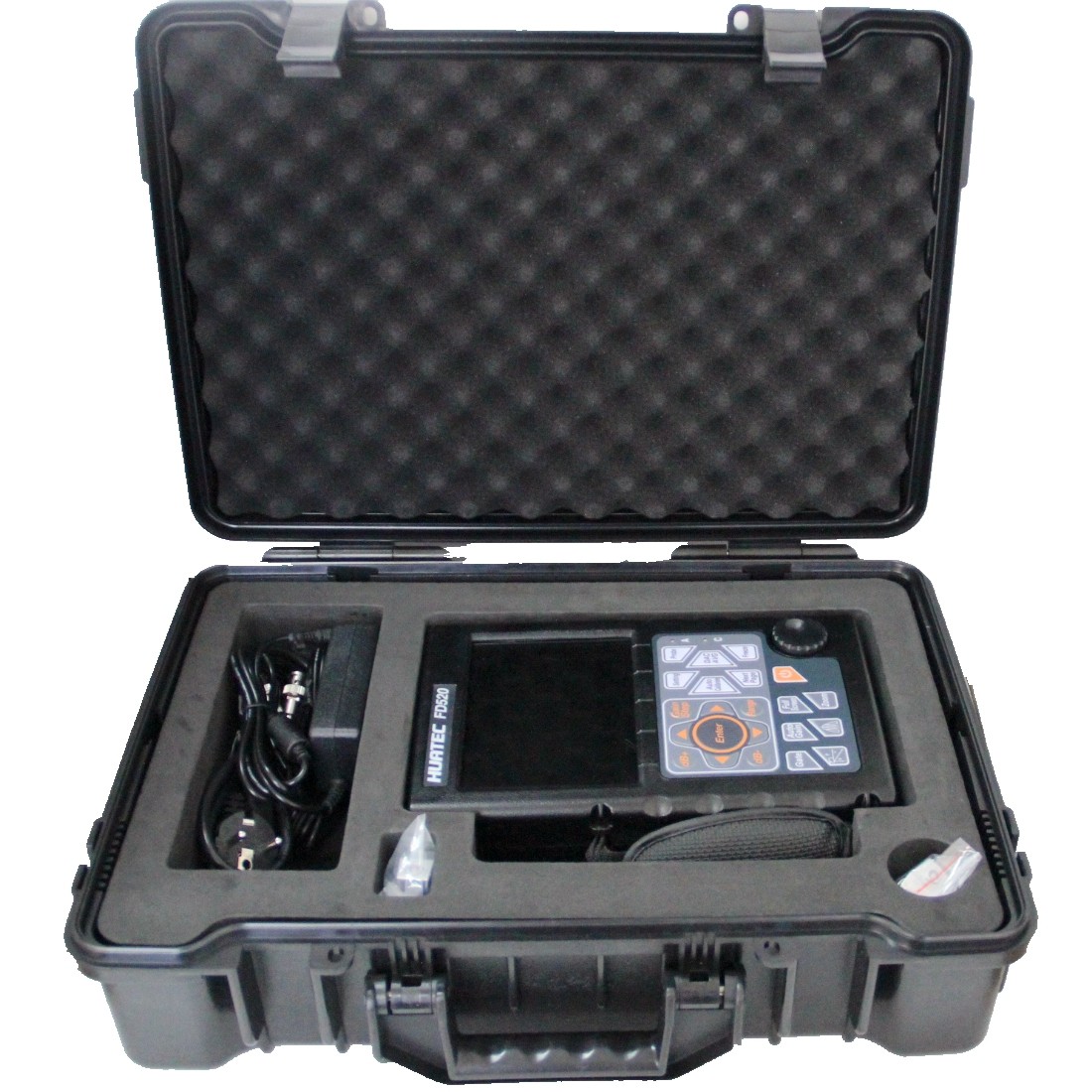

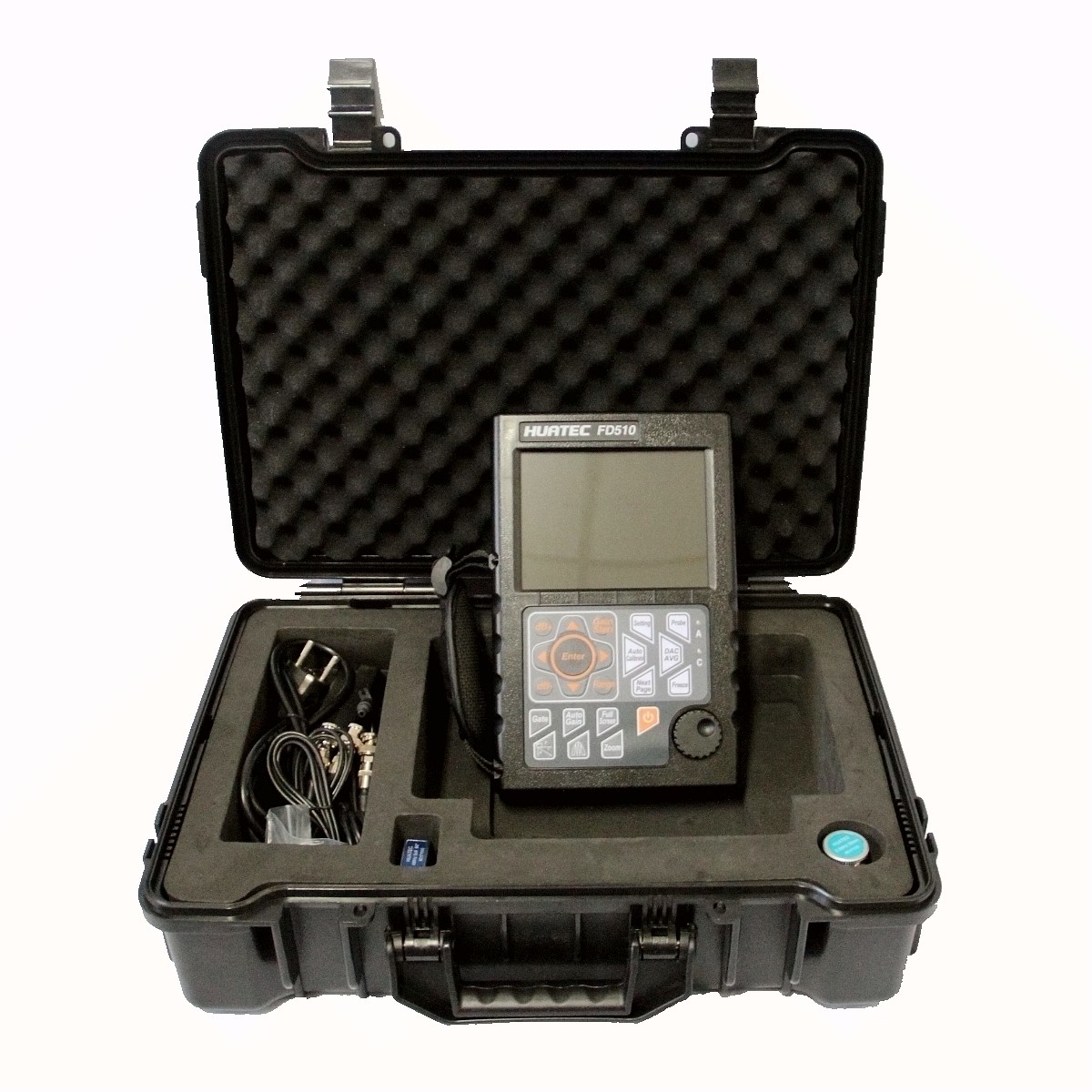

  • Standard Delivery:

    Main unit

    2.5MHZ-ф20 straight probe

    4MHZ-8x9mm, 60degree angle probe

    4A/9Vpower adapter

    Probe connection cable (BNC to BNC)

    Probe connection cable (BNC to Lemo 00)

    Instruction manual

    Carrying case

    RS232-USB converter



    Additional Accessories:

    Data managing software

    Data managing cables RS232

    Straight probe (5MHZ-ф20)

    Straight probe (2.5MHZ-ф20)

    Straight probe (2.25MHZ-ф20)

    Straight probe (1MHZ-ф20)

    Angle probe (4MHZ-45degree, 8*9mm)

    Angle probe (4MHZ-60degree, 8*9mm)

    Angle probe (4MHZ-70degree, 8*9mm)

    Angle probe (4MHZ-80degree, 8*9mm)

    Angle probe (2MHZ-45degree, 8*9mm)

    Angle probe (2MHZ-60degree, 8*9mm)

    Angle probe (2MHZ-70degree, 8*9mm)

    Angle probe (2MHZ-80degree, 8*9mm)

    Probe T/R (5MHz-ф20mm, focus 15mm)

    Probe T/R (2.5MHz-ф20mm, focus 15mm)

    Connection cable to probe (BNC-BNC)

    Connection cable to probe (BNC-Lemo 00)

    Connection cable to probe (BNC-Lemo 01)

    Connection cable to probe (Lemo 00-Lemo 01)

    Lithium ion battery

    Power adapter (4A/9V)

    Power Cable

    Leather case

  • Comparison sheet
  • Portable Digtal flaw detector ultrasonic Crack Inspection Welding inspection 1 Portable Digtal flaw detector ultrasonic Crack Inspection Welding inspection 2
  •
  • Title

    FD510

    FD520

    FD550

    Measuring Range

    0-6000mm

    0-10000mm

    0-10000mm

    Material Velocity(m/s)

    1000-15000

    1000-15000

    1000-15000

    Gain(dB)

    110dB

    120dB

    130dB

    Frequency Range(MHz)

    0.5-15M

    0.5-15M

    0.5-20M

    Memory

    500

    1000

    1000

    independence setup

    100

    500

    500

    sz dB,ф

    Peak Hold and Peak Memory

    B scan

    X

    DAC

    AVG

    TCG

    X

    STANDARD(13 standards in-built)

    Automated calibration( IIW )

    Automated calibration(two hole )

    X

    X

    6dB DAC

    X

    make video

    unlimited

    unlimited

    pc software

    updated online

    curved surface correction

    AWS

    Pulse energy

    Pulse width

    Gate alarm

    DAC alarm

    continue working time

    9 hours

    12 hours

    12 hours

    Port Type

    BNC

    BNC

    BNC

    Overall dimension (mm)

    238×160×48

    238×160×48

    238×160×48

    Weight (kg)

    1.0

    1.0

    1.0
