160KV 480W High Voltage X Ray Flaw Detector with 22mm Penetration

1pcs
MOQ
160KV 480W High Voltage X Ray Flaw Detector with 22mm Penetration
Features Gallery Product Description Request A Quote
Features
Specifications
Output: 80~160 Kv ±1kv
Focus Spot: 3.0mm
Max Penetration: 22mm
Material: Steel
Radiation Angle: 40°
Usage: Industrial X-Ray Testing,weld Testing,Industrial X Ray Testing Machine
Power Supply: AC190~265 V/50~60 Hz
Application: Industrial X-Ray Testing,welding Seam Detecting
Warranty: 12 Months
Exposure Time: Can Continuously Work 99 Minutes
Controller Weight: 9.6kg
Generator Size: ф246x596(DXL)
Generator Weight: 17kg
X Ray Tube: Ceramic
MA Adjustment Range: 0.5~3 MA ±0.1mA
Max Power: 480W
Duty Circle: 100% At An Ambient Temperature Of 20 ℃
Highlight:

160KV X-Ray flaw detector

,

480W high voltage detector

,

22mm penetration X-Ray Flaw Detector
Basic Infomation
Place of Origin: Beijing
Brand Name: HUATEC
Certification: ISO, CE, GOST
Model Number: XXG-H160GP
Output voltage: 80~160 kv
Payment & Shipping Terms
Packaging Details: Standard export plywood package
Delivery Time: 5days
Payment Terms: T/T,Paypal,Western Union
Supply Ability: 500pcs per month
Product Description

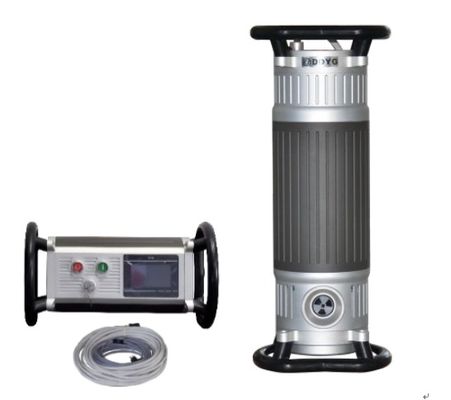

160KV 480W High Voltage X Ray Flaw Detector with 22mm Penetration
Product Overview

This lightweight 480W 160KV high voltage X-ray constant potential flaw detector offers exceptional 22mm penetration capability, making it ideal for industrial X-ray testing and weld inspection applications.

Key Features
  • Continuous operation at 35℃ and 160kv/3mA conditions
  • Wide input voltage range for versatile field operation
  • Lightweight design with ceramic tube for vibration resistance

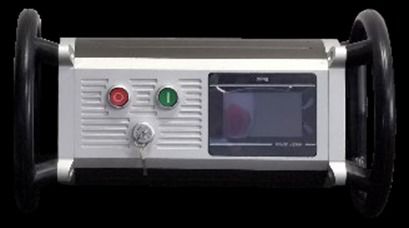

  • Intuitive operation interface with cylindrical controller design
  • High penetration capability up to 22mm steel
  • 95% power efficiency with lightweight cables
  • 99 minutes continuous operation with no rest time required
  • Continuously adjustable tube voltage and current (0.5-22mm penetration)
  • High frequency design reduces faults (no high voltage coil)
  • Compatible with HUAETC and other DR Panel image systems
Technical Specifications
Parameter Value
X-ray Generator Weight 17kg
Generator Dimensions ф246x596(DXL)
Controller Weight 9.6kg
Controller Dimensions ф264x458mm (with end ring)
Focus Spot Size 3.0mm
Radiation Angle 40°
Maximum Penetration (Fe) 22mm(A3) F=600mm
kV Adjustment Range 80~160 kv ±1kv
mA Adjustment Range 0.5~3 mA ±0.1mA
Maximum Power 480W
Protection Temperature 75℃
Duty Cycle 100% at 20℃ ambient
Power Supply AC190~265 V/50~60 Hz
Storage Temperature -25°C to +70°C
Package Contents
  • 10-core signal connecting cable
  • 2-core power cable
  • Ground line
  • Appendage package set
Warranty

12 months warranty (excluding man-made causes and force majeure reasons).

System Features

High frequency, low mA operation enables continuous work capability. The robust hardware design offers long service life with minimal failure rates. Features strong anti-interference capability and operates within 180V~260V power grid range. Lightweight cables and generator head enhance portability.
