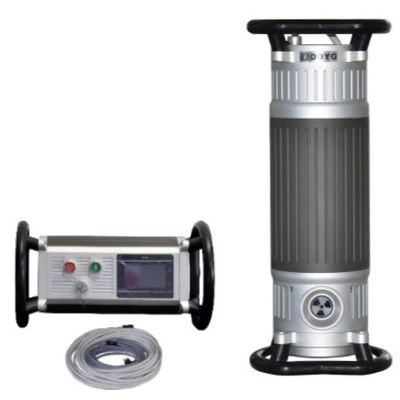

40mm Penetration 600W 200KV High Voltage X Ray Flaw Detector

1pcs
MOQ
40mm Penetration 600W 200KV High Voltage X Ray Flaw Detector
Features Gallery Product Description Request A Quote
Features
Specifications
Output: 80~200 Kv ±1kv
Focus Spot: 2.5mm
Max Penetration: 40mm
Material: Steel
Radiation Angle: 40°
Usage: Industrial X-Ray Testing,weld Testing,Industrial X Ray Testing Machine
Power Supply: AC190~265 V/50~60 Hz
Application: Industrial X-Ray Testing,welding Seam Detecting
Warranty: 12 Months
Exposure Time: Can Continuously Work 99 Minutes
Controller Weight: 9.6kg
Generator Size: ф246x596(DXL)
Generator Weight: 17kg
X Ray Tube: Ceramic
MA Adjustment Range: 0.5~3 MA ±0.1mA
Max Power: 600W
Duty Circle: 100% At An Ambient Temperature Of 20 ℃
Highlight:

40mm penetration X-ray flaw detector

,

600W high voltage X-ray detector

,

200KV industrial X-ray flaw detector

Basic Infomation
Place of Origin: Beijing
Brand Name: HUATEC
Certification: ISO, CE, GOST
Model Number: XXG-H200GP
Output voltage: 80~200 kv
Payment & Shipping Terms
Packaging Details: Standard export plywood package
Delivery Time: 5days
Payment Terms: T/T, Paypal, Western Union
Supply Ability: 500pcs per month
Product Description
40mm Penetration 600W 200KV High Voltage X Ray Flaw Detector
Product Specifications
Attribute Value
Output 80~200 kv ±1kv
Focus spot 2.5mm
Max penetration 40mm
Material Steel
Radiation angle 40°
Usage Industrial X-Ray Testing, weld testing, Industrial x ray testing machine
Power supply AC190~265 V/50~60 Hz
Application Industrial X-Ray Testing, welding seam detecting
Warranty 12 Months
Exposure time Can continuously work 99 minutes
Controller weight 9.6kg
Generator size ф246x596(DXL)
Generator weight 17kg
X ray tube Ceramic
mA adjustment range 0.5~3 mA ±0.1mA
Max power 600W
Duty Circle 100% at an ambient temperature of 20 ℃
Product Description

Penetrate 40mm 600W 200KV High Voltage X Ray Constant Potential Flaw Detector

Main features:

  • Continuous exposure working at 35℃, 200kv/3mA conditions
  • Wide input voltage range, suitable for power supply of various generators, good for on field operation
  • Lightweight, strong penetration, and stable performance
  • The controller adopts a cylindrical design with unique creativity, strong and anti vibration, long life
  • The operation interface is intuitive and friendly to operate
  • High penetration ability: Max.40mm
  • High power efficiency, can be 95%, small cable diameter and light weight
  • Can continuously work 99 minutes, no rest time, improve the work efficiency to a large extent
  • Continuously adjustable for tube voltage and tube current, the machine can penetrate thickness from 0.5mm to 40mm due to different expose time setting. Better image clarity
  • High frequency design will reduce most of fault because it do not have high voltage coil
  • Can work with DR panel image system directly
Technical Parameters
Item Parameters
X ray Generator
Weight 17kg
The external dimensions include the end ring ф246x596(DXL)
X ray Controller
Weight 9.6kg
Dimension Including end ring: ф264x458(mm), excluding end ring: ф188x350 (mm)
Focus Size 2.5mm
Radiation Angle 44°
Maximum penetration (Fe) 50mm(A3) F=600mm
kV adjustment range 80~200 kv ±1kv
mA adjustment range 0.5~3 mA ±0.1mA
Max power 600W
Protect temperature 85℃
Duty Circle 100% at an ambient temperature of 20 ℃
Storage temperature -25°C~ +70°C
Power supply AC200~264V/50~60 Hz

The whole machine features: high frequency, low mA, continuous work. Wide range hardware design has long life and very low failure rate. Strong anti-jamming, power grid can work in 180V~260V, Light cable and light weight of the head. The maximum penetration force: 40mm (F600, D > 2).

Random spare parts included:

  • 10 core signal connecting cable
  • 2 core power cable
  • A ground line
  • A set of Appendage package
The whole equipment is guaranteed for one year (except for man-made causes and force majeure reasons).
