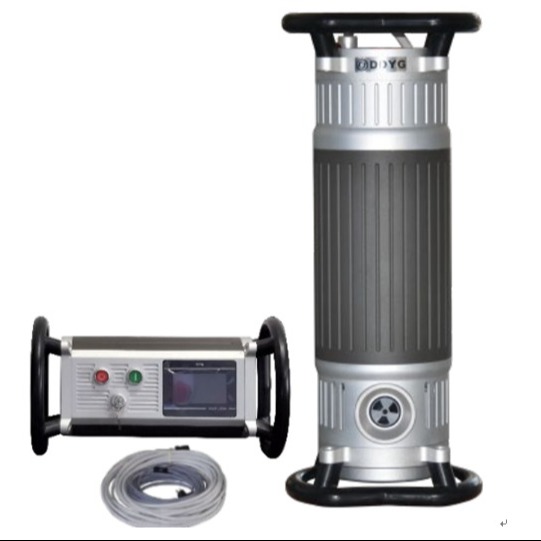

250KV Portable High Frequency X Ray Flaw Detector with 50mm Penetration

Continuous Exposure Penetrate 50mm 250KV Portable High Frequency X Ray Flaw Detector

• Continuous exposure at 250kv/3mA conditions
• Wide input voltage range, suitable for various generators, can be used on field
• Lightweight, strong penetration, and stable performance

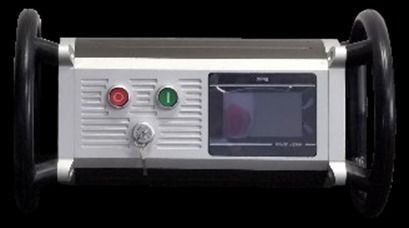

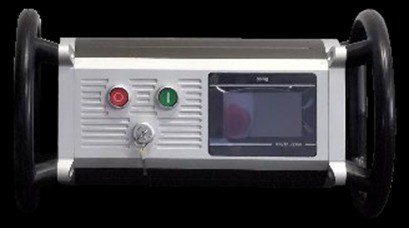

• The controller adopts a cylindrical design with unique creativity, solid and anti vibration
• The operation interface is intuitive and easy to operate
• High penetration ability: Max.50mm
• High power efficiency, can be 95%, small cable diameter and light weight
• Can continuously work 99 minutes, no rest time, improve the work efficiency to a large extent
• Continuously adjustable for tube voltage and tube current, the machine can penetrate thickness from 0.5mm to 50mm due to different expose time setting. Better image clarity
• High frequency design will reduce most of fault because it do not have high voltage coil
• Can work with DR panel image system directly, high resolution image

The whole machine features: high frequency, low Ma, continuous work. Wide range hardware design has long life and very low failure rate. Strong anti-jamming, power grid can work in 180V~260V, Light cable and light weight of the head. The maximum penetration force: 50mm (F600, D > 2).

• 10 core signal connecting cable
• 2 core power cable
• A ground line
• A set of Appendage package

The whole equipment is guaranteed for one year (except for man-made causes and force majeure reasons).
