300KV Portable High Frequency X Ray Flaw Detector for Welding Testing

1pcs
MOQ
300KV Portable High Frequency X Ray Flaw Detector for Welding Testing
Features Gallery Product Description Request A Quote
Features
Specifications
Output: 120-300KV
Focus Spot: 3.0mm
Max Penetration: 70mm
Material: Steel
Radiation Angle: 40°x40°
Usage: Industrial X-Ray Testing,weld Testing,Industrial X Ray Testing Machine
Power Supply: AC190~265 V/50~60 Hz
Application: Industrial X-Ray Testing,welding Seam Detecting
Warranty: 12 Months
Exposure Time: Can Continuously Work 99 Minutes
Controller Weight: 9.6kg
Generator Size: ф295x770(DXL)
Generator Weight: 32kg
X Ray Tube: Ceramic
MA Adjustment Range: 0.5~3 MA ±0.1mA
Max Power: 900W
Duty Circle: 100% At An Ambient Temperature Of 20 ℃
Highlight:

300KV portable X-ray detector

,

high frequency flaw detector

,

welding testing X-ray machine
Basic Infomation
Place of Origin: Beijing
Brand Name: HUATEC
Certification: ISO, CE, GOST
Model Number: XXG-H300GP
Output voltage: 120-300kv
Payment & Shipping Terms
Packaging Details: Standard export plywood package
Delivery Time: 5days
Payment Terms: T/T, Paypal, Western Union
Supply Ability: 500pcs per month
Product Description
300KV Portable High Frequency X Ray Flaw Detector for Welding Testing
Product Specifications
Attribute Value
Output 120-300KV
Focus spot 3.0mm
Max penetration 70mm
Material Steel
Radiation angle 40°x40°
Usage Industrial X-Ray Testing, weld testing
Power supply AC190~265 V/50~60 Hz
Application Industrial X-Ray Testing, welding seam detecting
Warranty 12 Months
Exposure time Can continuously work 99 minutes
Controller weight 9.6kg
Generator size ф295x770(DXL)
Generator weight 32kg
X ray tube Ceramic
mA adjustment range 0.5~3 mA ±0.1mA
Max power 900W
Duty Circle 100% at an ambient temperature of 20 ℃
Product Description
Continuous Exposure Penetrate 70mm Portable High Frequency X Ray Flaw Detector For Welding Testing
Key Features
  • Continuous exposure possible at 35℃ and 300kv/3mA conditions
  • Wide input voltage range, suitable for various generator power supplies
  • Lightweight design with strong penetration and stable performance
  • Unique cylindrical controller design with intuitive operation interface
  • High penetration ability: Maximum 70mm
  • High power efficiency (95%) with small cable diameter and light weight
  • Can continuously work 99 minutes without rest time, significantly improving work efficiency
  • Continuously adjustable tube voltage and current for penetration thickness from 0.5mm to 70mm
  • High frequency design reduces most faults by eliminating high voltage coil
  • Compatible with DR image systems
Technical Specifications
Item Parameters

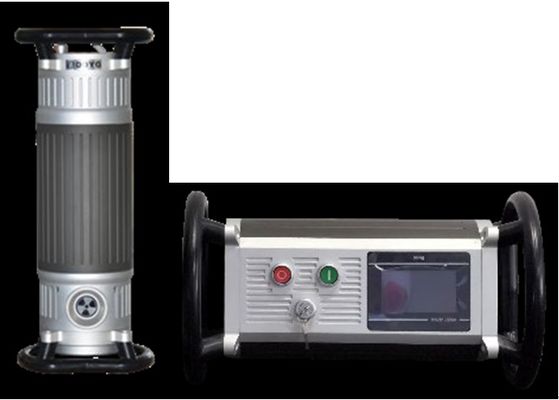

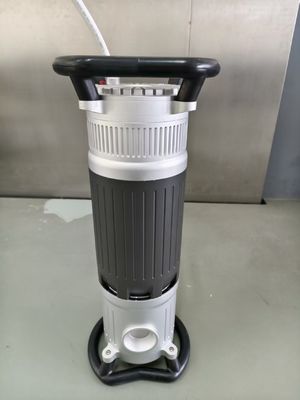

X ray Generator Weight 32kg
External dimensions (including end ring) ф295x770(DXL)
X ray Controller Weight 9.6kg
Dimensions Including end ring: ф264x458(mm), excluding end ring: ф188x350 (mm)
Focus Size 3.0mm
Radiation Angle 40°x40°
Maximum penetration (Fe) 70mm(A3) F=600mm
kV adjustment range 120~300 kv ±1kv
mA adjustment range 0.5~3 mA ±0.1mA
Max power 900W
Protect temperature 75℃
Duty Circle 100% at 20℃ ambient temperature
Storage temperature -25°C~ +70°C
Power supply AC190~265 V/50~60 Hz
Additional Features
  • High frequency, low Ma, continuous work capability
  • Wide range hardware design with long life and very low failure rate
  • Strong anti-jamming capability, works with power grid from 180V~260V
  • Light cable and light weight head design
  • Maximum penetration force: 60mm (F600, D > 2)
Package Includes
  • 10 core signal connecting cable
  • 2 core power cable
  • A ground line
  • A set of appendage package
The whole equipment is guaranteed for one year (except for man-made causes and force majeure reasons).
