X Ray Tube For Airport X Ray Safe Examination Inspection System 160KVp 2mA

X ray glass tube for smiths airport x ray safe examination inspection system Security inspection machine

Detailed Explanation of the Core Components and Working Principle of X-ray Security Inspection Machines

X-ray security inspection machines are widely used devices in public places, mainly to assist security personnel in detecting whether passengers are carrying prohibited items. It is mainly composed of the conveying part, the X-ray source and control part, the signal acquisition, processing and transmission part, the image processing part and the electrical control part

Main application:

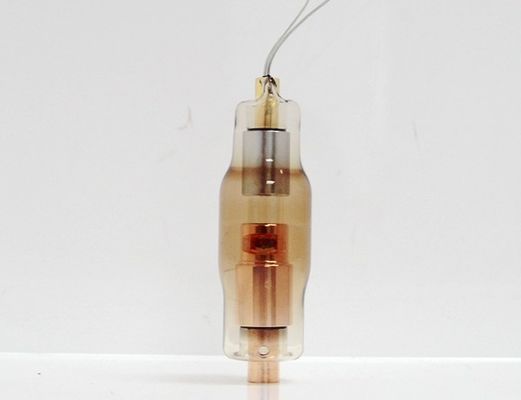

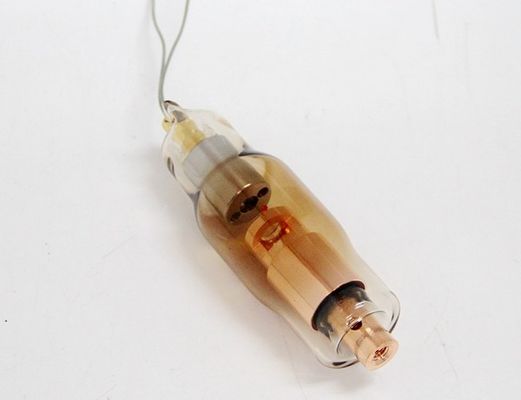

HXA-801 glass x ray tube can be used to universal X-ray system, suitable for inspecting items of various sizes

HXA-801 glass x ray tube applys the best X-ray geometry structure, offer outstanding imaging effects

Can get outstanding image quality, equipped with the new electronic device

HXA-801 glass x ray tube can meet the demands and applications of airports, customs facilities, transportation operations, transportation enterprises and parcel delivery services, or is suitable for situations with high security levels and comprehensive inspections of a large number of items of different sizes

Technical Parameters

Tube voltage: 0-80KV

Tube current: 1mA

Focus size: 0.8*0.8

Filament current: 2.1A

Filament voltage: 5V ± 0.2V

Target angle: 23 o

Target: W

The x ray glass tube can be used with any international brand machines.

We offer customized x ray tube as customer request.
