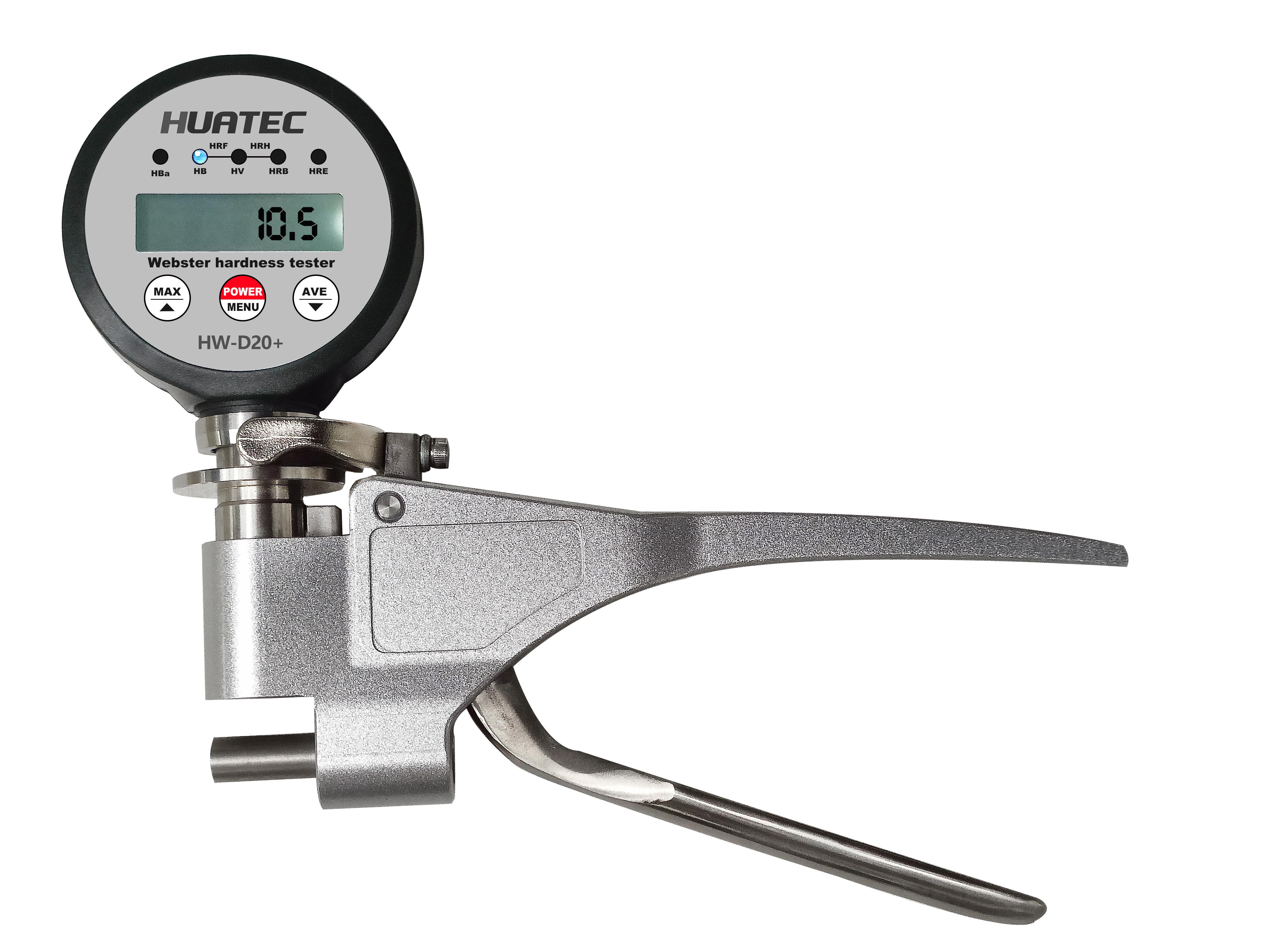

Digital Display Non-Destructive Testing Aluminum Alloy Wechsler Hardness Tester HW-D20+
Main Features
*Press needle part: new material, new process manufacturing of press needle, high hardness, long life, good interchangeability
*Handle part: forged material, surface anodized upper handle, beautiful, wear resistant, pollution resistant
*Hardness block: the standard aluminum hardness block is tested by the standard hardness machine
*High quality: fine parts processing, precision machine assembly, strict quality inspection
*Good stability: full degree point stability, correction point stability
*Easy conversion: wechsler hardness value can be converted into Vickers, Rockwell, Brinell and other hardness values.
Application
HW-D20+ Wechsler hardness tester is an instrument that can quickly test the hardness of aluminum alloy in the field
Wechsler hardness tester HW-D20+ is easy to use,one card can, hardness value directly read. Used for rapid detection hardness of aluminum alloy profiles,pipes, plates, aluminum workpieces and other soft metals.
It is especially suitable for fast and non-destructive testing of batch products at the production site, sales site or construction site item by item inspection
Specifications
| Testing range | 0~20HW |
| Accuracy | 0.5HW |
| Net weight | 625g |
| Host dimension | 220*160*30mm |
| Battery supply | 2x 1.5AAA battery |
| Operating condition | Temperature: 0ºC~50ºC,Humidity:<80%RH |
| Value conversion range | 25~110HRE, 58~131HV |

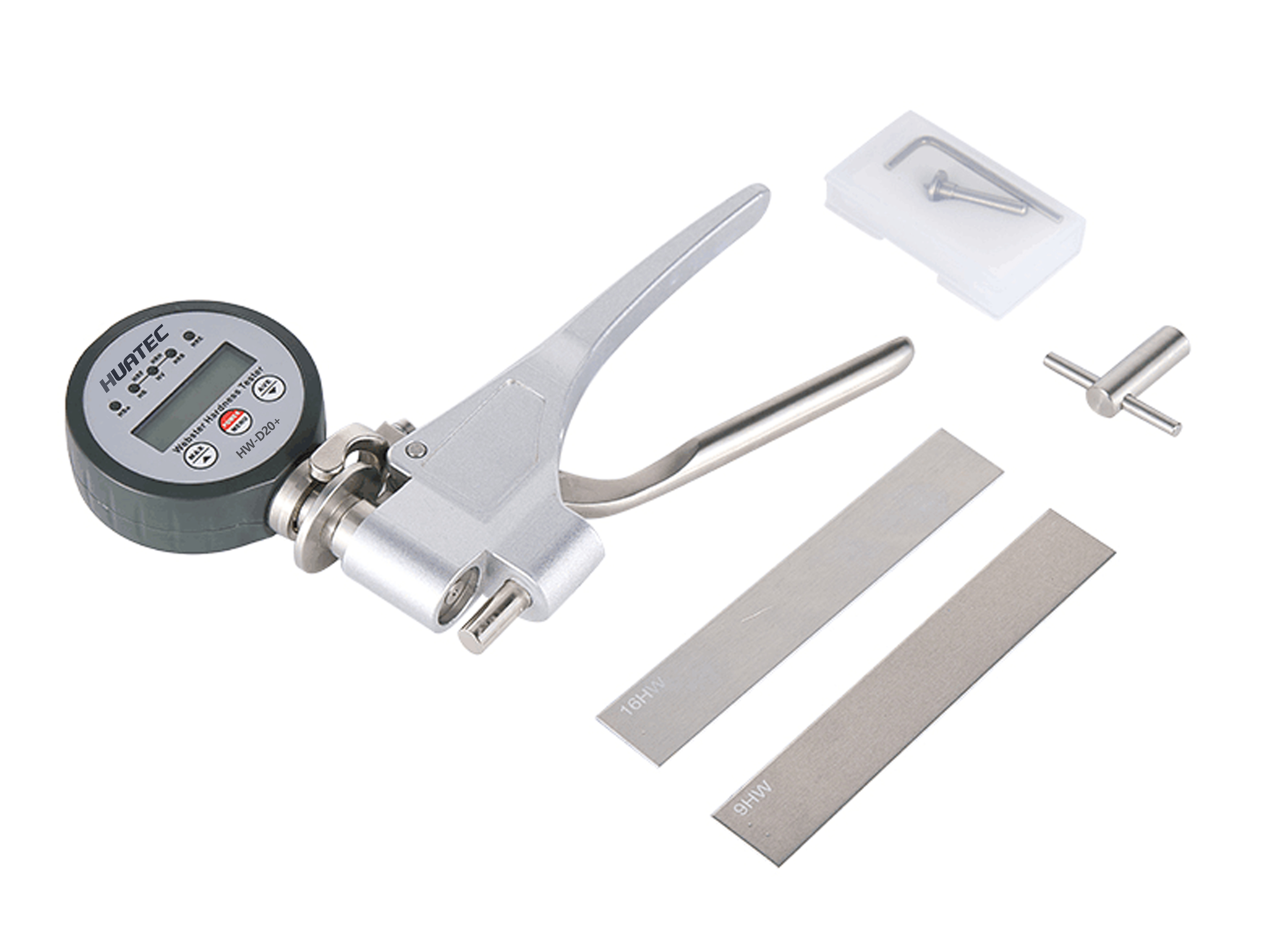

| Standard Accessories |
Standard wechsler HW-D20+ |
| Spare presser | |
| Special wrench | |
| Anvil seat cover | |
| Small screwdriver | |
| Hardness block | |
| Carrying Case | |
| Operation Manual | |
| Calibration Certificate | |
| Optional Accessories | Spare presser |
| Wechsler hardness block at various value |
